ServerApp Class Reference

Inheritance diagram for ServerApp:

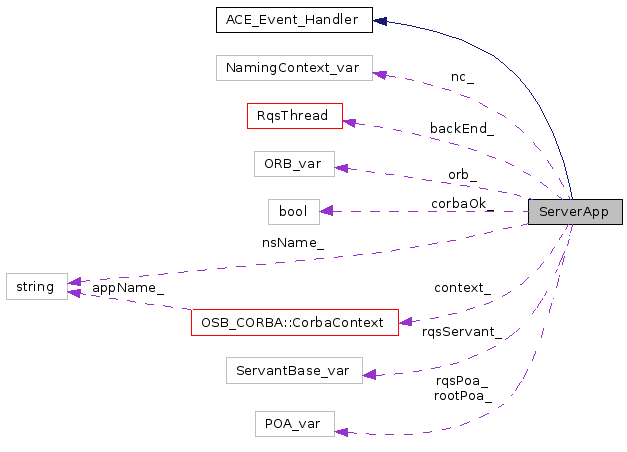

[legend]Collaboration diagram for ServerApp:

[legend]List of all members.

---

Detailed Description

RQS (request server) main application.

Definition at line 96 of file rqsapp.h.

Public Member Functions

• ServerApp (OSB_CORBA::CorbaContext &context)

  Constructor with context.


• bool init (int argc, char *const argv[])

  Initialize all CORBA objects.


• void creAppServant ()
• void run ()

  Run the application.


• void shutdown (bool waitCompletion)

  Shutdown the application.


• void destroy ()

  Destroy the CORBA objects.


Static Public Attributes

• static const std::string nsName_

  The name used for the naming service: "ReqServer".


Private Member Functions

• ServerApp (const ServerApp &)

  Prevent copying (until needed): not implemented.


• ServerApp & operator= (const ServerApp &)

  Prevent assignment (until needed): not implemented.


• void initOrb (int argc, char *const argv[])

  Initialize the CORBA ORB.


• void initPoa ()

  Initialize the POAs.


• void getNc ()

  Register with the naming service.


• int handle_signal (int signum, siginfo_t *, ucontext_t *)

  Handle signals.


Private Attributes

• OSB_CORBA::CorbaContext & context_

  Reference to the used context.


• RqsThread backEnd_

  Backend status request processor.


CORBA objects:

• bool corbaOk_

  Flag if the CORBA initialization was OK.


• CORBA::ORB_var orb_

  The CORBA ORB.


• PortableServer::POA_var rootPoa_

  The root POA.


• PortableServer::POA_var rqsPoa_

  The POA for rqsServant_.


• CosNaming::NamingContext_var nc_

  Pointer to the COS naming service.


• PortableServer::ServantBase_var rqsServant_

  The servant for IDL interface RequestServer.


---

Constructor & Destructor Documentation

ServerApp::ServerApp

(

OSB_CORBA::CorbaContext &

context

)

Constructor with context.

ServerApp::ServerApp

(

const ServerApp &

)

[private]

Prevent copying (until needed): not implemented.

---

Member Function Documentation

void ServerApp::creAppServant

(

)

void ServerApp::destroy

(

)

Destroy the CORBA objects.

void ServerApp::getNc

(

)

[private]

Register with the naming service.

int ServerApp::handle_signal	(	int	signum,
		siginfo_t *	,
		ucontext_t *
	)			[private]

Handle signals.

The following signals are caugth and handled:

• SIGUSR1: cycle log level from 1 to 4.
• SIGINT: normal shutdown (waits for ORB completion).
• SIGTERM: forces shutdown.

bool ServerApp::init	(	int	argc,
		char *const	argv[]
	)

Initialize all CORBA objects.

void ServerApp::initOrb	(	int	argc,
		char *const	argv[]
	)			[private]

Initialize the CORBA ORB.

void ServerApp::initPoa

(

)

[private]

Initialize the POAs.

ServerApp& ServerApp::operator=

(

const ServerApp &

)

[private]

Prevent assignment (until needed): not implemented.

void ServerApp::run

(

)

Run the application.

void ServerApp::shutdown

(

bool

waitCompletion

)

Shutdown the application.

---

Member Data Documentation

RqsThread ServerApp::backEnd_ [private]

Backend status request processor.

Definition at line 147 of file rqsapp.h.

OSB_CORBA::CorbaContext& ServerApp::context_ [private]

Reference to the used context.

Definition at line 144 of file rqsapp.h.

bool ServerApp::corbaOk_ [private]

Flag if the CORBA initialization was OK.

Definition at line 152 of file rqsapp.h.

CosNaming::NamingContext_var ServerApp::nc_ [private]

Pointer to the COS naming service.

Definition at line 160 of file rqsapp.h.

const std::string ServerApp::nsName_ [static]

The name used for the naming service: "ReqServer".

Definition at line 99 of file rqsapp.h.

CORBA::ORB_var ServerApp::orb_ [private]

The CORBA ORB.

Definition at line 154 of file rqsapp.h.

PortableServer::POA_var ServerApp::rootPoa_ [private]

The root POA.

Definition at line 156 of file rqsapp.h.

PortableServer::POA_var ServerApp::rqsPoa_ [private]

The POA for rqsServant_.

Definition at line 158 of file rqsapp.h.

PortableServer::ServantBase_var ServerApp::rqsServant_ [private]

The servant for IDL interface RequestServer.

Definition at line 162 of file rqsapp.h.

---

The documentation for this class was generated from the following file:

• rqsapp.h

---
