OSB_GUI::AdminWidget Class Reference

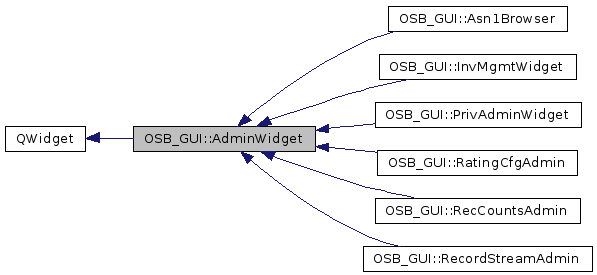

Inheritance diagram for OSB_GUI::AdminWidget:

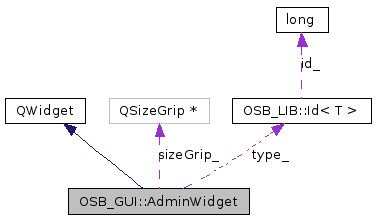

[legend]Collaboration diagram for OSB_GUI::AdminWidget:

[legend]List of all members.

---

Detailed Description

Interface of an OSB administration widget.

Note:

The class inherits from QWidget, but QT designer does not allow to use custom widgets as base.
As a work-around use Qt to design the widget, generate the header and implementation file and finally cut&paste into the definition and implementation of the administration widget.

Definition at line 83 of file adminwidget.h.

Public Slots

• virtual void languageChange ()=0

  Process a language change.


Signals

• void statusMessage (const QString &msg="", int ms=-1)

  Request to set the status bar message.


Public Member Functions

• AdminWidget (AdminType type, QWidget *parent, const char *name=0, WFlags flags=0)

  Constructor with type of administraction widget and Qt arguments.


• virtual ~AdminWidget ()

  Empty virtual destructor.


• virtual void activated (bool minimized)

  Administration window activated or show status changed.


• virtual std::string menuTitle () const =0

  Title of the administration wiget's menu.


• virtual QPopupMenu * menu ()=0

  The popup menu of the administration widget.


• virtual void clearMenuAccels ()=0

  Clear any accelerators of the administration widget's popup menu.


• AdminType type () const

  Get the type of the administration widget.


Protected Member Functions

• virtual bool eventFilter (QObject *o, QEvent *e)

  Set margin of layout.


• virtual void resizeEvent (QResizeEvent *)

  Set position of size grip.


Private Attributes

• AdminType type_

  The type of the administration widget.


• QSizeGrip * sizeGrip_

  Size grip at lower right corner.


---

Constructor & Destructor Documentation

OSB_GUI::AdminWidget::AdminWidget	(	AdminType	type,
		QWidget *	parent,
		const char *	name = 0,
		WFlags	flags = 0
	)

Constructor with type of administraction widget and Qt arguments.

virtual OSB_GUI::AdminWidget::~AdminWidget

(

)

[virtual]

Empty virtual destructor.

---

Member Function Documentation

virtual void OSB_GUI::AdminWidget::activated

(

bool

minimized

)

[virtual]

Administration window activated or show status changed.

Parameters:

minimized

Flag if the window is minimized.

This function is called
if the widget becomes the active window of the workspace
or if widget is minimized, restored or maximized.

This default implementation emits statusMessage() to clear the main window's status bar.

Reimplemented in OSB_GUI::RecCountsAdmin.

virtual void OSB_GUI::AdminWidget::clearMenuAccels

(

)

[pure virtual]

Clear any accelerators of the administration widget's popup menu.

This function is needed because any accelerators of the adminstratiion widget's menu are active even if the popup menu is not in the menu bar of the main window.

Implemented in OSB_GUI::Asn1Browser, OSB_GUI::InvMgmtWidget, OSB_GUI::PrivAdminWidget, OSB_GUI::RatingCfgAdmin, OSB_GUI::RecCountsAdmin, and OSB_GUI::RecordStreamAdmin.

virtual bool OSB_GUI::AdminWidget::eventFilter	(	QObject *	o,
		QEvent *	e
	)			[protected, virtual]

Set margin of layout.

virtual void OSB_GUI::AdminWidget::languageChange

(

)

[pure virtual, slot]

Process a language change.

Implemented in OSB_GUI::Asn1Browser, OSB_GUI::InvMgmtWidget, OSB_GUI::PrivAdminWidget, OSB_GUI::RatingCfgAdmin, OSB_GUI::RecCountsAdmin, and OSB_GUI::RecordStreamAdmin.

virtual QPopupMenu* OSB_GUI::AdminWidget::menu

(

)

[pure virtual]

The popup menu of the administration widget.

If the administration window does not use a menu the function returns 0.
Else the admin widget should install the accelerators for the popup menu.

See also:

clearMenuAccels()

Implemented in OSB_GUI::Asn1Browser, OSB_GUI::InvMgmtWidget, OSB_GUI::PrivAdminWidget, OSB_GUI::RatingCfgAdmin, OSB_GUI::RecCountsAdmin, and OSB_GUI::RecordStreamAdmin.

virtual std::string OSB_GUI::AdminWidget::menuTitle

(

)

const [pure virtual]

Title of the administration wiget's menu.

The returned string is empty if does not support a menu, i.e., menu() returns 0.

Implemented in OSB_GUI::Asn1Browser, OSB_GUI::InvMgmtWidget, OSB_GUI::PrivAdminWidget, OSB_GUI::RatingCfgAdmin, OSB_GUI::RecCountsAdmin, and OSB_GUI::RecordStreamAdmin.

virtual void OSB_GUI::AdminWidget::resizeEvent

(

QResizeEvent *

)

[protected, virtual]

Set position of size grip.

void OSB_GUI::AdminWidget::statusMessage	(	const QString &	msg = "",
		int	ms = -1
	)			[signal]

Request to set the status bar message.

AdminType OSB_GUI::AdminWidget::type

(

)

const

Get the type of the administration widget.

---

Member Data Documentation

QSizeGrip* OSB_GUI::AdminWidget::sizeGrip_ [private]

Size grip at lower right corner.

Definition at line 167 of file adminwidget.h.

AdminType OSB_GUI::AdminWidget::type_ [private]

The type of the administration widget.

Definition at line 165 of file adminwidget.h.

---

The documentation for this class was generated from the following file:

• adminwidget.h

---
