OSB_GUI::DcInfo Class Reference

Inheritance diagram for OSB_GUI::DcInfo:

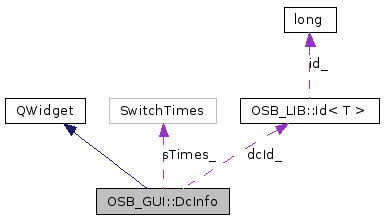

[legend]Collaboration diagram for OSB_GUI::DcInfo:

[legend]List of all members.

---

Detailed Description

Widget to show the switch times for one day class.

Definition at line 496 of file tpscfg.h.

Signals

• void sigSwitchTime (const SwitchTimeEvent &event)

  Signal time under mouse pointer.


Public Member Functions

• DcInfo (const DcId &dcId, QWidget *parent, const char *name="dcInfo_", WFlags fl=0)

  Constructor with day class id and Qt standard arguments.


• const DcId & dcId () const

  Get id of day class.


• void getConfig (OSB_LIB::TpsConfig *config) const

  Get the configuration.


• void add (const OSB_LIB::TariffPeriod &tp, const OSB_LIB::Time &stime)

  Add a switch time.


• void remove (const OSB_LIB::Time &stime)

  Remove a switch time.


Private Types

• typedef OSB_LIB::Id< OSB_LIB::DayClass > DcId

  Short-hand for a day class id.


• typedef OSB_LIB::Id< OSB_LIB::TariffPeriod > TpId

  Short-hand for a tariff period id.


• typedef std::pair< TpId, QColor > StInfo

  Information about a switch time.


• typedef std::map< OSB_LIB::Time,
  StInfo > SwitchTimes

  Container to hold the switch times.


Private Member Functions

• void setEvent (SwitchTimeEvent *event)

  Populate a switch time event.


• void mouseMoveEvent (QMouseEvent *e)

  Handle the mouse position.


• void mousePressEvent (QMouseEvent *e)

  Handle mouse clicks.


• void mouseEvent (QMouseEvent *e)

  Common handling of mouse move and press events.


• void paintEvent (QPaintEvent *)

  Paint the widget.


• void showHours (QPainter &painter, const OSB_LIB::Time &start, const OSB_LIB::Time &end)

  Paint a time range.


• OSB_LIB::Time x2time (int x)

  Convert x-coordinate to time.


• int time2x (const OSB_LIB::Time &time, bool isEnd=false)

  Convert time to x-coordinate.


Private Attributes

• DcId dcId_

  Object id of the day class.


• SwitchTimes sTimes_

  Switch times for the day class.


---

Member Typedef Documentation

typedef OSB_LIB::Id<OSB_LIB::DayClass> OSB_GUI::DcInfo::DcId [private]

Short-hand for a day class id.

Definition at line 500 of file tpscfg.h.

typedef std::pair<TpId, QColor> OSB_GUI::DcInfo::StInfo [private]

Information about a switch time.

This is the id of the tariff period and its color.

Definition at line 508 of file tpscfg.h.

typedef std::map<OSB_LIB::Time, StInfo> OSB_GUI::DcInfo::SwitchTimes [private]

Container to hold the switch times.

For each day class the switch time must be unique and can therefore be used as key to the map.

Note the end time of a tariff period interval is implicitely determined by the next entry in the map or 24:00:00.

Definition at line 518 of file tpscfg.h.

typedef OSB_LIB::Id<OSB_LIB::TariffPeriod> OSB_GUI::DcInfo::TpId [private]

Short-hand for a tariff period id.

Definition at line 502 of file tpscfg.h.

---

Constructor & Destructor Documentation

OSB_GUI::DcInfo::DcInfo	(	const DcId &	dcId,
		QWidget *	parent,
		const char *	name = "dcInfo_",
		WFlags	fl = 0
	)			[explicit]

Constructor with day class id and Qt standard arguments.

---

Member Function Documentation

void OSB_GUI::DcInfo::add	(	const OSB_LIB::TariffPeriod &	tp,
		const OSB_LIB::Time &	stime
	)

Add a switch time.

Parameters:

	tp	Tariff period to add.
	stime	Switch time to add.

const DcId& OSB_GUI::DcInfo::dcId

(

)

const

Get id of day class.

void OSB_GUI::DcInfo::getConfig

(

OSB_LIB::TpsConfig *

config

)

const

Get the configuration.

void OSB_GUI::DcInfo::mouseEvent

(

QMouseEvent *

e

)

[private]

Common handling of mouse move and press events.

Emits sigSwitchTime() if the mouse x-position is inside the displayed hours.

void OSB_GUI::DcInfo::mouseMoveEvent

(

QMouseEvent *

e

)

[private]

Handle the mouse position.

Calls mouseEvent() if the left button is pressed.

void OSB_GUI::DcInfo::mousePressEvent

(

QMouseEvent *

e

)

[private]

Handle mouse clicks.

Calls mouseEvent() if the left button was pressed.

void OSB_GUI::DcInfo::paintEvent

(

QPaintEvent *

)

[private]

Paint the widget.

void OSB_GUI::DcInfo::remove

(

const OSB_LIB::Time &

stime

)

Remove a switch time.

Parameters:

stime

Switch time to remove.

void OSB_GUI::DcInfo::setEvent

(

SwitchTimeEvent *

event

)

[private]

Populate a switch time event.

Parameters:

event

Event to populate, its selected time must be set.

void OSB_GUI::DcInfo::showHours	(	QPainter &	painter,
		const OSB_LIB::Time &	start,
		const OSB_LIB::Time &	end
	)			[private]

Paint a time range.

Parameters:

	painter	Painter to use, its pen and brush must be set.
	start	Start time.
	end	End time.

void OSB_GUI::DcInfo::sigSwitchTime

(

const SwitchTimeEvent &

event

)

[signal]

Signal time under mouse pointer.

Sent on mouse clicks or if the mouse is moved while a button is down.

Parameters:

event

Information about the selected time.

int OSB_GUI::DcInfo::time2x	(	const OSB_LIB::Time &	time,
		bool	isEnd = false
	)			[private]

Convert time to x-coordinate.

Parameters:

	time	Time to convert.
	isEnd	Flag if this is an end time. This relevant if minutes and seconds are 0: do we need the end of the hour or the start?

OSB_LIB::Time OSB_GUI::DcInfo::x2time

(

int

x

)

[private]

Convert x-coordinate to time.

Each pixel represents a few minutes: we return the start time of this interval.

---

Member Data Documentation

DcId OSB_GUI::DcInfo::dcId_ [private]

Object id of the day class.

Definition at line 624 of file tpscfg.h.

SwitchTimes OSB_GUI::DcInfo::sTimes_ [private]

Switch times for the day class.

Definition at line 626 of file tpscfg.h.

---

The documentation for this class was generated from the following file:

• tpscfg.h

---
