OSB_GUI::LvTzConfig Class Reference

Inheritance diagram for OSB_GUI::LvTzConfig:

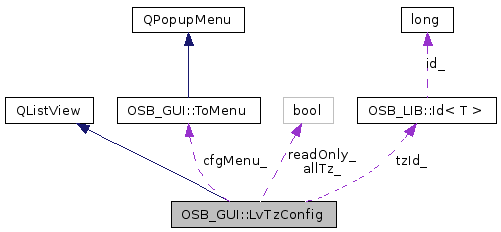

[legend]Collaboration diagram for OSB_GUI::LvTzConfig:

Detailed Description

List view for the configuration of one tariff zone.

Definition at line 64 of file tzcfgview.h.

colTz = 0
Tariff zone.
colOrigin = 1
Origin connection point.
colDest = 2
Destination connection point.
colStatus = 3
Status of configuration.
colStart = 4
Release timestamp of configuration.
colEnd = 5
Expiry timestamp of configuration.
enum Col {
colTz = 0, colOrigin = 1, colDest = 2, colStatus = 3,
colStart = 4, colEnd = 5
}
Contents of columns. More...

LvTzConfig (QWidget *parent=0, const char *name="lvTzConfig_", WFlags flags=0)
Constructor with Qt arguments.
void languageChange ()
Process a language change.
void display (const OSB_LIB::TariffZone::Oid &tzId, bool allTz, bool readOnly)
Populate for one or all tariff zones.
ToMenu * cfgMenu ()
Access to configuration menu.

void setupMenu ()
Configure the configuration menu.
void showCfgMenu (QListViewItem *item, const QPoint &pos, int col)
Execute the configuration menu.
void commandEvent (ToMenuCmd cmd)
Process commands from tariff object menu.

Contents of columns.

Enumerator:

colTz	Tariff zone.
colOrigin	Origin connection point.
colDest	Destination connection point.
colStatus	Status of configuration.
colStart	Release timestamp of configuration.
colEnd	Expiry timestamp of configuration.

Definition at line 68 of file tzcfgview.h.

OSB_GUI::LvTzConfig::LvTzConfig	(	QWidget *	parent = `0`,
		const char *	name = `"lvTzConfig_"`,
		WFlags	flags = `0`
	)			`[explicit]`

Constructor with Qt arguments.

void OSB_GUI::LvTzConfig::add ( const OSB_LIB::TzConfig & cfg ) [private]

Add a tariff zone configuration.

ToMenu* OSB_GUI::LvTzConfig::cfgMenu ( )

Access to configuration menu.

void OSB_GUI::LvTzConfig::commandEvent ( ToMenuCmd cmd ) [private, slot]

Process commands from tariff object menu.

void OSB_GUI::LvTzConfig::display	(	const OSB_LIB::TariffZone::Oid &	tzId,
		bool	allTz,
		bool	readOnly
	)

Populate for one or all tariff zones.

Parameters:

	tzId	Id of the tariff zone for which to show the configuration, ignored if allTz is true.
	allTz	Flag to show the configuration of all tariff zones.
	readOnly	Flag not to allow the configuration of the tariff zones.
