OSB_GUI::RangeLineEdit< T, Limits > Class Template Reference

Inheritance diagram for OSB_GUI::RangeLineEdit< T, Limits >:

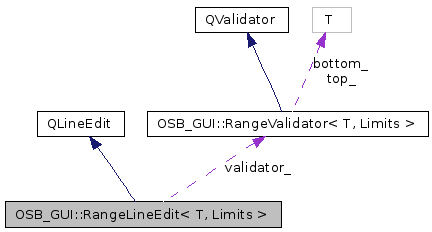

[legend]Collaboration diagram for OSB_GUI::RangeLineEdit< T, Limits >:

[legend]List of all members.

---

Detailed Description

template<typename T, typename Limits = std::numeric_limits<T>>
class OSB_GUI::RangeLineEdit< T, Limits >

QLineEdit with range check.

Parameters:

	T	Supported datatype.
	Limits	Defines the limits of T. See RangeValidator for details.

Almost all member functions wrap to validator_.

Note:

No destructor is needed: validator_ inherits from QObject and is automatically destroyed.

Definition at line 168 of file osblineedits.h.

Public Member Functions

• RangeLineEdit (QWidget *parent, const char *name="podLineEdit_")

  Constructor with QT arguments.


• RangeLineEdit (const T &bottom, const T &top, QWidget *parent, const char *name="podLineEdit_")

  Constructor with range and QT arguments.


• const T & bottom () const

  Get lower boundary (included).


• const T & top () const

  Get upper boundary (included).


• T value (bool *ok=0) const

  Get the value.


• void setValue (const T &t)

  Set the value.


• void setBottom (const T &bottom)

  Set lower boundary (included).


• void setTop (const T &top)

  Set upper boundary (included).


• void setRange (const T &bottom, const T &top)

  Set range (bottom and top included).


Private Types

• typedef RangeValidator< T,
  Limits > Validator

  Define the validator type of the line edit.


Private Member Functions

• RangeLineEdit (const RangeLineEdit &)

  Prevent copying: not implemented.


• RangeLineEdit & operator= (const RangeLineEdit &)

  Prevent assignment: not implemented.


Private Attributes

• Validator * validator_

  Validator of the line edit.


---

Member Typedef Documentation

template<typename T, typename Limits = std::numeric_limits<T>>

typedef RangeValidator<T, Limits> OSB_GUI::RangeLineEdit< T, Limits >::Validator [private]

Define the validator type of the line edit.

Definition at line 170 of file osblineedits.h.

---

Constructor & Destructor Documentation

template<typename T, typename Limits = std::numeric_limits<T>>

OSB_GUI::RangeLineEdit< T, Limits >::RangeLineEdit	(	QWidget *	parent,
		const char *	name = "podLineEdit_"
	)			[inline, explicit]

Constructor with QT arguments.

Definition at line 173 of file osblineedits.h.

template<typename T, typename Limits = std::numeric_limits<T>>

OSB_GUI::RangeLineEdit< T, Limits >::RangeLineEdit	(	const T &	bottom,
		const T &	top,
		QWidget *	parent,
		const char *	name = "podLineEdit_"
	)			[inline]

Constructor with range and QT arguments.

Definition at line 182 of file osblineedits.h.

template<typename T, typename Limits = std::numeric_limits<T>>

OSB_GUI::RangeLineEdit< T, Limits >::RangeLineEdit

(

const RangeLineEdit< T, Limits > &

)

[private]

Prevent copying: not implemented.

---

Member Function Documentation

template<typename T, typename Limits = std::numeric_limits<T>>

const T& OSB_GUI::RangeLineEdit< T, Limits >::bottom

(

)

const [inline]

Get lower boundary (included).

Definition at line 198 of file osblineedits.h.

template<typename T, typename Limits = std::numeric_limits<T>>

RangeLineEdit& OSB_GUI::RangeLineEdit< T, Limits >::operator=

(

const RangeLineEdit< T, Limits > &

)

[private]

Prevent assignment: not implemented.

template<typename T, typename Limits = std::numeric_limits<T>>

void OSB_GUI::RangeLineEdit< T, Limits >::setBottom

(

const T &

bottom

)

[inline]

Set lower boundary (included).

Definition at line 231 of file osblineedits.h.

template<typename T, typename Limits = std::numeric_limits<T>>

void OSB_GUI::RangeLineEdit< T, Limits >::setRange	(	const T &	bottom,
		const T &	top
	)			[inline]

Set range (bottom and top included).

Definition at line 241 of file osblineedits.h.

template<typename T, typename Limits = std::numeric_limits<T>>

void OSB_GUI::RangeLineEdit< T, Limits >::setTop

(

const T &

top

)

[inline]

Set upper boundary (included).

Definition at line 236 of file osblineedits.h.

template<typename T, typename Limits = std::numeric_limits<T>>

void OSB_GUI::RangeLineEdit< T, Limits >::setValue

(

const T &

t

)

[inline]

Set the value.

Definition at line 224 of file osblineedits.h.

template<typename T, typename Limits = std::numeric_limits<T>>

const T& OSB_GUI::RangeLineEdit< T, Limits >::top

(

)

const [inline]

Get upper boundary (included).

Definition at line 203 of file osblineedits.h.

template<typename T, typename Limits = std::numeric_limits<T>>

T OSB_GUI::RangeLineEdit< T, Limits >::value

(

bool *

ok = 0

)

const [inline]

Get the value.

Parameters:

ok

If not 0: set to true if the text is valid, else false.

Returns:

The value that corresponds to the line edit's text. It is default constructed if the text is not valid.

Definition at line 215 of file osblineedits.h.

---

Member Data Documentation

template<typename T, typename Limits = std::numeric_limits<T>>

Validator* OSB_GUI::RangeLineEdit< T, Limits >::validator_ [private]

Validator of the line edit.

Definition at line 247 of file osblineedits.h.

Referenced by OSB_GUI::RangeLineEdit< size_t >::bottom(), OSB_GUI::RangeLineEdit< size_t >::RangeLineEdit(), OSB_GUI::RangeLineEdit< size_t >::setBottom(), OSB_GUI::RangeLineEdit< size_t >::setRange(), OSB_GUI::RangeLineEdit< size_t >::setTop(), OSB_GUI::RangeLineEdit< size_t >::top(), and OSB_GUI::RangeLineEdit< size_t >::value().

---

The documentation for this class was generated from the following file:

• osblineedits.h

---
