OSB_GUI::SelectCp Class Reference

Inheritance diagram for OSB_GUI::SelectCp:

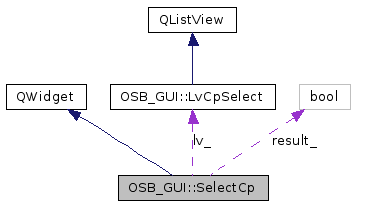

[legend]Collaboration diagram for OSB_GUI::SelectCp:

[legend]List of all members.

---

Detailed Description

Popup widget to select a connection point.

Definition at line 132 of file cputils.h.

Signals

• void sigClosed (bool result)

  Signal sent if widget is closed.


Public Member Functions

• SelectCp (QWidget *parent, const char *name="selectCp_", WFlags flags=0)

  Constructor with Qt arguments.


• void popup ()

  Show the widget as popup.


• bool result () const

  Get the popup result.


Wrappers to the connection point listview:

• OSB_LIB::Id< OSB_LIB::ConnectionPt > cpId () const

  Object id of selected CP, it might not be set.


• const std::string cpName () const

  Get name of connection point.


• void setCpId (const OSB_LIB::Id< OSB_LIB::ConnectionPt > &cpId)

  Set the selected CP.


• void populate ()

  Populate the listview.


Private Member Functions

• void closeEvent (QCloseEvent *event)

  Handle close events: signals sigClosed().


• void keyPressEvent (QKeyEvent *event)

  Handle pressed keys.


• void resizeEvent (QResizeEvent *event)

  Handle changes in size.


Private Attributes

• LvCpSelect * lv_

  The connection point list view.


• bool result_

  Result indicator.


---

Constructor & Destructor Documentation

OSB_GUI::SelectCp::SelectCp	(	QWidget *	parent,
		const char *	name = "selectCp_",
		WFlags	flags = 0
	)			[explicit]

Constructor with Qt arguments.

Note:

flags must contain Qt::WType_Popup for popup() to work.

---

Member Function Documentation

void OSB_GUI::SelectCp::closeEvent

(

QCloseEvent *

event

)

[private]

Handle close events: signals sigClosed().

OSB_LIB::Id<OSB_LIB::ConnectionPt> OSB_GUI::SelectCp::cpId

(

)

const

Object id of selected CP, it might not be set.

const std::string OSB_GUI::SelectCp::cpName

(

)

const

Get name of connection point.

void OSB_GUI::SelectCp::keyPressEvent

(

QKeyEvent *

event

)

[private]

Handle pressed keys.

Closes the widget for Tab or Shift-Tab or Esc.
For the latter result_ is set to false.

void OSB_GUI::SelectCp::populate

(

)

Populate the listview.

Uses OSB_LIB::CpTree from the tariff catalogue to populate the listview with the root connection points.

void OSB_GUI::SelectCp::popup

(

)

Show the widget as popup.

Note:

The widget must have been created with the flag Qt::WType_Popup.

void OSB_GUI::SelectCp::resizeEvent

(

QResizeEvent *

event

)

[private]

Handle changes in size.

Sets the width of lv_ to own width.

bool OSB_GUI::SelectCp::result

(

)

const

Get the popup result.

Returns:

false if the escape key was pressed, else true.

void OSB_GUI::SelectCp::setCpId

(

const OSB_LIB::Id< OSB_LIB::ConnectionPt > &

cpId

)

Set the selected CP.

Parameters:

cpId

Connection point to select. If not set, the selection is cleared.

void OSB_GUI::SelectCp::sigClosed

(

bool

result

)

[signal]

Signal sent if widget is closed.

Parameters:

result

false if the popup was escaped, else true.

---

Member Data Documentation

LvCpSelect* OSB_GUI::SelectCp::lv_ [private]

The connection point list view.

Definition at line 208 of file cputils.h.

bool OSB_GUI::SelectCp::result_ [private]

Result indicator.

Definition at line 210 of file cputils.h.

---

The documentation for this class was generated from the following file:

• cputils.h

---
