OSB_GUI::ToGroup Class Reference

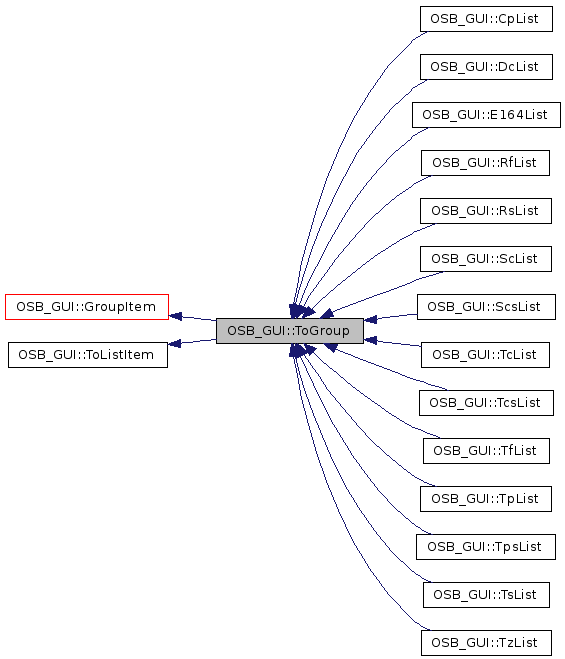

Inheritance diagram for OSB_GUI::ToGroup:

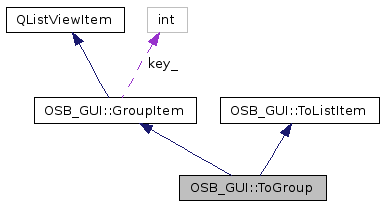

[legend]Collaboration diagram for OSB_GUI::ToGroup:

[legend]List of all members.

---

Detailed Description

Abstract base for groups of tariff objects.

The position of a group with a list view is stable, i.e. it does not change when the sorting of the list view changes.

Definition at line 164 of file tolists.h.

Public Member Functions

• ToGroup (QListView *parent, int key, const QString &label)

  Constructor with parent, sort key and label.


• ToGroup (QListViewItem *parent, int key, const QString &label)

  Constructor with parent, sort key and label.


• ToGroup (QListViewItem *parent)

  Constructor with parent.


• virtual void newObject ()=0

  Create a new tariff object.


• virtual void populate ()=0

  Show the tariff objects.


• virtual bool setupMenu (ToMenu &toMenu)

  Configure the tariff object menu.


• virtual bool commandEvent (ToMenuCmd cmd)

  Execute command from tariff object menu.


Protected Member Functions

• virtual void setOpen (bool open)

  Open or close the item.


---

Constructor & Destructor Documentation

OSB_GUI::ToGroup::ToGroup	(	QListView *	parent,
		int	key,
		const QString &	label
	)

Constructor with parent, sort key and label.

OSB_GUI::ToGroup::ToGroup	(	QListViewItem *	parent,
		int	key,
		const QString &	label
	)

Constructor with parent, sort key and label.

OSB_GUI::ToGroup::ToGroup

(

QListViewItem *

parent

)

[explicit]

Constructor with parent.

---

Member Function Documentation

virtual bool OSB_GUI::ToGroup::commandEvent

(

ToMenuCmd

cmd

)

[virtual]

Execute command from tariff object menu.

Parameters:

cmd

Command to execute.

Returns:

true if the command can be executed, else false.

The default implementation handles the following commands:

• ToMenu::cmdNewObject calls newObject().

Implements OSB_GUI::ToListItem.

Reimplemented in OSB_GUI::CpList, and OSB_GUI::E164List.

virtual void OSB_GUI::ToGroup::newObject

(

)

[pure virtual]

Create a new tariff object.

Implemented in OSB_GUI::CpList, OSB_GUI::E164List, OSB_GUI::TzList, OSB_GUI::RsList, OSB_GUI::ScList, OSB_GUI::ScsList, OSB_GUI::TcList, OSB_GUI::TcsList, OSB_GUI::TfList, OSB_GUI::RfList, OSB_GUI::DcList, OSB_GUI::TpList, OSB_GUI::TpsList, and OSB_GUI::TsList.

virtual void OSB_GUI::ToGroup::populate

(

)

[pure virtual]

Show the tariff objects.

This member is called from setOpen().

Implemented in OSB_GUI::CpList, OSB_GUI::E164List, OSB_GUI::TzList, OSB_GUI::RsList, OSB_GUI::ScList, OSB_GUI::ScsList, OSB_GUI::TcList, OSB_GUI::TcsList, OSB_GUI::TfList, OSB_GUI::RfList, OSB_GUI::DcList, OSB_GUI::TpList, OSB_GUI::TpsList, and OSB_GUI::TsList.

virtual void OSB_GUI::ToGroup::setOpen

(

bool

open

)

[protected, virtual]

Open or close the item.

Deletes all children of the item and calls populate() if open is true.

virtual bool OSB_GUI::ToGroup::setupMenu

(

ToMenu &

toMenu

)

[virtual]

Configure the tariff object menu.

Parameters:

toMenu

Tariff object menu to configure.

Removes all entries from toMenu and adds ToMenu::cmdNewObject.

Implements OSB_GUI::ToListItem.

Reimplemented in OSB_GUI::CpList, and OSB_GUI::E164List.

---

The documentation for this class was generated from the following file:

• tolists.h

---
