OSB_GUI::ValueCombo< Value > Class Template Reference

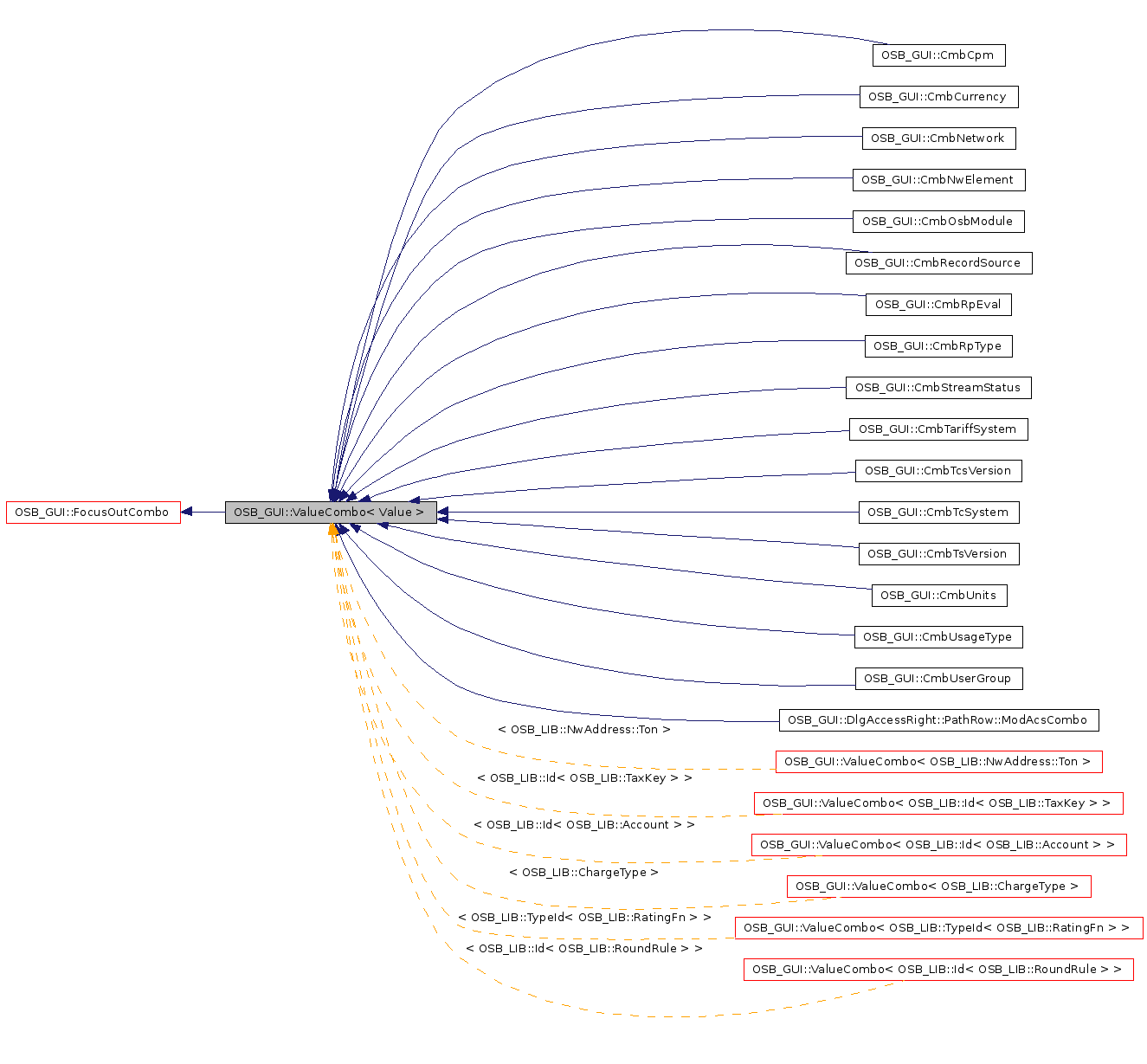

Inheritance diagram for OSB_GUI::ValueCombo< Value >:

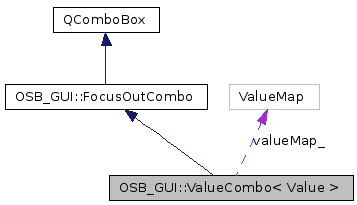

[legend]Collaboration diagram for OSB_GUI::ValueCombo< Value >:

[legend]List of all members.

---

Detailed Description

template<typename Value>
class OSB_GUI::ValueCombo< Value >

Template for combo boxes.

It provides the mapping between the current item of the combobox and Value.

Parameters:

Value

This is the value that is mapped against the index.

Definition at line 120 of file osbcombos.h.

Public Member Functions

• ValueCombo (QWidget *parent, const char *name)

  Constructor with Qt arguments.


• ~ValueCombo ()=0

  Empty virtual destructor.


• int addValue (const Value &value, const std::string &text)

  Add a value to the combo.


• int addValue (const Value &value, const QPixmap &pixmap, const std::string &text)

  Add a value to the combo.


• int setText (const Value &value, const std::string &text)

  Change the text for a value.


• Value getValue () const

  Get the selected value.


• Value getValue (int index) const

  Get value at an index.


• int getIndex (const Value &value) const

  Get the index of a value.


• int select (const Value &value)

  Set the selected value.


• void clear ()

  Remove all entries from the combo box.


Protected Member Functions

• void clearValueMap ()

  Clear all entries in the value map.


Private Types

• typedef std::vector< Value > ValueMap

  Container for mapping of index versus value.


• typedef ValueMap::size_type Size

  Short-hand for the size-type of the value map.


Private Attributes

• ValueMap valueMap_

  Map index <-> Value.


---

Member Typedef Documentation

template<typename Value>

typedef ValueMap::size_type OSB_GUI::ValueCombo< Value >::Size [private]

Short-hand for the size-type of the value map.

Definition at line 208 of file osbcombos.h.

template<typename Value>

typedef std::vector<Value> OSB_GUI::ValueCombo< Value >::ValueMap [private]

Container for mapping of index versus value.

Definition at line 206 of file osbcombos.h.

---

Constructor & Destructor Documentation

template<typename Value>

OSB_GUI::ValueCombo< Value >::ValueCombo	(	QWidget *	parent,
		const char *	name
	)

Constructor with Qt arguments.

Definition at line 269 of file osbcombos.h.

template<typename Value>

OSB_GUI::ValueCombo< Value >::~ValueCombo

(

)

[pure virtual]

Empty virtual destructor.

Definition at line 278 of file osbcombos.h.

---

Member Function Documentation

template<typename Value>

int OSB_GUI::ValueCombo< Value >::addValue	(	const Value &	value,
		const QPixmap &	pixmap,
		const std::string &	text
	)

Add a value to the combo.

Parameters:

	value	Value to add.
	pixmap	Text for value.
	text	Text for value.

Returns:

The index of the added value.

Definition at line 346 of file osbcombos.h.

References OSB_GUI::ValueCombo< Value >::valueMap_.

template<typename Value>

int OSB_GUI::ValueCombo< Value >::addValue	(	const Value &	value,
		const std::string &	text
	)

Add a value to the combo.

Parameters:

	value	Value to add.
	text	Text for value.

Returns:

The index of the added value.

Definition at line 334 of file osbcombos.h.

References OSB_GUI::ValueCombo< Value >::valueMap_.

template<typename Value>

void OSB_GUI::ValueCombo< Value >::clear

(

)

Remove all entries from the combo box.

Calls QComboBox::clear() and clearValueMap().

Attention:

This overrides the non-virtual (Qt?) method of the base class.

Definition at line 321 of file osbcombos.h.

References OSB_GUI::ValueCombo< Value >::clearValueMap().

template<typename Value>

void OSB_GUI::ValueCombo< Value >::clearValueMap

(

)

[protected]

Clear all entries in the value map.

Definition at line 328 of file osbcombos.h.

References OSB_GUI::ValueCombo< Value >::valueMap_.

Referenced by OSB_GUI::ValueCombo< Value >::clear().

template<typename Value>

int OSB_GUI::ValueCombo< Value >::getIndex

(

const Value &

value

)

const

Get the index of a value.

Returns:

-1 if value can not be found.

Definition at line 300 of file osbcombos.h.

References OSB_GUI::ValueCombo< Value >::valueMap_.

Referenced by OSB_GUI::ValueCombo< Value >::select(), and OSB_GUI::ValueCombo< Value >::setText().

template<typename Value>

Value OSB_GUI::ValueCombo< Value >::getValue

(

int

index

)

const

Get value at an index.

Returns:

valueMap_[index] or Value() if the index is not valid.

Definition at line 284 of file osbcombos.h.

References OSB_GUI::ValueCombo< Value >::valueMap_.

template<typename Value>

Value OSB_GUI::ValueCombo< Value >::getValue

(

)

const

Get the selected value.

Gets the index for the current item and returns the value from valueMap_ or Value() if the index is not valid.

Definition at line 293 of file osbcombos.h.

template<typename Value>

int OSB_GUI::ValueCombo< Value >::select

(

const Value &

value

)

Set the selected value.

Parameters:

value

Value to select.

Returns:

The index of the selected item.

Definition at line 313 of file osbcombos.h.

References OSB_GUI::ValueCombo< Value >::getIndex().

template<typename Value>

int OSB_GUI::ValueCombo< Value >::setText	(	const Value &	value,
		const std::string &	text
	)

Change the text for a value.

Parameters:

	value	Value to change.
	text	Text for value.

Returns:

The index of the changed value.

Definition at line 359 of file osbcombos.h.

References OSB_GUI::ValueCombo< Value >::getIndex().

---

Member Data Documentation

template<typename Value>

ValueMap OSB_GUI::ValueCombo< Value >::valueMap_ [private]

Map index <-> Value.

Definition at line 211 of file osbcombos.h.

Referenced by OSB_GUI::ValueCombo< Value >::addValue(), OSB_GUI::ValueCombo< Value >::clearValueMap(), OSB_GUI::ValueCombo< Value >::getIndex(), and OSB_GUI::ValueCombo< Value >::getValue().

---

The documentation for this class was generated from the following file:

• osbcombos.h

---
