OSB_GUI::AdminCtrl Class Reference

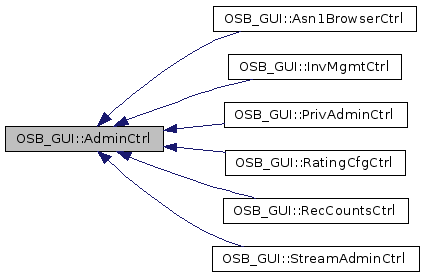

Inheritance diagram for OSB_GUI::AdminCtrl:

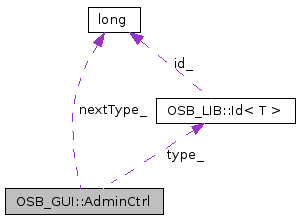

[legend]Collaboration diagram for OSB_GUI::AdminCtrl:

[legend]List of all members.

---

Detailed Description

Generator of an administration widget.

This class is responsible to create an administration widget. The administration console adds the contollers to its list of available windows.
Every instance of the class has its own type. This is an arbitrary design decision that does not require coordination between the various kinds of administration windows.

Note:

A concrete implementation must have QListBoxItem as direct or indirect base.
Because the concrete Qt listbox items do not use virtual inheritance it is useless to derive AdminCtrl from QListBoxItem. Instead the member item() provides access to it.

Definition at line 187 of file adminwidget.h.

Public Member Functions

• AdminCtrl ()

  Constructor: sets the type.


• virtual ~AdminCtrl ()

  Empty virtual destructor.


• AdminType type () const

  Get the type of the generated administration widget.


• virtual QListBoxItem * item ()=0

  Get the listbox item.


• virtual void languageChange ()=0

  Change the language.


• virtual AdminWidget * creWidget (QWorkspace *parent, Qt::WFlags flags)=0

  Create the administration widget.


Private Member Functions

• AdminCtrl (const AdminCtrl &)

  Prevent copying: not implemented.


• AdminCtrl & operator= (const AdminCtrl &)

  Prevent assignment: not implemented.


Private Attributes

• AdminType type_

  The type of the generated administration widget.


Static Private Attributes

• static long nextType_

  The next type identifier that will be used if an object of the class is created.


---

Constructor & Destructor Documentation

OSB_GUI::AdminCtrl::AdminCtrl

(

)

Constructor: sets the type.

virtual OSB_GUI::AdminCtrl::~AdminCtrl

(

)

[virtual]

Empty virtual destructor.

OSB_GUI::AdminCtrl::AdminCtrl

(

const AdminCtrl &

)

[private]

Prevent copying: not implemented.

---

Member Function Documentation

virtual AdminWidget* OSB_GUI::AdminCtrl::creWidget	(	QWorkspace *	parent,
		Qt::WFlags	flags
	)			[pure virtual]

Create the administration widget.

Parameters:

	parent	The parent of the administration widget.
	flags	Window flags that should be used when constructing the widget (see note below).

Returns:

The administration widget, parent takes its ownership.

Note:

The parent of the widget is a workspace. The flags used to create the widget should contain WDestructiveClose.

Implemented in OSB_GUI::Asn1BrowserCtrl, OSB_GUI::InvMgmtCtrl, OSB_GUI::PrivAdminCtrl, OSB_GUI::RatingCfgCtrl, OSB_GUI::RecCountsCtrl, and OSB_GUI::StreamAdminCtrl.

virtual QListBoxItem* OSB_GUI::AdminCtrl::item

(

)

[pure virtual]

Get the listbox item.

The returned pointer must not be 0.

See class description for the motivation of this member.

Implemented in OSB_GUI::Asn1BrowserCtrl, OSB_GUI::InvMgmtCtrl, OSB_GUI::PrivAdminCtrl, OSB_GUI::RatingCfgCtrl, OSB_GUI::RecCountsCtrl, and OSB_GUI::StreamAdminCtrl.

virtual void OSB_GUI::AdminCtrl::languageChange

(

)

[pure virtual]

Change the language.

Implemented in OSB_GUI::Asn1BrowserCtrl, OSB_GUI::InvMgmtCtrl, OSB_GUI::PrivAdminCtrl, OSB_GUI::RatingCfgCtrl, OSB_GUI::RecCountsCtrl, and OSB_GUI::StreamAdminCtrl.

AdminCtrl& OSB_GUI::AdminCtrl::operator=

(

const AdminCtrl &

)

[private]

Prevent assignment: not implemented.

AdminType OSB_GUI::AdminCtrl::type

(

)

const

Get the type of the generated administration widget.

---

Member Data Documentation

long OSB_GUI::AdminCtrl::nextType_ [static, private]

The next type identifier that will be used if an object of the class is created.

Definition at line 192 of file adminwidget.h.

AdminType OSB_GUI::AdminCtrl::type_ [private]

The type of the generated administration widget.

Definition at line 242 of file adminwidget.h.

---

The documentation for this class was generated from the following file:

• adminwidget.h

---
