OSB_GUI::DcInfoGroup Class Reference

Inheritance diagram for OSB_GUI::DcInfoGroup:

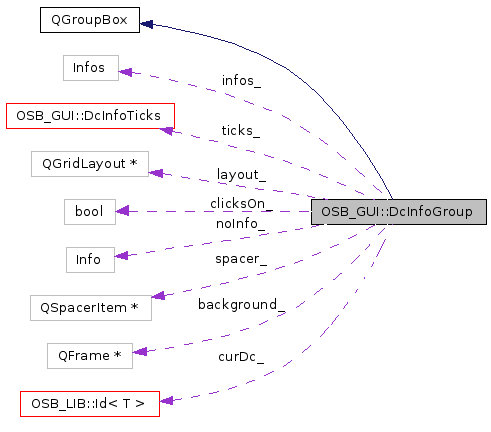

[legend]Collaboration diagram for OSB_GUI::DcInfoGroup:

[legend]List of all members.

---

Detailed Description

Maintain the configuration of a TPS version.

This group box internally stores the configuration of a TPS version, stored as list
day class -> switch time, tariff period.

Definition at line 208 of file tpscfg.h.

Signals

• void sigSwitchTime (const SwitchTimeEvent &event)

  Switch time was selected with the mouse.


• void sigSelected (const DcId &dcId)

  Day class selected or deselected.


Public Member Functions

• DcInfoGroup (QWidget *parent, const char *name="dcGroup_")

  Constructor with Qt arguments.


• void languageChange ()

  Process a language change.


• OSB_LIB::Id< OSB_LIB::DayClass > dcId () const

  Get selected day class.


• void getConfig (OSB_LIB::TpsConfig *config) const

  Get the configuration.


• bool clicksOn () const

  Handle mouse clicks on toggle buttons?


• void setClicks (bool on)

  Switch handling of mouse clicks on toggle buttons on or off.


• void addSwitchTime (const OSB_LIB::DayClass &dc, const OSB_LIB::TariffPeriod &tp, const OSB_LIB::Time &stime)

  Add a switch time.


• void delSwitchTime (const OSB_LIB::Time &stime, const OSB_LIB::Id< OSB_LIB::DayClass > &dcId)

  Remove a switch time.


• void setDc (const OSB_LIB::Id< OSB_LIB::DayClass > &dcId, bool on)

  Switch a day class on or off.


• bool exists (const OSB_LIB::Id< OSB_LIB::DayClass > &dcId) const

  Day class already added to infos?


• Info * addDc (const OSB_LIB::DayClass &dc)

  Add a day class.


Private Types

• typedef std::pair< DcInfoToggle *,
  DcInfo * > Info

  Information about one day class.


• typedef std::list< Info > Infos

  STL container to hold the DC widgets.


• typedef OSB_LIB::Id< OSB_LIB::DayClass > DcId

  Short-hand for day class id, needed for Qt signals and slots.


• colLabels = 0
• colEmpty = 1
• colTicks = 2
• colSpacer = colTicks
• colHours = 3
• enum {
    colLabels = 0, colEmpty = 1, colTicks = 2, colSpacer = colTicks,
    colHours = 3
  }

  Column position of the widgets. More...


Private Slots

• void labelClicked (const DcId &dcId)

  Handle mouse clicks of day class labels.


• void switchTimeEvent (const SwitchTimeEvent &event)

  Handle signals for switch times.


Private Member Functions

• void buildLayout ()

  Build the layout.


• Info * find (const DcId &dcId)

  Find a day class.


• void initInfo (Info *info, bool sigLabel=true, bool sigHours=true)

  Initialize an information buffer.


Private Attributes

• Infos infos_

  List of DC widgets.


• Info noInfo_

  Empty hours if no day classes are configured.


• DcId curDc_

  Id of the currently selected day class.


• QFrame * background_

  Background for switch times and ticks.


• bool clicksOn_

  React to mouse clicks on toggle buttons?


• QSpacerItem * spacer_

  Spacer between labels and switch times.


• DcInfoTicks * ticks_

  Hour ticks.


• QGridLayout * layout_

  Layout for the DC widgets.


---

Member Typedef Documentation

typedef OSB_LIB::Id<OSB_LIB::DayClass> OSB_GUI::DcInfoGroup::DcId [private]

Short-hand for day class id, needed for Qt signals and slots.

Definition at line 216 of file tpscfg.h.

typedef std::pair<DcInfoToggle*, DcInfo*> OSB_GUI::DcInfoGroup::Info [private]

Information about one day class.

Definition at line 212 of file tpscfg.h.

typedef std::list<Info> OSB_GUI::DcInfoGroup::Infos [private]

STL container to hold the DC widgets.

Definition at line 214 of file tpscfg.h.

---

Member Enumeration Documentation

anonymous enum [private]

Column position of the widgets.

Enumerator:

colLabels
colEmpty
colTicks
colSpacer
colHours

Definition at line 218 of file tpscfg.h.

---

Constructor & Destructor Documentation

OSB_GUI::DcInfoGroup::DcInfoGroup	(	QWidget *	parent,
		const char *	name = "dcGroup_"
	)			[explicit]

Constructor with Qt arguments.

---

Member Function Documentation

Info* OSB_GUI::DcInfoGroup::addDc

(

const OSB_LIB::DayClass &

dc

)

Add a day class.

Parameters:

dc

Dayclass to add. It is added only if it does not yet exist in the group.

Returns:

true if the day class was added to the group, else false.

void OSB_GUI::DcInfoGroup::addSwitchTime	(	const OSB_LIB::DayClass &	dc,
		const OSB_LIB::TariffPeriod &	tp,
		const OSB_LIB::Time &	stime
	)

Add a switch time.

Parameters:

	dc	Day class of the switch time.
	tp	Tariff period of the switch time.
	stime	Switch time to add.

void OSB_GUI::DcInfoGroup::buildLayout

(

)

[private]

Build the layout.

Shows or hides noInfo_, background_ and ticks_ depending on whether day classes have been added.

bool OSB_GUI::DcInfoGroup::clicksOn

(

)

const

Handle mouse clicks on toggle buttons?

OSB_LIB::Id<OSB_LIB::DayClass> OSB_GUI::DcInfoGroup::dcId

(

)

const

Get selected day class.

Returns:

The object id of the currently selected day class, it is not set if no DcInfoToggle is currently on.

void OSB_GUI::DcInfoGroup::delSwitchTime	(	const OSB_LIB::Time &	stime,
		const OSB_LIB::Id< OSB_LIB::DayClass > &	dcId
	)

Remove a switch time.

Parameters:

	stime	Switch time to remove.
	dcId	Day class from which to remove stime.

Note that the switch time is unique for each day class, thus the tariff period is not needed.

bool OSB_GUI::DcInfoGroup::exists

(

const OSB_LIB::Id< OSB_LIB::DayClass > &

dcId

)

const

Day class already added to infos?

Info* OSB_GUI::DcInfoGroup::find

(

const DcId &

dcId

)

[private]

Find a day class.

Parameters:

dcId

Object id of the day class to find.

Returns:

The day class widget for dcId, 0 if not found.

void OSB_GUI::DcInfoGroup::getConfig

(

OSB_LIB::TpsConfig *

config

)

const

Get the configuration.

void OSB_GUI::DcInfoGroup::initInfo	(	Info *	info,
		bool	sigLabel = true,
		bool	sigHours = true
	)			[private]

Initialize an information buffer.

Parameters:

	info	Buffer to initalize, it's member may be 0.
	sigLabel	Connect to signals of label?
	sigHours	Connect to signals of hour info?

Sets the font of the label, the background of the hour info and connects to their signals.

void OSB_GUI::DcInfoGroup::labelClicked

(

const DcId &

dcId

)

[private, slot]

Handle mouse clicks of day class labels.

Parameters:

dcId

Id of the day class.

Switches the current selected info off and selected info.

void OSB_GUI::DcInfoGroup::languageChange

(

)

Process a language change.

void OSB_GUI::DcInfoGroup::setClicks

(

bool

on

)

Switch handling of mouse clicks on toggle buttons on or off.

void OSB_GUI::DcInfoGroup::setDc	(	const OSB_LIB::Id< OSB_LIB::DayClass > &	dcId,
		bool	on
	)

Switch a day class on or off.

Parameters:

	dcId	Id of day class to switch.
	on	Switch on or off?

void OSB_GUI::DcInfoGroup::sigSelected

(

const DcId &

dcId

)

[signal]

Day class selected or deselected.

Parameters:

dcId

The id of the selected day class, it is not set if the current day class is deselected.

void OSB_GUI::DcInfoGroup::sigSwitchTime

(

const SwitchTimeEvent &

event

)

[signal]

Switch time was selected with the mouse.

This signal is sent from switchTimeEvent().

Parameters:

event

Information about selected switch time.

void OSB_GUI::DcInfoGroup::switchTimeEvent

(

const SwitchTimeEvent &

event

)

[private, slot]

Handle signals for switch times.

Parameters:

event

Information about selected switch time.

Emits sigSwitchTime() with event.

---

Member Data Documentation

QFrame* OSB_GUI::DcInfoGroup::background_ [private]

Background for switch times and ticks.

Definition at line 372 of file tpscfg.h.

bool OSB_GUI::DcInfoGroup::clicksOn_ [private]

React to mouse clicks on toggle buttons?

Definition at line 374 of file tpscfg.h.

DcId OSB_GUI::DcInfoGroup::curDc_ [private]

Id of the currently selected day class.

It is not set if no DC is currently selected.

Definition at line 370 of file tpscfg.h.

Infos OSB_GUI::DcInfoGroup::infos_ [private]

List of DC widgets.

Definition at line 362 of file tpscfg.h.

QGridLayout* OSB_GUI::DcInfoGroup::layout_ [private]

Layout for the DC widgets.

Definition at line 380 of file tpscfg.h.

Info OSB_GUI::DcInfoGroup::noInfo_ [private]

Empty hours if no day classes are configured.

Definition at line 364 of file tpscfg.h.

QSpacerItem* OSB_GUI::DcInfoGroup::spacer_ [private]

Spacer between labels and switch times.

Definition at line 376 of file tpscfg.h.

DcInfoTicks* OSB_GUI::DcInfoGroup::ticks_ [private]

Hour ticks.

Definition at line 378 of file tpscfg.h.

---

The documentation for this class was generated from the following file:

• tpscfg.h

---
