OSB_GUI::DlgRfBase Class Reference

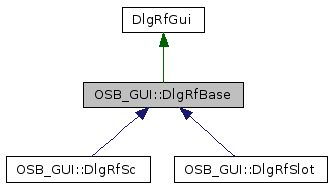

Inheritance diagram for OSB_GUI::DlgRfBase:

[legend]Collaboration diagram for OSB_GUI::DlgRfBase:

[legend]List of all members.

---

Detailed Description

Base for dialogs to show and edit rating functions.

It provides functionality the edit the members of a rating function.

Definition at line 97 of file dlgrf.h.

Public Member Functions

• DlgRfBase (QWidget *parent, const char *name, bool modal=false, WFlags fl=0)

  Constructor with Qt arguments.


• virtual int showRf (const OSB_LIB::RatingFn &rf, const OSB_LIB::ChargeTraits &ct)=0

  Show a rating function.


• virtual int editRf (OSB_LIB::RatingFn *rf, OSB_LIB::ChargeTraits *ct)=0

  Edit a rating function.


Protected Member Functions

• virtual void languageChange ()

  Process a language change.


• void display (const OSB_LIB::RatingFn &rf, const OSB_LIB::ChargeTraits &ct, bool showOnly)

  Set the widgets for a rating function.


• void updateRf (OSB_LIB::RatingFn *rf, OSB_LIB::ChargeTraits *ct)

  Write widgets content to rating function.


Private Slots

• void testRf ()

  Test the rating function.


Private Member Functions

• virtual const OSB_LIB::RatingFn * getRf () const =0

  Get the rating function.


---

Constructor & Destructor Documentation

OSB_GUI::DlgRfBase::DlgRfBase	(	QWidget *	parent,
		const char *	name,
		bool	modal = false,
		WFlags	fl = 0
	)

Constructor with Qt arguments.

---

Member Function Documentation

void OSB_GUI::DlgRfBase::display	(	const OSB_LIB::RatingFn &	rf,
		const OSB_LIB::ChargeTraits &	ct,
		bool	showOnly
	)			[protected]

Set the widgets for a rating function.

Parameters:

	rf	Rating function display.
	ct	Charge traits of the rating function. See showRf() for details.
	showOnly	Flag if the rating function is only displayed.

Note:

The function is not virtual. Derived classes should re-implement it taking their supported rating function as first argument and call this member is their own implementation.

virtual int OSB_GUI::DlgRfBase::editRf	(	OSB_LIB::RatingFn *	rf,
		OSB_LIB::ChargeTraits *	ct
	)			[pure virtual]

Edit a rating function.

Parameters:

	rf	Rating function to edit and populate.
	ct	Charge traits of the rating function. See showRf() for details.

Exceptions:

OSB_LIB::OsbException

by derived classes if rf does not have the correct type.

Returns:

The QDialog execution code. rf is populated only if it is QDialog::Accepted.

Implemented in OSB_GUI::DlgRfSc, and OSB_GUI::DlgRfSlot.

virtual const OSB_LIB::RatingFn* OSB_GUI::DlgRfBase::getRf

(

)

const [private, pure virtual]

Get the rating function.

This member is called from testRf(). This functionality is available only if the rating function is shown.

Returns:

Reference to the rating function that is currently being shown.
The pointer may be 0 if the rating function currently being edited or is otherwise not available.

Implemented in OSB_GUI::DlgRfSc, and OSB_GUI::DlgRfSlot.

virtual void OSB_GUI::DlgRfBase::languageChange

(

)

[protected, virtual]

Process a language change.

Reimplemented in OSB_GUI::DlgRfSc, and OSB_GUI::DlgRfSlot.

virtual int OSB_GUI::DlgRfBase::showRf	(	const OSB_LIB::RatingFn &	rf,
		const OSB_LIB::ChargeTraits &	ct
	)			[pure virtual]

Show a rating function.

Parameters:

	rf	Rating function to show.
	ct	Charge traits of the rating function. They should be default constructed if the rating function's charge trait are not defined yet.

Exceptions:

OSB_LIB::OsbException

by derived classes if rf does not have the correct type.

Returns:

The QDialog execution code.

Implemented in OSB_GUI::DlgRfSc, and OSB_GUI::DlgRfSlot.

void OSB_GUI::DlgRfBase::testRf

(

)

[private, slot]

Test the rating function.

void OSB_GUI::DlgRfBase::updateRf	(	OSB_LIB::RatingFn *	rf,
		OSB_LIB::ChargeTraits *	ct
	)			[protected]

Write widgets content to rating function.

Parameters:

	rf	Rating function to populate.
	ct	Gets the charge traits of the rating function.

---

The documentation for this class was generated from the following file:

• dlgrf.h

---
