OSB_LIB::RatingFn Class Reference

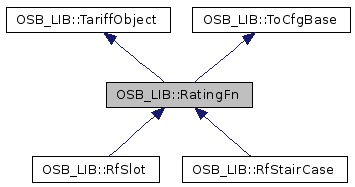

Inheritance diagram for OSB_LIB::RatingFn:

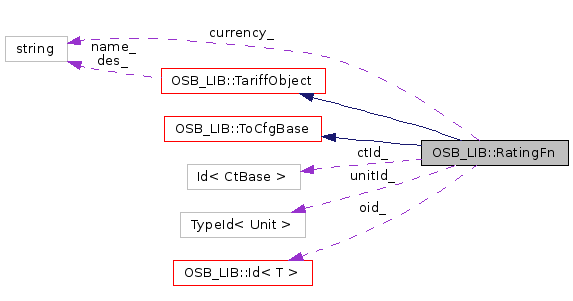

[legend]Collaboration diagram for OSB_LIB::RatingFn:

[legend]List of all members.

---

Detailed Description

RatingFn is the object that actually rate a used service.

Definition at line 73 of file ratingfn.h.

Database operations:

• bool read (const OSB_DB::Session &session)

  This function allow rating function to read itself from database.


• bool insert (const OSB_DB::Session &session)

  This function allow rating function to insert itself into database.


• bool remove (const OSB_DB::Session &session)

  This function allow rating function to remove itself from database.


• bool update (const OSB_DB::Session &session)

  This function allow rating function to update itself into database.


Public Types

• typedef Id< RatingFn > Oid

  Type-safe, unique id of a rating function.


• typedef TypeId< RatingFn > Type

  Type-safe identification of the type.


• typedef std::auto_ptr< RatingFn > AutoPtr

  Short-cut for an auto pointer.


• rfStairCase = 1

  StairCase rating function.


• rfSlot = 2

  DiscountRental rating function.


• enum RfType { rfStairCase = 1, rfSlot = 2 }

  Available rating function type. More...


Public Member Functions

• RatingFn (const Oid &oid=Oid())

  Constructor with rating function type and optional object id.


• virtual ~RatingFn ()

  Virtual destructor.


• AutoPtr clone () const

  Virtual copy construction.


• template<typename F> F * isa (F *&ptr)

  Downcast to a derived class.


• template<typename F> const F * isa (const F *&ptr) const

  Downcasting: see template<typename F> F* isa(F*&).


• virtual const Money rateVolumeToMoney (const TypeId< Unit > &unitId, const Decimal &volume, Decimal &roundedVolume) const =0

  Rate a used service for a specific time interval.


• virtual const Decimal rateMoneyToVolume (const Money &money) const =0

  Rate a used service based on the available money.


Read access to data members:

• virtual Type type () const =0

  Get the type of rating function.


• RfType rfType () const

  Rating function type as enumeration constant.


• const Oid & oid () const

  Get the rating function id.


• const Id< CtBase > & ctId () const

  Get the charge traits.


• const std::string & currency () const

  Get the currency id.


• const TypeId< Unit > & unitId () const

  Get the unit id.


Modify data members:

• void setCtId (const ChargeTraits &ct)

  Set the rating function's charge traits.


• void setUnitId (const TypeId< Unit > &id)

  Set the rating function's unit.


Status change operations:

• bool freeze (const OSB_DB::Session &session, OsbErrors &errors)

  Set the rating function from editable to standby.


• bool release (const OSB_DB::Session &session, OsbErrors &errors)

  Set the rating function from standby to released.


• bool revoke (const OSB_DB::Session &session, OsbErrors &errors)

  Set the rating function from released to standby.


• bool unfreeze (const OSB_DB::Session &session, OsbErrors &errors)

  Set the rating function from standby to editable.


Static Public Member Functions

• static RfType rfType (const Type &t)

  Utility to convert a Type into a RfType.


Protected Member Functions

• virtual RatingFn & operator= (const RatingFn &rhs)

  Assignment operator.


• bool checkObjVs (const OSB_DB::Session &session, OsbErrors &errors)

  Compare the object version with the database.


Private Member Functions

• virtual RatingFn * clone_ () const =0

  Virtual copy construction.


Specific criteria checking before status changes:

These are pure virtual functions that must be reimplement by all derieved classes. Every individual derieved class implementation will have to check for their specific requirement before changing the status. For derieved classes that do not have any specific criteria checking should return true.

• virtual bool freezeSpecific (const OSB_DB::Session &session, OsbErrors &errors)=0

  Criteria checking before setting the status from editable to standby.


• virtual bool releaseSpecific (const OSB_DB::Session &session, OsbErrors &errors)=0

  Criteria checking before setting the status from standby to release.


• virtual bool revokeSpecific (const OSB_DB::Session &session, OsbErrors &errors)=0

  Criteria checking before setting the status from release to standby.


• virtual bool unfreezeSpecific (const OSB_DB::Session &session, OsbErrors &errors)=0

  Criteria checking before setting the status from standby to editable.


Specific database operations for derived classes.

The following functions are used to perform derived class specific database operations. For those derieved classes that do not have any specific database operation, will implement the functions to return true.

• virtual bool readSpecific (const OSB_DB::Session &session)=0

  Read derived class specific data members from database.


• virtual bool insSpecific (const OSB_DB::Session &session)=0

  Insert derived class specific data members into database.


• virtual bool removeSpecific (const OSB_DB::Session &session)=0

  Remove derived class specific data members from database.


• virtual bool updSpecific (const OSB_DB::Session &session)=0

  Update derived class specific data members into database.


Private Attributes

• Oid oid_

  Unique id of the rating function object.


• Id< CtBase > ctId_

  Unique id of charge traits.


• std::string currency_

  Unique id of Currency, maintained together with ctId_.


• TypeId< Unit > unitId_

  Unique id of unit.


Friends

• struct OSB_DB::RatingFnGw

  The database gateway needs to populate data members after construction.


• class TariffCatalogue

  Tariff Catalogue is the only object that is allow to invoke the database functions of this class.


• class RatingFns

  Allow RatingFns to insert rating function to database.


---

Member Typedef Documentation

typedef std::auto_ptr<RatingFn> OSB_LIB::RatingFn::AutoPtr

Short-cut for an auto pointer.

For details see quality manual, implementation patterns: Virtual copy construction.

Reimplemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

Definition at line 101 of file ratingfn.h.

typedef Id<RatingFn> OSB_LIB::RatingFn::Oid

Type-safe, unique id of a rating function.

Definition at line 91 of file ratingfn.h.

typedef TypeId<RatingFn> OSB_LIB::RatingFn::Type

Type-safe identification of the type.

Definition at line 94 of file ratingfn.h.

---

Member Enumeration Documentation

enum OSB_LIB::RatingFn::RfType

Available rating function type.

Enumerator:

rfStairCase	StairCase rating function.
rfSlot	DiscountRental rating function.

Definition at line 103 of file ratingfn.h.

---

Constructor & Destructor Documentation

OSB_LIB::RatingFn::RatingFn

(

const Oid &

oid = Oid()

)

[explicit]

Constructor with rating function type and optional object id.

virtual OSB_LIB::RatingFn::~RatingFn

(

)

[inline, virtual]

Virtual destructor.

Definition at line 115 of file ratingfn.h.

---

Member Function Documentation

bool OSB_LIB::RatingFn::checkObjVs	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[protected]

Compare the object version with the database.

Parameters:

	session	Database session to use.
	errors	Gets error message if the object version does not match the database.

Returns:

true if the object version is the same as in the database, else false.

AutoPtr OSB_LIB::RatingFn::clone

(

)

const

Virtual copy construction.

For details see quality manual, implementation patterns.

Reimplemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

virtual RatingFn* OSB_LIB::RatingFn::clone_

(

)

const [private, pure virtual]

Virtual copy construction.

For details see quality manual, implementation patterns.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

const Id<CtBase>& OSB_LIB::RatingFn::ctId

(

)

const

Get the charge traits.

const std::string& OSB_LIB::RatingFn::currency

(

)

const

Get the currency id.

bool OSB_LIB::RatingFn::freeze	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[virtual]

Set the rating function from editable to standby.

To freeze a rating function, the following criteria must be fulfilled:

• The rating function must be in status editable.
• The unit must be set.
• The charge traits must be set.

Parameters:

	session	database session.
	errors	container for error messages if any.

Returns:

true if success else false.

Implements OSB_LIB::ToCfgBase.

virtual bool OSB_LIB::RatingFn::freezeSpecific	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[private, pure virtual]

Criteria checking before setting the status from editable to standby.

Parameters:

	session	Database session used.
	errors	Container for error messages if any.

Returns:

true if success else false.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

bool OSB_LIB::RatingFn::insert

(

const OSB_DB::Session &

session

)

[private]

This function allow rating function to insert itself into database.

The object's id is not set before the function call. If the function completed successfully, the object will have it's id set, else the id will still be the same (not set).

Parameters:

session

database session.

Returns:

true if success else false.

Exceptions:

OsbException

for the following errors: Duplicate name.

virtual bool OSB_LIB::RatingFn::insSpecific

(

const OSB_DB::Session &

session

)

[private, pure virtual]

Insert derived class specific data members into database.

Parameters:

session

Database session.

Returns:

true if success else false.

Exceptions:

OsbException

for database error.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

template<typename F>

const F * OSB_LIB::RatingFn::isa

(

const F *&

ptr

)

const

Downcasting: see template<typename F> F* isa(F*&).

Definition at line 1194 of file ratingfn.h.

template<typename F>

F * OSB_LIB::RatingFn::isa

(

F *&

ptr

)

Downcast to a derived class.

The function uses dynamic_cast<F*> to downcast an object of RatingFn to an object of a derived class.

          ptr = dynamic_cast<P*>(this);
          return ptr;

An example is given below:

          class DerivedFunc : public RatingFn {
              ...
          };

          void foo(const RatingFn& rf)
          {
              ...
              DerivedFunc* pRf;
              if (0 != rf.isa(pRf)) {
                  // work with pRf
              }
          }

Parameters:

ptr

Pointer to cast to. It gets the result of the downcast. It's value will be 0 if the cast fails.

Returns:

The argument pointer `ptr' after the downcast.

Definition at line 1188 of file ratingfn.h.

const Oid& OSB_LIB::RatingFn::oid

(

)

const

Get the rating function id.

virtual RatingFn& OSB_LIB::RatingFn::operator=

(

const RatingFn &

rhs

)

[protected, virtual]

Assignment operator.

Remarks:

The operator is protected in order to avoid partial assignments of derived classes through pointers or references to the base class.

virtual const Decimal OSB_LIB::RatingFn::rateMoneyToVolume

(

const Money &

money

)

const [pure virtual]

Rate a used service based on the available money.

This function takes in an amount of money and calculate the total amount of time for a call.

Parameters:

money

Available money to be converted into call duration.

Returns:

Call duration.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

virtual const Money OSB_LIB::RatingFn::rateVolumeToMoney	(	const TypeId< Unit > &	unitId,
		const Decimal &	volume,
		Decimal &	roundedVolume
	)			const [pure virtual]

Rate a used service for a specific time interval.

This function takes in the total volume or length of time a service is used. It will then calculate the cost for the volume of service used and round the volume as well.

Parameters:

	unitId	Unit of the volume passed in.
	volume	Length of time a service is used.
	roundedVolume	Length of time after round.

Returns:

The cost of the service used for the inputed interval.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

bool OSB_LIB::RatingFn::read

(

const OSB_DB::Session &

session

)

This function allow rating function to read itself from database.

Object id must be set before the function call. The id is used to retrieve other details from database and populate the object.

Parameters:

session

database session.

Returns:

true if success else false.

Exceptions:

OsbException

for database error.

virtual bool OSB_LIB::RatingFn::readSpecific

(

const OSB_DB::Session &

session

)

[private, pure virtual]

Read derived class specific data members from database.

Parameters:

session

Database session.

Returns:

true if success else false.

Exceptions:

OsbException

for database error.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

bool OSB_LIB::RatingFn::release	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[virtual]

Set the rating function from standby to released.

To release a rating function, the following criteria must be fulfilled:

• The rating function must be in status standby.

Parameters:

	session	database session.
	errors	container for error messages if any.

Returns:

true if success else false.

Exceptions:

OsbException

for any database errors.

Implements OSB_LIB::ToCfgBase.

virtual bool OSB_LIB::RatingFn::releaseSpecific	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[private, pure virtual]

Criteria checking before setting the status from standby to release.

Parameters:

	session	Database session used.
	errors	Container for error messages if any.

Returns:

true if success else false.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

bool OSB_LIB::RatingFn::remove

(

const OSB_DB::Session &

session

)

[private]

This function allow rating function to remove itself from database.

Object id must be set before the function call. The id will be unset if the function completed successfully, else no changes to the object.

Parameters:

session

database session.

Returns:

true if success else false.

Exceptions:

OsbException

for the following errors: Object is not editable.

virtual bool OSB_LIB::RatingFn::removeSpecific

(

const OSB_DB::Session &

session

)

[private, pure virtual]

Remove derived class specific data members from database.

Parameters:

session

Database session.

Returns:

true if success else false.

Exceptions:

OsbException

for database error.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

bool OSB_LIB::RatingFn::revoke	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[virtual]

Set the rating function from released to standby.

To revoke a rating function, the following criteria must be fulfilled:

• The rating function must be in status release.
• The rating function is not used by any tariff version object that is in release state.

Parameters:

	session	database session.
	errors	container for error messages if any.

Returns:

true if success else false.

Exceptions:

OsbException

for any database errors.

Implements OSB_LIB::ToCfgBase.

virtual bool OSB_LIB::RatingFn::revokeSpecific	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[private, pure virtual]

Criteria checking before setting the status from release to standby.

Parameters:

	session	Database session used.
	errors	Container for error messages if any.

Returns:

true if success else false.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

RfType OSB_LIB::RatingFn::rfType

(

)

const

Rating function type as enumeration constant.

static RfType OSB_LIB::RatingFn::rfType

(

const Type &

t

)

[static]

Utility to convert a Type into a RfType.

void OSB_LIB::RatingFn::setCtId

(

const ChargeTraits &

ct

)

Set the rating function's charge traits.

Parameters:

ct

Charge traits of the rating function, only their object id and currency code is relevant.

Exceptions:

OsbException

if the rating function is not editable.

void OSB_LIB::RatingFn::setUnitId

(

const TypeId< Unit > &

id

)

Set the rating function's unit.

Parameters:

id

Object id of the unit.

Exceptions:

OsbException

if the rating function is not editable.

virtual Type OSB_LIB::RatingFn::type

(

)

const [pure virtual]

Get the type of rating function.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

bool OSB_LIB::RatingFn::unfreeze	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[virtual]

Set the rating function from standby to editable.

To unfreeze a rating function, the following criteria must be fulfilled:

• The rating function, must be in status standby.
• The rating function is not used by any tariff version object that is in freeze state.

Parameters:

	session	database session.
	errors	container for error messages if any.

Returns:

true if success else false.

Exceptions:

OsbException

for any database errors.

Implements OSB_LIB::ToCfgBase.

virtual bool OSB_LIB::RatingFn::unfreezeSpecific	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[private, pure virtual]

Criteria checking before setting the status from standby to editable.

Parameters:

	session	Database session used.
	errors	Container for error messages if any.

Returns:

true if success else false.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

const TypeId<Unit>& OSB_LIB::RatingFn::unitId

(

)

const

Get the unit id.

bool OSB_LIB::RatingFn::update

(

const OSB_DB::Session &

session

)

[private]

This function allow rating function to update itself into database.

This function will update an existing rating function object in the database. If the function completed successfully, the object's objVs will increment by 1.

Parameters:

session

database session.

Returns:

true if success else false.

Exceptions:

OsbException

for the following errors: Object does not exist.

virtual bool OSB_LIB::RatingFn::updSpecific

(

const OSB_DB::Session &

session

)

[private, pure virtual]

Update derived class specific data members into database.

Parameters:

session

Database session.

Returns:

true if success else false.

Exceptions:

OsbException

for database error.

Implemented in OSB_LIB::RfStairCase, and OSB_LIB::RfSlot.

---

Friends And Related Function Documentation

friend struct OSB_DB::RatingFnGw [friend]

The database gateway needs to populate data members after construction.

Definition at line 78 of file ratingfn.h.

friend class RatingFns [friend]

Allow RatingFns to insert rating function to database.

Definition at line 88 of file ratingfn.h.

friend class TariffCatalogue [friend]

Tariff Catalogue is the only object that is allow to invoke the database functions of this class.

Definition at line 83 of file ratingfn.h.

---

Member Data Documentation

Id<CtBase> OSB_LIB::RatingFn::ctId_ [private]

Unique id of charge traits.

Definition at line 517 of file ratingfn.h.

std::string OSB_LIB::RatingFn::currency_ [private]

Unique id of Currency, maintained together with ctId_.

Definition at line 519 of file ratingfn.h.

Oid OSB_LIB::RatingFn::oid_ [private]

Unique id of the rating function object.

Definition at line 515 of file ratingfn.h.

TypeId<Unit> OSB_LIB::RatingFn::unitId_ [private]

Unique id of unit.

Definition at line 521 of file ratingfn.h.

---

The documentation for this class was generated from the following file:

• ratingfn.h

---
