OSB_GUI::WdgtModAccess Class Reference

Inheritance diagram for OSB_GUI::WdgtModAccess:

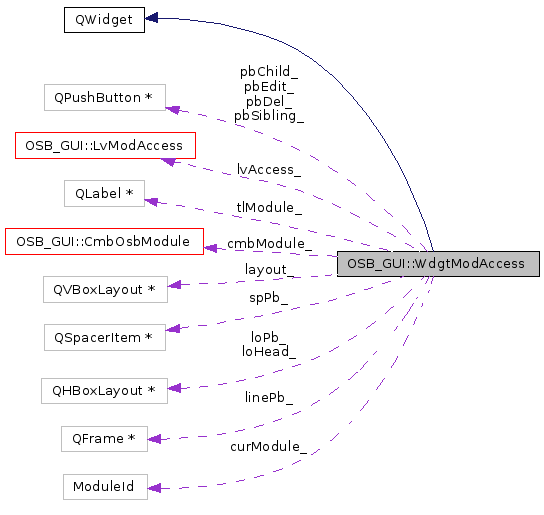

[legend]Collaboration diagram for OSB_GUI::WdgtModAccess:

[legend]List of all members.

---

Detailed Description

Widget to maintain the access rights of a module.

Definition at line 80 of file privmodacs.h.

Public Slots

• void languageChange ()

  Change the language.


Public Member Functions

• WdgtModAccess (QWidget *parent, const char *name=0, WFlags flags=0)

  Constructor with QT arguments.


• void populate ()

  Populate the widget.


• const OSB_LIB::ModuleId curModule () const

  Get the selected module.


Private Slots

• void modChanged ()

  User has selected a different module in the combo.


• void addSibling ()

  Create an access right as a sibling of the currently selected access.


• void addChild ()

  Create an access right as a child of the currently selected access.


• void editAccess ()

  Edit the currently selected access.


• void delAccess ()

  Delete the currently selected access.


• void enablePbs ()

  En/disable the push buttons.


Private Member Functions

• WdgtModAccess (const WdgtModAccess &)

  Prevent copying until needed: not implemented.


• WdgtModAccess & operator= (const WdgtModAccess &)

  Prevent assignment until needed: not implemented.


• void addAccess (bool addSibling)

  Create a module access.


Private Attributes

• OSB_LIB::ModuleId curModule_

  The current module.


• QVBoxLayout * layout_

  Layout for the whole widget.


• QLabel * tlModule_

  Label "Module".


• CmbOsbModule * cmbModule_

  Combo with modules.


• QHBoxLayout * loHead_

  Layout for combobox with modules.


• LvModAccess * lvAccess_

  List view with access rights for current module.


• QFrame * linePb_

  Line above push buttons.


• QPushButton * pbSibling_

  Push button "new sibling".


• QPushButton * pbChild_

  Push button "new child".


• QPushButton * pbEdit_

  Push button "edit".


• QPushButton * pbDel_

  Push button "delete".


• QHBoxLayout * loPb_

  Layout for push buttons.


• QSpacerItem * spPb_

  Spacer left of push buttons.


---

Constructor & Destructor Documentation

OSB_GUI::WdgtModAccess::WdgtModAccess	(	QWidget *	parent,
		const char *	name = 0,
		WFlags	flags = 0
	)

Constructor with QT arguments.

OSB_GUI::WdgtModAccess::WdgtModAccess

(

const WdgtModAccess &

)

[private]

Prevent copying until needed: not implemented.

---

Member Function Documentation

void OSB_GUI::WdgtModAccess::addAccess

(

bool

addSibling

)

[private]

Create a module access.

Parameters:

addSibling

Flag to create the new access right as sibling of the currently selected access (or as access root).

void OSB_GUI::WdgtModAccess::addChild

(

)

[private, slot]

Create an access right as a child of the currently selected access.

void OSB_GUI::WdgtModAccess::addSibling

(

)

[private, slot]

Create an access right as a sibling of the currently selected access.

const OSB_LIB::ModuleId OSB_GUI::WdgtModAccess::curModule

(

)

const

Get the selected module.

Returns:

The id of the currently displayed module, it may not be set.

void OSB_GUI::WdgtModAccess::delAccess

(

)

[private, slot]

Delete the currently selected access.

void OSB_GUI::WdgtModAccess::editAccess

(

)

[private, slot]

Edit the currently selected access.

void OSB_GUI::WdgtModAccess::enablePbs

(

)

[private, slot]

En/disable the push buttons.

void OSB_GUI::WdgtModAccess::languageChange

(

)

[slot]

Change the language.

void OSB_GUI::WdgtModAccess::modChanged

(

)

[private, slot]

User has selected a different module in the combo.

WdgtModAccess& OSB_GUI::WdgtModAccess::operator=

(

const WdgtModAccess &

)

[private]

Prevent assignment until needed: not implemented.

void OSB_GUI::WdgtModAccess::populate

(

)

Populate the widget.

Uses OSB_LIB::userMgmt().modules() to populate the combo and the listview.

---

Member Data Documentation

CmbOsbModule* OSB_GUI::WdgtModAccess::cmbModule_ [private]

Combo with modules.

Definition at line 162 of file privmodacs.h.

OSB_LIB::ModuleId OSB_GUI::WdgtModAccess::curModule_ [private]

The current module.

Definition at line 153 of file privmodacs.h.

QVBoxLayout* OSB_GUI::WdgtModAccess::layout_ [private]

Layout for the whole widget.

Definition at line 157 of file privmodacs.h.

QFrame* OSB_GUI::WdgtModAccess::linePb_ [private]

Line above push buttons.

Definition at line 170 of file privmodacs.h.

QHBoxLayout* OSB_GUI::WdgtModAccess::loHead_ [private]

Layout for combobox with modules.

Definition at line 164 of file privmodacs.h.

QHBoxLayout* OSB_GUI::WdgtModAccess::loPb_ [private]

Layout for push buttons.

Definition at line 181 of file privmodacs.h.

LvModAccess* OSB_GUI::WdgtModAccess::lvAccess_ [private]

List view with access rights for current module.

Definition at line 167 of file privmodacs.h.

QPushButton* OSB_GUI::WdgtModAccess::pbChild_ [private]

Push button "new child".

Definition at line 174 of file privmodacs.h.

QPushButton* OSB_GUI::WdgtModAccess::pbDel_ [private]

Push button "delete".

Definition at line 178 of file privmodacs.h.

QPushButton* OSB_GUI::WdgtModAccess::pbEdit_ [private]

Push button "edit".

Definition at line 176 of file privmodacs.h.

QPushButton* OSB_GUI::WdgtModAccess::pbSibling_ [private]

Push button "new sibling".

Definition at line 172 of file privmodacs.h.

QSpacerItem* OSB_GUI::WdgtModAccess::spPb_ [private]

Spacer left of push buttons.

Definition at line 183 of file privmodacs.h.

QLabel* OSB_GUI::WdgtModAccess::tlModule_ [private]

Label "Module".

Definition at line 160 of file privmodacs.h.

---

The documentation for this class was generated from the following file:

• privmodacs.h

---
