OSB_LIB::Asn1Buffer Class Reference

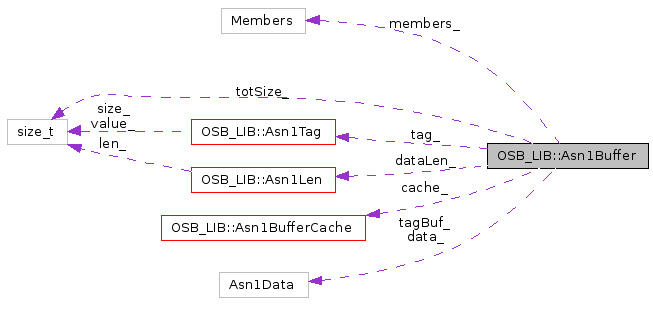

Collaboration diagram for OSB_LIB::Asn1Buffer:

[legend]List of all members.

---

Detailed Description

Buffer to store encoded data of one ASN.1 type.

Definition at line 121 of file asn1writer.h.

Public Member Functions

• Asn1Buffer (Asn1BufferCache &cache)

  Constructor with cache that owns the buffer.


• void destroy ()

  Destroy the buffer.


• void add (const Asn1Encoder &encoder, bool force=false)

  Add a constructed ASN.1 type.


• void add (const Asn1DataEncoder &encoder, bool force=false)

  Add a primitive ASN.1 type.


• bool write (FILE *out) const

  Write binary ASN.1 data to an output file.


• void clearData ()

  Clear the data of the buffer.


Private Types

• typedef std::list< Asn1Buffer * > Members

  STL container to store subtypes.


Private Member Functions

• ~Asn1Buffer ()

  Destructor: force creation on the heap.


• Asn1Buffer (const Asn1Buffer &)

  Prevent copying until needed: not implemented.


• Asn1Buffer & operator= (const Asn1Buffer &)

  Prevent assignment until needed: not implemented.


• size_t memberSize () const

  Number of bytes of the members_.


• bool getData (const Asn1Encoder &encoder, bool force)

  Get the data of a constructed ASN.1 type.


• bool getData (const Asn1DataEncoder &encoder, bool force)

  Get the data of a primitive ASN.1 type.


Private Attributes

• size_t totSize_

  Size of binary data, incl. tag and data length.


• Asn1Data data_

  Binary ASN.1 data.


• Members members_

  Members of the ASN.1 constructed type.


• Asn1Tag tag_

  Tag of the encoded data.


• Asn1Len dataLen_

  Size of the encoded data.


• Asn1Data tagBuf_

  Buffer to encode the tag and data length.


• Asn1BufferCache & cache_

  Cache that owns the buffer.


Friends

• class Asn1Writer

  Allow the ASN.1 writer to:

  • own a buffer
  • call getData().




• class Asn1BufferCache

  Give access to totSize_.


---

Member Typedef Documentation

typedef std::list<Asn1Buffer*> OSB_LIB::Asn1Buffer::Members [private]

STL container to store subtypes.

Definition at line 131 of file asn1writer.h.

---

Constructor & Destructor Documentation

OSB_LIB::Asn1Buffer::Asn1Buffer

(

Asn1BufferCache &

cache

)

Constructor with cache that owns the buffer.

OSB_LIB::Asn1Buffer::~Asn1Buffer

(

)

[private]

Destructor: force creation on the heap.

OSB_LIB::Asn1Buffer::Asn1Buffer

(

const Asn1Buffer &

)

[private]

Prevent copying until needed: not implemented.

---

Member Function Documentation

void OSB_LIB::Asn1Buffer::add	(	const Asn1DataEncoder &	encoder,
		bool	force = false
	)

Add a primitive ASN.1 type.

Parameters:

	encoder	Encode to use to get the data.
	force	Flag to add the ASN.1 type even if it has no data.

Calls operator() of encoder with data_.

void OSB_LIB::Asn1Buffer::add	(	const Asn1Encoder &	encoder,
		bool	force = false
	)

Add a constructed ASN.1 type.

Parameters:

	encoder	Encode to use to get the data.
	force	Flag to add the ASN.1 type even if it has no data.

Calls operator() of encoder with itself.

void OSB_LIB::Asn1Buffer::clearData

(

)

Clear the data of the buffer.

Returns the content of members_ to the cache_.

For performance reasons only data_ and members_ are cleared, but not the other data members.

void OSB_LIB::Asn1Buffer::destroy

(

)

Destroy the buffer.

bool OSB_LIB::Asn1Buffer::getData	(	const Asn1DataEncoder &	encoder,
		bool	force
	)			[private]

Get the data of a primitive ASN.1 type.

Parameters:

	encoder	Encode to use to get the data.
	force	Flag to add the ASN.1 type even if it has no data.

Returns:

true if ASN.1 data have been generated, else false.

Calls operator() of encoder with data_.

bool OSB_LIB::Asn1Buffer::getData	(	const Asn1Encoder &	encoder,
		bool	force
	)			[private]

Get the data of a constructed ASN.1 type.

Parameters:

	encoder	Encode to use to get the data.
	force	Flag to add the ASN.1 type even if it has no data.

Returns:

true if ASN.1 data have been generated, else false.

Calls operator() of encoder with itself.

size_t OSB_LIB::Asn1Buffer::memberSize

(

)

const [private]

Number of bytes of the members_.

Asn1Buffer& OSB_LIB::Asn1Buffer::operator=

(

const Asn1Buffer &

)

[private]

Prevent assignment until needed: not implemented.

bool OSB_LIB::Asn1Buffer::write

(

FILE *

out

)

const

Write binary ASN.1 data to an output file.

Returns:

true if successful, else false.

---

Friends And Related Function Documentation

friend class Asn1BufferCache [friend]

Give access to totSize_.

Definition at line 129 of file asn1writer.h.

friend class Asn1Writer [friend]

Allow the ASN.1 writer to:

• own a buffer
• call getData().

Definition at line 127 of file asn1writer.h.

---

Member Data Documentation

Asn1BufferCache& OSB_LIB::Asn1Buffer::cache_ [private]

Cache that owns the buffer.

Definition at line 246 of file asn1writer.h.

Asn1Data OSB_LIB::Asn1Buffer::data_ [private]

Binary ASN.1 data.

Definition at line 234 of file asn1writer.h.

Asn1Len OSB_LIB::Asn1Buffer::dataLen_ [private]

Size of the encoded data.

Definition at line 241 of file asn1writer.h.

Members OSB_LIB::Asn1Buffer::members_ [private]

Members of the ASN.1 constructed type.

Definition at line 236 of file asn1writer.h.

Asn1Tag OSB_LIB::Asn1Buffer::tag_ [private]

Tag of the encoded data.

Definition at line 239 of file asn1writer.h.

Asn1Data OSB_LIB::Asn1Buffer::tagBuf_ [private]

Buffer to encode the tag and data length.

Definition at line 244 of file asn1writer.h.

size_t OSB_LIB::Asn1Buffer::totSize_ [private]

Size of binary data, incl. tag and data length.

At the same time this used as indicator if the buffer must be cleared (actually read: contains data).

Definition at line 232 of file asn1writer.h.

---

The documentation for this class was generated from the following file:

• asn1writer.h

---
