OSB_LIB::Billcycle Class Reference

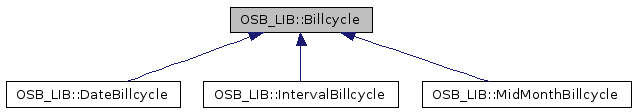

Inheritance diagram for OSB_LIB::Billcycle:

[legend]Collaboration diagram for OSB_LIB::Billcycle:

[legend]List of all members.

---

Detailed Description

Abstract base class for billcycles.

Contains functions to carry out billcycle operations.

Remarks:

Copy and assignment by compiler.

Definition at line 74 of file billcycle.h.

Public Types

• typedef Id< Billcycle > Oid

  Typesafe unique object identifier, database link.


• typedef std::auto_ptr< Billcycle > AutoPtr

  Short-cut for an auto pointer.


• btUnknown = 0
• btIntervalBillcycle = 1
• btDateBillcycle = 2
• btMidMonthBillcycle = 3
• enum Type { btUnknown = 0, btIntervalBillcycle = 1, btDateBillcycle = 2, btMidMonthBillcycle = 3 }

  Supported types of billcycles. More...


Public Member Functions

• virtual ~Billcycle ()

  Virtual destructor.


• AutoPtr clone () const

  Virtual copy construction.


• virtual Date addBillingPeriod (const Date &from) const =0

  Add a billing period to the given start date.


• virtual int readSpecific (const OSB_DB::Session &session)=0

  Read billcycle specific parameters from the database.


Read access to data members

• const Oid & oid () const

  Get the object id.


• const std::string & name () const

  Get the name.


• const std::string & des () const

  Get the description.


Static Public Member Functions

• static long toLong (Type bt)

  Convert a billcycle type to long.


• static Type type (long bt)

  Convert a long to billcycle type.


Private Member Functions

• virtual Billcycle * clone_ () const =0

  Internal virtual copy constructor.


Private Attributes

• Oid id_

  Unique id, database link.


• std::string name_

  Name of billcycle.


• std::string des_

  Description of billcycle.


Friends

• class OSB_DB::BillcycleGw
• class TheBillcycleFactory

  The billcycle factory must be able to set the object id.


---

Member Typedef Documentation

typedef std::auto_ptr<Billcycle> OSB_LIB::Billcycle::AutoPtr

Short-cut for an auto pointer.

For details see quality manual, implementation patterns: Virtual copy construction.

Reimplemented in OSB_LIB::DateBillcycle, OSB_LIB::IntervalBillcycle, and OSB_LIB::MidMonthBillcycle.

Definition at line 90 of file billcycle.h.

typedef Id<Billcycle> OSB_LIB::Billcycle::Oid

Typesafe unique object identifier, database link.

Definition at line 82 of file billcycle.h.

---

Member Enumeration Documentation

enum OSB_LIB::Billcycle::Type

Supported types of billcycles.

The values must correspond with the table BILLCYCLE_TYPE.

In order for the billcycle factory to support creation of each concrete billcycle class, a prototype of it must be registered with the factory. For billcycles provided by the OSB library, this is done in the constructor of the billcycle factory.

Enumerator:

btUnknown
btIntervalBillcycle
btDateBillcycle
btMidMonthBillcycle

Definition at line 103 of file billcycle.h.

---

Constructor & Destructor Documentation

virtual OSB_LIB::Billcycle::~Billcycle

(

)

[inline, virtual]

Virtual destructor.

Definition at line 130 of file billcycle.h.

---

Member Function Documentation

virtual Date OSB_LIB::Billcycle::addBillingPeriod

(

const Date &

from

)

const [pure virtual]

Add a billing period to the given start date.

Each concrete billcycle implements the appropriate logic to compute the end date for a billing period starting on the given start date.

Parameters:

from

Start date of the billing period.

Returns:

the end date of the billing period starting on the start date.

Implemented in OSB_LIB::DateBillcycle, OSB_LIB::IntervalBillcycle, and OSB_LIB::MidMonthBillcycle.

AutoPtr OSB_LIB::Billcycle::clone

(

)

const

Virtual copy construction.

For details see quality manual, implementation patterns.

Reimplemented in OSB_LIB::DateBillcycle, OSB_LIB::IntervalBillcycle, and OSB_LIB::MidMonthBillcycle.

virtual Billcycle* OSB_LIB::Billcycle::clone_

(

)

const [private, pure virtual]

Internal virtual copy constructor.

For details see quality manual, implementation patterns.

Implemented in OSB_LIB::DateBillcycle, OSB_LIB::IntervalBillcycle, and OSB_LIB::MidMonthBillcycle.

const std::string& OSB_LIB::Billcycle::des

(

)

const [inline]

Get the description.

Definition at line 146 of file billcycle.h.

References des_.

const std::string& OSB_LIB::Billcycle::name

(

)

const [inline]

Get the name.

Definition at line 144 of file billcycle.h.

References name_.

const Oid& OSB_LIB::Billcycle::oid

(

)

const [inline]

Get the object id.

Definition at line 142 of file billcycle.h.

References id_.

virtual int OSB_LIB::Billcycle::readSpecific

(

const OSB_DB::Session &

session

)

[pure virtual]

Read billcycle specific parameters from the database.

Reads the billcycle specific parameters for a concrete billcycle, if any.

Parameters:

session

Database session to use.

Returns:

0 in case of success, 1 if specific data not found, >1 for class specific errors.

Implemented in OSB_LIB::DateBillcycle, OSB_LIB::IntervalBillcycle, and OSB_LIB::MidMonthBillcycle.

static long OSB_LIB::Billcycle::toLong

(

Type

bt

)

[static]

Convert a billcycle type to long.

Parameters:

bt

Value to convert.

Returns:

Type corresponding billcycle item type. Its value is btUnknown if `bt' is not supported.

static Type OSB_LIB::Billcycle::type

(

long

bt

)

[static]

Convert a long to billcycle type.

Parameters:

bt

Billcycle type to convert.

Returns:

The corresponsing long value. Its value is (long)btUnknown if `bt' is not supported.

---

Friends And Related Function Documentation

friend class OSB_DB::BillcycleGw [friend]

Reimplemented in OSB_LIB::IntervalBillcycle, and OSB_LIB::MidMonthBillcycle.

Definition at line 75 of file billcycle.h.

friend class TheBillcycleFactory [friend]

The billcycle factory must be able to set the object id.

Definition at line 79 of file billcycle.h.

---

Member Data Documentation

std::string OSB_LIB::Billcycle::des_ [private]

Description of billcycle.

Definition at line 187 of file billcycle.h.

Referenced by des().

Oid OSB_LIB::Billcycle::id_ [private]

Unique id, database link.

Definition at line 185 of file billcycle.h.

Referenced by oid().

std::string OSB_LIB::Billcycle::name_ [private]

Name of billcycle.

Definition at line 186 of file billcycle.h.

Referenced by name().

---

The documentation for this class was generated from the following file:

• billcycle.h

---
