OSB_LIB::CallingCard Class Reference

Inheritance diagram for OSB_LIB::CallingCard:

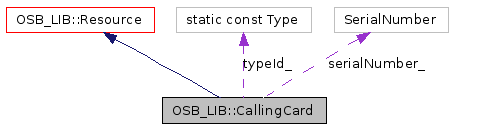

[legend]Collaboration diagram for OSB_LIB::CallingCard:

[legend]List of all members.

---

Detailed Description

Calling card as a resource.

Definition at line 64 of file callingcard.h.

Public Types

• typedef std::string SerialNumber

  Datatype to store the unique serial number.


Public Member Functions

• CallingCard (const Oid &oid=Oid())

  Default constructor with optional object id.


• CallingCard (const Number &rn, const Id< Network > &nw=Id< Network >())

  Constructor with resource number and optional network.


• CallingCard (const Number &rn, const Id2< NetworkElement > &ne)

  Constructor with resource number and network element.


• Type typeId () const

  The type of the concrete resource.


Read access to data members

• const std::string & serialNumber () const

  Access serial number of calling card.


Protected Attributes

• SerialNumber serialNumber_

  Serial number of the calling card.


Private Member Functions

• bool read (const OSB_DB::Session &session)

  ToDo.


• bool insert (const OSB_DB::Session &session)

  ToDo.


• void updData (const OSB_DB::Session &session)

  ToDo.


• bool remove (const OSB_DB::Session &session)

  ToDo.


Static Private Attributes

• static const Type typeId_ = rtCallingCard

  The resource type for calling cards.


Friends

• class OSB_DB::CallingCardGw

  Let the gateway set the serial number.


---

Member Typedef Documentation

typedef std::string OSB_LIB::CallingCard::SerialNumber

Datatype to store the unique serial number.

This is not the resource number, that is used by rating to identify the calling card.

Definition at line 77 of file callingcard.h.

---

Constructor & Destructor Documentation

OSB_LIB::CallingCard::CallingCard

(

const Oid &

oid = Oid()

)

Default constructor with optional object id.

OSB_LIB::CallingCard::CallingCard	(	const Number &	rn,
		const Id< Network > &	nw = Id< Network >()
	)			[explicit]

Constructor with resource number and optional network.

Parameters:

	rn	Resource number.
	nw	Id of the network.

OSB_LIB::CallingCard::CallingCard	(	const Number &	rn,
		const Id2< NetworkElement > &	ne
	)

Constructor with resource number and network element.

Parameters:

	rn	Resource number.
	ne	Id of the network element.

---

Member Function Documentation

bool OSB_LIB::CallingCard::insert

(

const OSB_DB::Session &

session

)

[private, virtual]

ToDo.

Implements OSB_LIB::Resource.

bool OSB_LIB::CallingCard::read

(

const OSB_DB::Session &

session

)

[private, virtual]

ToDo.

Implements OSB_LIB::Resource.

bool OSB_LIB::CallingCard::remove

(

const OSB_DB::Session &

session

)

[private, virtual]

ToDo.

Implements OSB_LIB::Resource.

const std::string& OSB_LIB::CallingCard::serialNumber

(

)

const

Access serial number of calling card.

Type OSB_LIB::CallingCard::typeId

(

)

const [virtual]

The type of the concrete resource.

Returns:

One of the values defined for Type, never rtUnknown.

Implements OSB_LIB::Resource.

void OSB_LIB::CallingCard::updData

(

const OSB_DB::Session &

session

)

[private, virtual]

ToDo.

Implements OSB_LIB::Resource.

---

Friends And Related Function Documentation

friend class OSB_DB::CallingCardGw [friend]

Let the gateway set the serial number.

Definition at line 66 of file callingcard.h.

---

Member Data Documentation

SerialNumber OSB_LIB::CallingCard::serialNumber_ [protected]

Serial number of the calling card.

Definition at line 137 of file callingcard.h.

const Type OSB_LIB::CallingCard::typeId_ = rtCallingCard [static, private]

The resource type for calling cards.

Definition at line 69 of file callingcard.h.

---

The documentation for this class was generated from the following file:

• callingcard.h

---
