OSB_LIB::CdrOutputFile Class Reference

Inheritance diagram for OSB_LIB::CdrOutputFile:

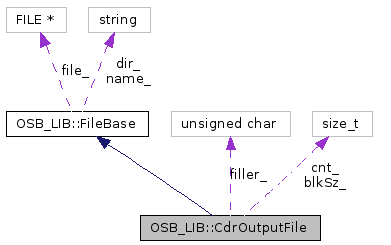

[legend]Collaboration diagram for OSB_LIB::CdrOutputFile:

[legend]List of all members.

---

Detailed Description

Support output of Cdr, ASN.1, and text CDR to file.

Definition at line 231 of file cdrfile.h.

Public Member Functions

• CdrOutputFile (const size_t blockSize=0, const unsigned char filler=0x00)

  Default constructor.


• virtual int close ()

  Close the output file.


• int open (const std::string &path)

  Open the file.


• int open (const std::string &dir, const std::string &name)

  Open the file.


• int flush ()

  Flush the file.


• int write (const Cdr &cdr, Asn1Writer &writer)

  Add a CDR to the file.


• int write (const std::string &record)

  Write a text record to the file.


• int write (const Asn1Data &asn1)

  Write binary ASN.1 data to the file.


Public Attributes

• size_t blkSz_

  ASN.1 block size.


• unsigned char filler_

  Filler character.


• size_t cnt_

  Total bytes written to the block.


Private Member Functions

• CdrOutputFile (const CdrOutputFile &)

  Prevent copying: not implemented.


• CdrOutputFile & operator= (const CdrOutputFile &)

  Prevent assignment: not implemented.


---

Constructor & Destructor Documentation

OSB_LIB::CdrOutputFile::CdrOutputFile	(	const size_t	blockSize = 0,
		const unsigned char	filler = 0x00
	)

Default constructor.

Parameters:

	blockSize	Set the size of the ASN.1 block.
	filler	Character used to fill up the ASN.1 block.

Remarks:

The above parameters is only applicable when writing an ASN.1 data using write(const Asn1Data&) member function.

OSB_LIB::CdrOutputFile::CdrOutputFile

(

const CdrOutputFile &

)

[private]

Prevent copying: not implemented.

---

Member Function Documentation

virtual int OSB_LIB::CdrOutputFile::close

(

)

[virtual]

Close the output file.

Returns:

0 in case of success or file_ was never opened, else errno.

If the file is created with ASN.1 block enabled, meaning parameter "blockSize > 0" in the constructor, the block will be filled with filler if a block exist.

Reimplemented from OSB_LIB::FileBase.

int OSB_LIB::CdrOutputFile::flush

(

)

Flush the file.

Returns:

0 in case of success or file_ was never opened, else errno.

int OSB_LIB::CdrOutputFile::open	(	const std::string &	dir,
		const std::string &	name
	)

Open the file.

Parameters:

	dir	Directory of the output file.
	name	Name of the output file.

Returns:

0 in case of success, else errno.

Note:

Uses fopen() to create the file, i.e., an existing file is overwritten.

int OSB_LIB::CdrOutputFile::open

(

const std::string &

path

)

Open the file.

Parameters:

path

Full path of the output file.

Returns:

0 in case of success, else errno.

Note:

Uses fopen() to create the file, i.e., an existing file is overwritten.

CdrOutputFile& OSB_LIB::CdrOutputFile::operator=

(

const CdrOutputFile &

)

[private]

Prevent assignment: not implemented.

int OSB_LIB::CdrOutputFile::write

(

const Asn1Data &

asn1

)

Write binary ASN.1 data to the file.

Parameters:

asn1

ASN.1 record to write.

Returns:

0 in case of success, else
1: file not open
2: error writing data.

int OSB_LIB::CdrOutputFile::write

(

const std::string &

record

)

Write a text record to the file.

Parameters:

record

Record to write.

Returns:

0 in case of success, else
1: file not open
2: error writing data.

int OSB_LIB::CdrOutputFile::write	(	const Cdr &	cdr,
		Asn1Writer &	writer
	)

Add a CDR to the file.

Parameters:

	cdr	CDR to add.
	writer	ASN.1 writer to use.

Returns:

0 in case of success, else
1: file not open
2: error writing ASN.1 data

---

Member Data Documentation

size_t OSB_LIB::CdrOutputFile::blkSz_

ASN.1 block size.

Definition at line 340 of file cdrfile.h.

size_t OSB_LIB::CdrOutputFile::cnt_

Total bytes written to the block.

Definition at line 344 of file cdrfile.h.

unsigned char OSB_LIB::CdrOutputFile::filler_

Filler character.

Definition at line 342 of file cdrfile.h.

---

The documentation for this class was generated from the following file:

• cdrfile.h

---
