OSB_LIB::CpMapper Class Reference

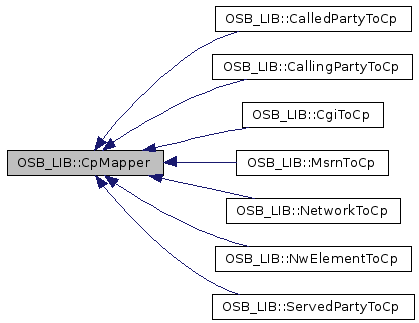

Inheritance diagram for OSB_LIB::CpMapper:

[legend]Collaboration diagram for OSB_LIB::CpMapper:

[legend]List of all members.

---

Detailed Description

Abstract base for all classes mapping to ConnectionPt.

Definition at line 79 of file cpmapper.h.

Public Types

• typedef TypeId< CpMapper > Type

  Type-safe identification of the type.


• typedef std::auto_ptr< CpMapper > AutoPtr

  Short-cut for an auto pointer.


• cpmCgi = 1

  class CgiToCp


• cpmCalledParty = 2

  class CalledPartyToCp


• cpmCallingParty = 3

  class CallingPartyToCp


• cpmNetwork = 4

  class NetworkToCp


• cpmNwElement = 5

  class NwElementToCp


• cpmMsrn = 6

  class MsrnToCp


• cpmServedParty = 7

  class ServedPartyToCp


• enum CpmType {
    cpmCgi = 1, cpmCalledParty = 2, cpmCallingParty = 3, cpmNetwork = 4,
    cpmNwElement = 5, cpmMsrn = 6, cpmServedParty = 7
  }

  Type of mapping class. More...


Public Member Functions

• virtual ~CpMapper ()

  Virtual destructor.


• AutoPtr clone () const

  Virtual copy construction.


• virtual Id< ConnectionPt > map2Cp (Cdr &cdr) const =0

  Map a Cdr attribute to a connection point.


• virtual Type type () const =0

  Type of mapping class.


• CpmType cpmType () const

  Convert a long into a type id.


Static Public Member Functions

• static CpmType cpmType (const Type &type)

  Type of mapping class as long.


Static Public Attributes

• static const CpmType cpmMax_ = cpmServedParty

  Maximum known mapping type.


Private Member Functions

• virtual CpMapper * clone_ () const =0

  Virtual copy construction.


---

Member Typedef Documentation

typedef std::auto_ptr<CpMapper> OSB_LIB::CpMapper::AutoPtr

Short-cut for an auto pointer.

For details see quality manual, implementation patterns: Virtual copy construction.

Reimplemented in OSB_LIB::CgiToCp, OSB_LIB::MsrnToCp, OSB_LIB::NetworkToCp, OSB_LIB::NwElementToCp, OSB_LIB::CalledPartyToCp, OSB_LIB::CallingPartyToCp, and OSB_LIB::ServedPartyToCp.

Definition at line 114 of file cpmapper.h.

typedef TypeId<CpMapper> OSB_LIB::CpMapper::Type

Type-safe identification of the type.

Definition at line 82 of file cpmapper.h.

---

Member Enumeration Documentation

enum OSB_LIB::CpMapper::CpmType

Type of mapping class.

Used in the database gateway only. The values must correspond with the database table CPMAP_TYPE.

The class CpMapperList provides the name and description for each type as configured in the database.

Remarks:

Each of the types must be supported by the class CpMapperFactory.

Enumerator:

cpmCgi	class CgiToCp
cpmCalledParty	class CalledPartyToCp
cpmCallingParty	class CallingPartyToCp
cpmNetwork	class NetworkToCp
cpmNwElement	class NwElementToCp
cpmMsrn	class MsrnToCp
cpmServedParty	class ServedPartyToCp

Definition at line 95 of file cpmapper.h.

---

Constructor & Destructor Documentation

virtual OSB_LIB::CpMapper::~CpMapper

(

)

[inline, virtual]

Virtual destructor.

Definition at line 118 of file cpmapper.h.

---

Member Function Documentation

AutoPtr OSB_LIB::CpMapper::clone

(

)

const

Virtual copy construction.

For details see quality manual, implementation patterns.

Reimplemented in OSB_LIB::CgiToCp, OSB_LIB::MsrnToCp, OSB_LIB::NetworkToCp, OSB_LIB::NwElementToCp, OSB_LIB::CalledPartyToCp, OSB_LIB::CallingPartyToCp, and OSB_LIB::ServedPartyToCp.

virtual CpMapper* OSB_LIB::CpMapper::clone_

(

)

const [private, pure virtual]

Virtual copy construction.

For details see quality manual, implementation patterns.

Implemented in OSB_LIB::CgiToCp, OSB_LIB::MsrnToCp, OSB_LIB::NetworkToCp, OSB_LIB::NwElementToCp, OSB_LIB::CalledPartyToCp, OSB_LIB::CallingPartyToCp, and OSB_LIB::ServedPartyToCp.

static CpmType OSB_LIB::CpMapper::cpmType

(

const Type &

type

)

[static]

Type of mapping class as long.

CpmType OSB_LIB::CpMapper::cpmType

(

)

const

Convert a long into a type id.

Returns:

Type corresponding cp-mapper type. Its value is unknown if type() is not supported.

virtual Id<ConnectionPt> OSB_LIB::CpMapper::map2Cp

(

Cdr &

cdr

)

const [pure virtual]

Map a Cdr attribute to a connection point.

Parameters:

cdr

CDR to map.

Returns:

The id of the mapped connection point, it is not not set if the latter can not be determined.

The caller of the function is responsible to set the corresponding members of Cdr: This function can not know whether it maps an origin or a destination.

Implemented in OSB_LIB::CgiToCp, OSB_LIB::MsrnToCp, OSB_LIB::NetworkToCp, OSB_LIB::NwElementToCp, OSB_LIB::CalledPartyToCp, OSB_LIB::CallingPartyToCp, and OSB_LIB::ServedPartyToCp.

virtual Type OSB_LIB::CpMapper::type

(

)

const [pure virtual]

Type of mapping class.

Implemented in OSB_LIB::CgiToCp, OSB_LIB::MsrnToCp, OSB_LIB::NetworkToCp, OSB_LIB::NwElementToCp, OSB_LIB::CalledPartyToCp, OSB_LIB::CallingPartyToCp, and OSB_LIB::ServedPartyToCp.

---

Member Data Documentation

const CpmType OSB_LIB::CpMapper::cpmMax_ = cpmServedParty [static]

Maximum known mapping type.

Definition at line 106 of file cpmapper.h.

---

The documentation for this class was generated from the following file:

• cpmapper.h

---
