OSB_LIB::DescriptionItem Class Reference

Inheritance diagram for OSB_LIB::DescriptionItem:

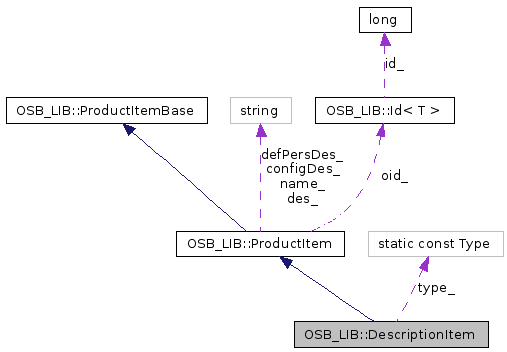

[legend]Collaboration diagram for OSB_LIB::DescriptionItem:

Detailed Description

Descriptive product item.

The class is the simplest concrete implementation for a ProductItem. It only provides a product item id, a name and a description, no personalization is possible.

The main usage of the class is to provide a description for product nodes that are used solely as bucket of other product nodes.

Definition at line 535 of file productitem.h.

Public Types

typedef std::auto_ptr< DescriptionItem > AutoPtr
Short-cut for an auto pointer.

Public Member Functions

DescriptionItem (const Oid &oid, const std::string &name="", const std::string &des="")
Constructor with object id, name and description.
Type type () const
The type of the product item.
AutoPtr clone () const
Virtual copy construction.
std::auto_ptr< PersProductItem > crePersProductItem () const
No personalization is availble for this class.
ProductItem::CfgType canConfigure () const
The configuration type of description item.
ProductItem::DefPersType canDefPers () const
The default personalization type of description item.
CfgPersType canPersonalize () const
The personalization type of description item: none.
const PersProductItem * defPersItem () const
Pointer to the default personalize product item: always 0.

Static Public Attributes

static const Type type_
Type id of the class: PiType::piDescItem.

Private Member Functions

ProductItem * clone_ () const
Virtual copy construction.

Database operations

DescriptionItem doesn't need specialized database operations: All related function just return true.

bool readSpecific (const OSB_DB::Session &session)
Read type specific data members from database.
bool insSpecific (const OSB_DB::Session &session)
Insert type specific members to the database.
bool updSpecific (const OSB_DB::Session &session)
Update type specific members in the database.
bool delSpecific (const OSB_DB::Session &session)
Delete type specific entries from the database.

Member Typedef Documentation

typedef std::auto_ptr<DescriptionItem> OSB_LIB::DescriptionItem::AutoPtr

Short-cut for an auto pointer.

For details see quality manual, implementation patterns: Virtual copy construction.

Reimplemented from OSB_LIB::ProductItem.

Definition at line 540 of file productitem.h.

Constructor & Destructor Documentation

OSB_LIB::DescriptionItem::DescriptionItem	(	const Oid &	oid,
		const std::string &	name = `""`,
		const std::string &	des = `""`
	)

Constructor with object id, name and description.

Remarks:: Copy constructor, assignment and destructor from compiler.

Member Function Documentation

ProductItem::CfgType OSB_LIB::DescriptionItem::canConfigure ( ) const [inline, virtual]

The configuration type of description item.

Implements OSB_LIB::ProductItem.

Definition at line 568 of file productitem.h.

References OSB_LIB::ProductItem::cfgNone.

ProductItem::DefPersType OSB_LIB::DescriptionItem::canDefPers ( ) const [inline, virtual]

The default personalization type of description item.

Implements OSB_LIB::ProductItem.

Definition at line 574 of file productitem.h.

References OSB_LIB::ProductItem::defPersNone.

CfgPersType OSB_LIB::DescriptionItem::canPersonalize ( ) const [inline, virtual]

The personalization type of description item: none.

Implements OSB_LIB::ProductItem.

Definition at line 580 of file productitem.h.

References OSB_LIB::ProductItem::persNone.

AutoPtr OSB_LIB::DescriptionItem::clone ( ) const

Virtual copy construction.

For details see quality manual, implementation patterns.

Reimplemented from OSB_LIB::ProductItem.

ProductItem* OSB_LIB::DescriptionItem::clone_ ( ) const [private, virtual]

Virtual copy construction.

For details see quality manual, implementation patterns.

Implements OSB_LIB::ProductItem.

std::auto_ptr<PersProductItem> OSB_LIB::DescriptionItem::crePersProductItem ( ) const [virtual]

No personalization is availble for this class.

Returns:: The function returns 0.

Implements OSB_LIB::ProductItem.

const PersProductItem* OSB_LIB::DescriptionItem::defPersItem ( ) const [inline, virtual]

Pointer to the default personalize product item: always 0.

Implements OSB_LIB::ProductItem.

Definition at line 586 of file productitem.h.

bool OSB_LIB::DescriptionItem::delSpecific ( const OSB_DB::Session & session ) [private, virtual]

Delete type specific entries from the database.

Parameters:

session

Database session to use.

Returns:: True if the item was found and deleted from the database, else false.

Implements OSB_LIB::ProductItem.

bool OSB_LIB::DescriptionItem::insSpecific ( const OSB_DB::Session & session ) [private, virtual]

Insert type specific members to the database.

Parameters:

session

Database session to use.

Returns:: True if the item was inserted into the database, else false.

Implements OSB_LIB::ProductItem.

bool OSB_LIB::DescriptionItem::readSpecific ( const OSB_DB::Session & session ) [private, virtual]

Read type specific data members from database.

Parameters:

session

Database session to use.

Returns:: True if the item was found and read from the database, else false.

Implements OSB_LIB::ProductItem.

Type OSB_LIB::DescriptionItem::type ( ) const [inline, virtual]

The type of the product item.

The function returns the type of the product item. It is needed for only one reason: Corba clients must provide a configuration window that depends on the actual type.

No appropriate design can be provided: Unless on-line clients use the real product item type through-out the whole live cycle of an object, there must be a way to determine the actual type of a product item. No matter how clever we make our design, for on-line clients there will always be one step where they need to determine a product item's type in a switch-like statement. For this step I personally perfer to work with an enumeration type (and compiler warnings) rather than relying on dynamic casts (where errors can be detected only during run-time).
