OSB_LIB::E164Resource Class Reference

Inheritance diagram for OSB_LIB::E164Resource:

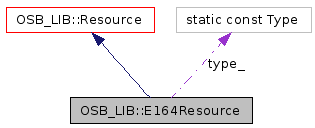

[legend]Collaboration diagram for OSB_LIB::E164Resource:

[legend]List of all members.

---

Detailed Description

E.164 phone numbers as network resources.

The format of the resourceNumber_ is CC-NDC-SN with:
+ CC: country code
+ NDC: national destination code (if applicable)
+ SN: subsbriber number.

Definition at line 64 of file e164resource.h.

Public Member Functions

• E164Resource (const Oid &oid=Oid())

  Constructor with optional object id.


• E164Resource (const Number &rn, const Id< Network > &nw)

  Constructor with resource number and network.


• E164Resource (const Number &rn, const Id2< NetworkElement > &ne)

  Constructor with resource number and network element.


• Type typeId () const

  The type of a E164 resource: rtE164.


• bool numberValid () const

  Validate the resource number.


• std::string phoneNumber () const

  Usual format of a E.164 phone number.


Database operations:

• bool read (const OSB_DB::Session &session)

  Read the resource from the database.


• bool insert (const OSB_DB::Session &session)

  Insert the resource into the database.


• void updData (const OSB_DB::Session &session)

  Update the E.164 resource in the database.


• bool remove (const OSB_DB::Session &session)

  Delete the resource from the database.


Static Public Member Functions

• static bool numberValid (const std::string &number)

  Validate the number of a E.164 resource.


Static Public Attributes

• static const Type type_ = rtE164

  The resource type.


---

Constructor & Destructor Documentation

OSB_LIB::E164Resource::E164Resource

(

const Oid &

oid = Oid()

)

[explicit]

Constructor with optional object id.

OSB_LIB::E164Resource::E164Resource	(	const Number &	rn,
		const Id< Network > &	nw
	)

Constructor with resource number and network.

Parameters:

	rn	The resource number, see class description for format.
	nw	The network of the E.164 resource.

Exceptions:

	OsbException	if rn is not valid, see numberValid.
	OsbException	if rn is empty or too long.

OSB_LIB::E164Resource::E164Resource	(	const Number &	rn,
		const Id2< NetworkElement > &	ne
	)

Constructor with resource number and network element.

Parameters:

	rn	The resource number, see class description for format.
	ne	The network element of the E.164 resource.

Exceptions:

	OsbException	if rn is not valid, see numberValid.
	OsbException	if rn is empty or too long.

---

Member Function Documentation

bool OSB_LIB::E164Resource::insert

(

const OSB_DB::Session &

session

)

[virtual]

Insert the resource into the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

bool OSB_LIB::E164Resource::numberValid

(

)

const

Validate the resource number.

Returns:

true if number contains only decimal digits, else false.

Wraps to numberValid(const std::string&).

static bool OSB_LIB::E164Resource::numberValid

(

const std::string &

number

)

[static]

Validate the number of a E.164 resource.

Parameters:

number

Number to validate.

Returns:

true if number contains only decimal digits, else false.

std::string OSB_LIB::E164Resource::phoneNumber

(

)

const

Usual format of a E.164 phone number.

Returns the resource number in the commonly used format NAC-NDC-SN with:
+ NAC: national access code
+ NDC: national destination code (if applicable)
+ SN: subsbriber number
or
resourceNumber_ if NAC or NDC is not available, which is the case if the network and element are not set or their address information is not available.

bool OSB_LIB::E164Resource::read

(

const OSB_DB::Session &

session

)

[virtual]

Read the resource from the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

bool OSB_LIB::E164Resource::remove

(

const OSB_DB::Session &

session

)

[virtual]

Delete the resource from the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

Type OSB_LIB::E164Resource::typeId

(

)

const [virtual]

The type of a E164 resource: rtE164.

Implements OSB_LIB::Resource.

void OSB_LIB::E164Resource::updData

(

const OSB_DB::Session &

session

)

[virtual]

Update the E.164 resource in the database.

No updates that are specific for a E.164 resource exists,
the function just calls updDataBase().

Parameters:

session

Database session to use.

Implements OSB_LIB::Resource.

---

Member Data Documentation

const Type OSB_LIB::E164Resource::type_ = rtE164 [static]

The resource type.

Definition at line 67 of file e164resource.h.

---

The documentation for this class was generated from the following file:

• e164resource.h

---
