OSB_LIB::ImsiResource Class Reference

Inheritance diagram for OSB_LIB::ImsiResource:

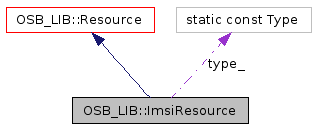

[legend]Collaboration diagram for OSB_LIB::ImsiResource:

[legend]List of all members.

---

Detailed Description

IMSI as network resource.

An IMSI (International Mobile Subscriber Identity) uniquely identifies a mobile phone user.
It is a 15 (sometime 14) digit number that consists of:
+ MCC, 3 digits: mobile country code + MNC, 2 or 3 digits: mobile network code + MSIN, 9 or 10 digits: mobile station identification number

Todo:

An IMSI is always coupled to another resource, e.g., MEID or SIM card.
The question is if an IMSI is "just" an attribute of this other resource or if it can live stand-alone: The latter is expected and in this case we must decide who stores the relationship.

Definition at line 73 of file imsiresource.h.

Public Member Functions

• ImsiResource (const Oid &oid=Oid())

  Constructor with optional object id.


• ImsiResource (const Number &rn, const Id< Network > &nw=Id< Network >())

  Constructor with resource number and optional network.


• Type typeId () const

  The type of an IMSI resource: rtImsi.


Database operations:

• bool read (const OSB_DB::Session &session)

  Read the resource from the database.


• bool insert (const OSB_DB::Session &session)

  Insert the resource into the database.


• void updData (const OSB_DB::Session &session)

  Update the IMSI resource in the database.


• bool remove (const OSB_DB::Session &session)

  Delete the resource from the database.


Static Public Member Functions

• static void validateNumber (const std::string &number)

  Validate the number of an IMSI resource.


Static Public Attributes

• static const Type type_ = rtImsi

  The resource type.


---

Constructor & Destructor Documentation

OSB_LIB::ImsiResource::ImsiResource

(

const Oid &

oid = Oid()

)

[explicit]

Constructor with optional object id.

OSB_LIB::ImsiResource::ImsiResource	(	const Number &	rn,
		const Id< Network > &	nw = Id< Network >()
	)			[explicit]

Constructor with resource number and optional network.

Parameters:

	rn	The resource number, see class description for format.
	nw	The network of the IMSI resource.

Exceptions:

OsbException

from validateNumber().

---

Member Function Documentation

bool OSB_LIB::ImsiResource::insert

(

const OSB_DB::Session &

session

)

[virtual]

Insert the resource into the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

bool OSB_LIB::ImsiResource::read

(

const OSB_DB::Session &

session

)

[virtual]

Read the resource from the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

bool OSB_LIB::ImsiResource::remove

(

const OSB_DB::Session &

session

)

[virtual]

Delete the resource from the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

Type OSB_LIB::ImsiResource::typeId

(

)

const [virtual]

The type of an IMSI resource: rtImsi.

Implements OSB_LIB::Resource.

void OSB_LIB::ImsiResource::updData

(

const OSB_DB::Session &

session

)

[virtual]

Update the IMSI resource in the database.

Parameters:

session

Database session to use.

No updates that are specific for an IMSI resource exists,
the function just calls updData().

Implements OSB_LIB::Resource.

static void OSB_LIB::ImsiResource::validateNumber

(

const std::string &

number

)

[static]

Validate the number of an IMSI resource.

Parameters:

number

Number to validate.

Exceptions:

	OsbException	if the length of number is not 14 or 15.
	OsbException	if number contains non-decimal digits.

---

Member Data Documentation

const Type OSB_LIB::ImsiResource::type_ = rtImsi [static]

The resource type.

Definition at line 76 of file imsiresource.h.

---

The documentation for this class was generated from the following file:

• imsiresource.h

---
