OSB_LIB::NwAddress Class Reference

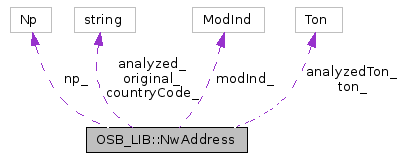

Collaboration diagram for OSB_LIB::NwAddress:

[legend]List of all members.

---

Detailed Description

General purpose network address.

The class is used to uniquely identify a termination point of a connection in a network. This can either be the origin or the destination, but also an intermediate connection point.

See also:

The utility class NormNwAddress used to normalize network addresses.

Definition at line 72 of file nwaddress.h.

Public Types

• npUnknown = 0

  Type of Plan unknown.


• npTelephony = 1

  ISDN/Telephony (CCITT E163/E164).


• npData = 3

  Data Numbering Plan (CCITT X121).


• npTelex = 4

  Telex Numbering Plan (CCITT F.69).


• npLandMobile = 6

  Land Mobile Numbering Plan (CCITT E212).


• npIsdnMobile = 7

  ISDN/mobile (E.214).


• npNational = 8

  National Numbering Plan.


• npPrivate = 9

  Private Numbering Plan.


• tonNotSet = -1

  Type of number not set.


• tonDialled = 0

  Address as dialled by end user.


• tonInternational = 1

  International Number.


• tonNational = 2

  National significant number.


• tonNetworkSpecific = 3
• tonSubscriber = 4

  Subscriber number.


• tonUnknown = 5
• tonAbbreviated = 6

  Abbreviated number.


• miUnmodified = 0

  Unmodified address.


• miModified = 1

  Modified by the network.


• enum Np {
    npUnknown = 0, npTelephony = 1, npData = 3, npTelex = 4,
    npLandMobile = 6, npIsdnMobile = 7, npNational = 8, npPrivate = 9
  }

  Numbering plan (as defined in GSM 09.02). More...


• enum Ton {
    tonNotSet = -1, tonDialled = 0, tonInternational = 1, tonNational = 2,
    tonNetworkSpecific = 3, tonSubscriber = 4, tonUnknown = 5, tonAbbreviated = 6
  }

  Type of number. More...


• enum ModInd { miUnmodified = 0, miModified = 1 }

  Modification indicator. More...


Public Member Functions

• NwAddress ()

  Default constructor.


• void clear ()

  Clear all data members.


Static Public Member Functions

• static Np toNp (long np)

  Convert a long into a numbering plan.


• static long toLong (Np np)

  Convert a numbering plan to long.


• static Ton toTon (long ton)

  Convert a long into a type of number.


• static long toLong (Ton ton)

  Convert a type of number to long.


Public Attributes

• ModInd modInd_

  Modification indicator.


• Np np_

  Numbering plan.


• Ton ton_

  Type of number as provided by the network.


• std::string original_

  Address string as provided by the network.


• Ton analyzedTon_

  Type of number after number analysis.


• std::string analyzed_

  Analyzed address.


• std::string countryCode_

  ISO 3166 3 letter country code (empty if not applicable).


---

Member Enumeration Documentation

enum OSB_LIB::NwAddress::ModInd

Modification indicator.

An indicator which shows if the address, i.e., original_, has been modified by the network.

Enumerator:

miUnmodified	Unmodified address.
miModified	Modified by the network.

Definition at line 166 of file nwaddress.h.

enum OSB_LIB::NwAddress::Np

Numbering plan (as defined in GSM 09.02).

The type identifies the numbering plan associated with a called or calling number.

Remarks:

Numbering plan 5 is reserved for national use.

Todo:

Mapping of numbering plan to resource type.

Enumerator:

npUnknown	Type of Plan unknown.
npTelephony	ISDN/Telephony (CCITT E163/E164).
npData	Data Numbering Plan (CCITT X121).
npTelex	Telex Numbering Plan (CCITT F.69).
npLandMobile	Land Mobile Numbering Plan (CCITT E212).
npIsdnMobile	ISDN/mobile (E.214).
npNational	National Numbering Plan.
npPrivate	Private Numbering Plan.

Definition at line 84 of file nwaddress.h.

enum OSB_LIB::NwAddress::Ton

Type of number.

The type of number (specified in GSM 4.08) describes the format of a destination or origin as provided in the original usage record from the network. It is used to convert the provided information into a standard, i.e., normalized format.

Enumerator:

tonNotSet	Type of number not set.
tonDialled	Address as dialled by end user.
tonInternational	International Number.
tonNational	National significant number.
tonNetworkSpecific	Used to indicate administration/service number specific to the serving network, e.g., to access an operator.
tonSubscriber	Subscriber number.
tonUnknown	Used when the user or the network has no knowledge of the type of number. In this case prefix or escape digits might be present.
tonAbbreviated	Abbreviated number.

Definition at line 104 of file nwaddress.h.

---

Constructor & Destructor Documentation

OSB_LIB::NwAddress::NwAddress

(

)

[inline]

Default constructor.

It initializes

• modInd_: miUnmodified
• np_: npUnknown
• ton_, analyzedTon_: tonNotSet

Definition at line 182 of file nwaddress.h.

---

Member Function Documentation

void OSB_LIB::NwAddress::clear

(

)

Clear all data members.

static long OSB_LIB::NwAddress::toLong

(

Ton

ton

)

[static]

Convert a type of number to long.

Parameters:

ton

Type of number to convert.

Returns:

The corresponsing long value. Its value is long(tonNotSet) if ton is not supported.

static long OSB_LIB::NwAddress::toLong

(

Np

np

)

[static]

Convert a numbering plan to long.

Parameters:

np

Numbering plan to convert.

Returns:

The corresponsing long value. Its value is long(npUnknown) if np is not supported.

static Np OSB_LIB::NwAddress::toNp

(

long

np

)

[static]

Convert a long into a numbering plan.

Parameters:

np

Value to convert.

Returns:

The corresponding numbering plan. Its value is npUnknown if np is not supported.

static Ton OSB_LIB::NwAddress::toTon

(

long

ton

)

[static]

Convert a long into a type of number.

Parameters:

ton

Value to convert.

Returns:

The corresponding type of number. Its value is tonNotSet if ton is not supported.

---

Member Data Documentation

std::string OSB_LIB::NwAddress::analyzed_

Analyzed address.

This member is empty if the address can not be analyzed and/or normalized.

Definition at line 211 of file nwaddress.h.

Ton OSB_LIB::NwAddress::analyzedTon_

Type of number after number analysis.

Its value is tonNotSet if the address is not yet or can not be analyzed and/or normalized.

Definition at line 204 of file nwaddress.h.

std::string OSB_LIB::NwAddress::countryCode_

ISO 3166 3 letter country code (empty if not applicable).

Definition at line 214 of file nwaddress.h.

ModInd OSB_LIB::NwAddress::modInd_

Modification indicator.

Definition at line 191 of file nwaddress.h.

Np OSB_LIB::NwAddress::np_

Numbering plan.

Definition at line 193 of file nwaddress.h.

std::string OSB_LIB::NwAddress::original_

Address string as provided by the network.

Definition at line 197 of file nwaddress.h.

Ton OSB_LIB::NwAddress::ton_

Type of number as provided by the network.

Definition at line 195 of file nwaddress.h.

---

The documentation for this class was generated from the following file:

• nwaddress.h

---
