OSB_LIB::PersUimCard Class Reference

Inheritance diagram for OSB_LIB::PersUimCard:

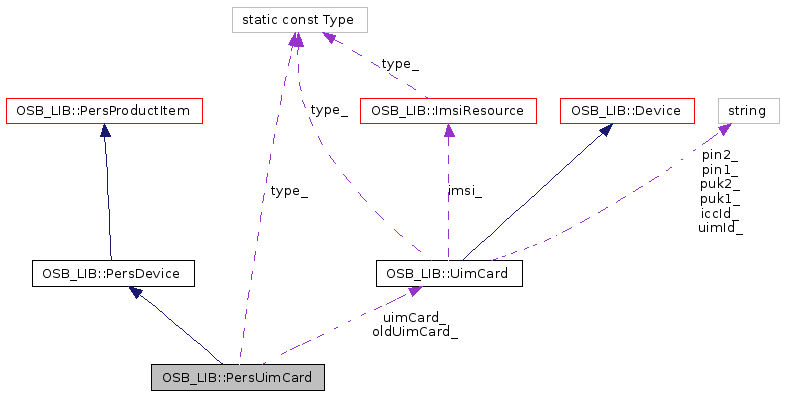

[legend]Collaboration diagram for OSB_LIB::PersUimCard:

[legend]List of all members.

---

Detailed Description

UIM card as parts of pers. products.

Note that no product parts for UIM cards exist. Instead a DeviceItem is configured to generate a pers. UIM card.

Definition at line 65 of file persuimcard.h.

Public Types

• typedef std::auto_ptr< PersUimCard > AutoPtr

  Short-hand for an auto-pointer to a pers. UIM card.


Public Member Functions

• PersUimCard (const Oid &oid=Oid())

  Constructor with optional object id.


• PersUimCard (const PersUimCard &rhs)

  Copy contructor: clone uimCard_ and oldUimCard_.


• PersUimCard & operator= (const PersUimCard &rhs)

  Assignment: maintain uimCard_ and oldUimCard_.


• ~PersUimCard ()

  Destructor: delete uimCard_ and oldUimCard_.


• AutoPtr clone () const

  Virtual copy constructor.


• Type type () const

  The type of the pers. item.


• std::string personalization () const

  Personalization of the UIM card: UIM ID.


• bool canConfig () const

  Configuration of pers. UIM cards is mandatory.


• const UimCard * uimCard () const

  Get the subscribed UIM card.


• const Device * device () const

  Access to the assigned device.


• const Device * oldDevice () const

  Access to the old assigned device.


• void assign (const OSB_DB::Session &session, const std::string &uimId)

  Assign an UIM card.


Static Public Attributes

• static const Type type_

  The pers. item type for UIM cards: PiType::piUimCard.


Private Member Functions

• PersProductItem * clone_ () const

  Create a copy of this pers. UIM card.


• bool readSpecific (const OSB_DB::Session &session)

  Read type specific data members from database.


• bool insSpecific (const OSB_DB::Session &session)

  Insert type specific members to the database.


• bool updSpecific (const OSB_DB::Session &session)

  Update type specific members in the database.


• bool delSpecific (const OSB_DB::Session &session)

  Delete type specific entries from the database.


• Device * device ()

  Non-const access to the assigned device.


• Device * oldDevice ()

  Non-const access to the previous assigned device.


• Device * mkDevice (const Id< Device > &dvcId)

  Create an empty device.


Private Attributes

• UimCard * uimCard_

  Pointer to the assigned UIM card.


• UimCard * oldUimCard_

  Pointer to the previously assigned UIM card.


---

Member Typedef Documentation

typedef std::auto_ptr<PersUimCard> OSB_LIB::PersUimCard::AutoPtr

Short-hand for an auto-pointer to a pers. UIM card.

Reimplemented from OSB_LIB::PersDevice.

Definition at line 68 of file persuimcard.h.

---

Constructor & Destructor Documentation

OSB_LIB::PersUimCard::PersUimCard

(

const Oid &

oid = Oid()

)

Constructor with optional object id.

OSB_LIB::PersUimCard::PersUimCard

(

const PersUimCard &

rhs

)

Copy contructor: clone uimCard_ and oldUimCard_.

OSB_LIB::PersUimCard::~PersUimCard

(

)

Destructor: delete uimCard_ and oldUimCard_.

---

Member Function Documentation

void OSB_LIB::PersUimCard::assign	(	const OSB_DB::Session &	session,
		const std::string &	uimId
	)

Assign an UIM card.

Parameters:

	session	Database session to use.
	uimId	The UIM ID of the UIM card to assign.

Exceptions:

OsbException

if the UIM card does not exist or if it is not available.

bool OSB_LIB::PersUimCard::canConfig

(

)

const [virtual]

Configuration of pers. UIM cards is mandatory.

Implements OSB_LIB::PersProductItem.

AutoPtr OSB_LIB::PersUimCard::clone

(

)

const

Virtual copy constructor.

Returns:

An auto-pointer that owns a copy of this pers. UIM card.

Reimplemented from OSB_LIB::PersDevice.

PersProductItem* OSB_LIB::PersUimCard::clone_

(

)

const [private, virtual]

Create a copy of this pers. UIM card.

Implements OSB_LIB::PersProductItem.

bool OSB_LIB::PersUimCard::delSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Delete type specific entries from the database.

Parameters:

session

Database session to use.

Returns:

True if the item was found and deleted from the database, else false.

Implements OSB_LIB::PersProductItem.

Device* OSB_LIB::PersUimCard::device

(

)

[private, virtual]

Non-const access to the assigned device.

Returns:

A pointer to the assigned device. It is 0 if no device is assigned.

Implements OSB_LIB::PersDevice.

const Device* OSB_LIB::PersUimCard::device

(

)

const [virtual]

Access to the assigned device.

Returns:

A pointer to the assigned device, it is 0 if no device is assigned.

Implements OSB_LIB::PersDevice.

bool OSB_LIB::PersUimCard::insSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Insert type specific members to the database.

Parameters:

session

Database session to use.

Returns:

True if the item was inserted into the database.

Implements OSB_LIB::PersProductItem.

Device* OSB_LIB::PersUimCard::mkDevice

(

const Id< Device > &

dvcId

)

[private, virtual]

Create an empty device.

Parameters:

dvcId

Object id of the device.

Returns:

A pointer to the device, it must not be 0 and its object id is dvcId.

The returned pointer must be owned by the object on which the method is called, the ownership is NOT transferred to the caller.

Remarks:

This member is needed by readPersDevice() where the product item is being constructed from the database.

Note:

Because gcc (and possibly other compilers) support covariant return types only recently, the return type should remain Device*.

Implements OSB_LIB::PersDevice.

Device* OSB_LIB::PersUimCard::oldDevice

(

)

[private, virtual]

Non-const access to the previous assigned device.

Returns:

A pointer to the previous assigned device. It is 0 if no old device is assigned.

Implements OSB_LIB::PersDevice.

const Device* OSB_LIB::PersUimCard::oldDevice

(

)

const [virtual]

Access to the old assigned device.

Returns:

A pointer to the old assigned device, it is 0 if no old device is assigned.

Implements OSB_LIB::PersDevice.

PersUimCard& OSB_LIB::PersUimCard::operator=

(

const PersUimCard &

rhs

)

Assignment: maintain uimCard_ and oldUimCard_.

std::string OSB_LIB::PersUimCard::personalization

(

)

const [virtual]

Personalization of the UIM card: UIM ID.

Implements OSB_LIB::PersProductItem.

bool OSB_LIB::PersUimCard::readSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Read type specific data members from database.

Parameters:

session

Database session to use.

Returns:

True if the item was found and read from the database, else false.

Implements OSB_LIB::PersProductItem.

Type OSB_LIB::PersUimCard::type

(

)

const [virtual]

The type of the pers. item.

Implements OSB_LIB::ProductItemBase.

const UimCard* OSB_LIB::PersUimCard::uimCard

(

)

const

Get the subscribed UIM card.

Returns:

The UIM card linked to this pers. part.
It is 0 if no UIM card was assigned yet.

bool OSB_LIB::PersUimCard::updSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Update type specific members in the database.

Parameters:

session

Database session to use.

Returns:

True if the item was found and updated in the database, else false.

Implements OSB_LIB::PersProductItem.

---

Member Data Documentation

UimCard* OSB_LIB::PersUimCard::oldUimCard_ [private]

Pointer to the previously assigned UIM card.

Definition at line 158 of file persuimcard.h.

const Type OSB_LIB::PersUimCard::type_ [static]

The pers. item type for UIM cards: PiType::piUimCard.

Definition at line 71 of file persuimcard.h.

UimCard* OSB_LIB::PersUimCard::uimCard_ [private]

Pointer to the assigned UIM card.

Definition at line 156 of file persuimcard.h.

---

The documentation for this class was generated from the following file:

• persuimcard.h

---
