OSB_LIB::RpEvalTrunk Class Reference

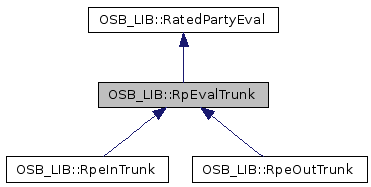

Inheritance diagram for OSB_LIB::RpEvalTrunk:

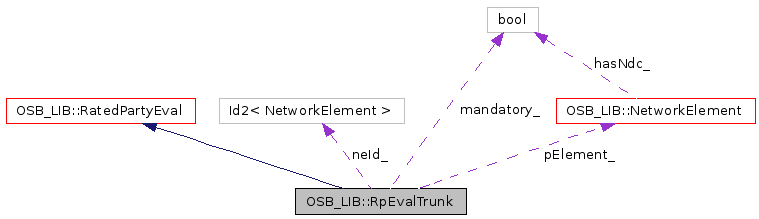

[legend]Collaboration diagram for OSB_LIB::RpEvalTrunk:

[legend]List of all members.

---

Detailed Description

Rated party evaluator for trunk groups: base class.

Definition at line 62 of file rpevaltrkgrp.h.

Public Types

• paramAllowEmpty = 0

  Empty trunk as error: boolean.


• paramNumParam

  Number of parameters.


• enum Param { paramAllowEmpty = 0, paramNumParam }

  Evaluator parameters:. More...


Public Member Functions

• RpEvalTrunk (const Oid &oid, const RpType &rpType)

  Constructor with object id and supported rated party type.


• bool requiresCache () const

  Resource cache needed?


Parameter handling:

• int numParam () const

  Configuration of evaluator possible? Yes: 1.


• bool mandatory () const

  Flag if an external trunk group is required.


• void setMandatory (bool mandat)

  Set flag if an external trunk group is required.


Protected Member Functions

• const NetworkElement * getElement (const OSB_LIB::Cdr &cdr) const

  Get the network element for a CDR.


Private Member Functions

• bool setParam (int index, const std::string &param)

  Set a parameter for the evaluator.


• std::string getParam (int index) const

  Get a configuration parameter of the evaluator.


Private Attributes

• bool mandatory_

  Flag if an external trunk group is required.


Caching of the network element:

• Id2< NetworkElement > neId_

  Id of network and element of the last Cdr.


• const NetworkElement * pElement_

  Pointer to the last used network element, it may be 0!


---

Member Enumeration Documentation

enum OSB_LIB::RpEvalTrunk::Param

Evaluator parameters:.

Enumerator:

paramAllowEmpty	Empty trunk as error: boolean.
paramNumParam	Number of parameters.

Definition at line 65 of file rpevaltrkgrp.h.

---

Constructor & Destructor Documentation

OSB_LIB::RpEvalTrunk::RpEvalTrunk	(	const Oid &	oid,
		const RpType &	rpType
	)

Constructor with object id and supported rated party type.

---

Member Function Documentation

const NetworkElement* OSB_LIB::RpEvalTrunk::getElement

(

const OSB_LIB::Cdr &

cdr

)

const [protected]

Get the network element for a CDR.

Parameters:

cdr

CDR to use.

Returns:

Pointer to the network element of cdr.
It is 0 if the id of the element is not set or
the element was not loaded by the NetworkManager.

std::string OSB_LIB::RpEvalTrunk::getParam

(

int

index

)

const [private, virtual]

Get a configuration parameter of the evaluator.

Parameters:

index

Index of the parameter to retrieve.

Returns:

An empty string for an unsupported index, else the value of mandatory(): "x" if set, "n" if not.

Implements OSB_LIB::RatedPartyEval.

bool OSB_LIB::RpEvalTrunk::mandatory

(

)

const

Flag if an external trunk group is required.

If set, getParty() return an error if the trunk group is not external or empty; else noCdr is returned.

int OSB_LIB::RpEvalTrunk::numParam

(

)

const [virtual]

Configuration of evaluator possible? Yes: 1.

Implements OSB_LIB::RatedPartyEval.

bool OSB_LIB::RpEvalTrunk::requiresCache

(

)

const [virtual]

Resource cache needed?

Returns:

Always true.

Implements OSB_LIB::RatedPartyEval.

void OSB_LIB::RpEvalTrunk::setMandatory

(

bool

mandat

)

Set flag if an external trunk group is required.

bool OSB_LIB::RpEvalTrunk::setParam	(	int	index,
		const std::string &	param
	)			[private, virtual]

Set a parameter for the evaluator.

Parameters:

	index	Index of the parameter to set.
	param	Value of the parameter.

Returns:

true if index is paramAllowEmpty, else false.

Implements OSB_LIB::RatedPartyEval.

---

Member Data Documentation

bool OSB_LIB::RpEvalTrunk::mandatory_ [private]

Flag if an external trunk group is required.

See mandatory() for details.

Definition at line 148 of file rpevaltrkgrp.h.

Id2<NetworkElement> OSB_LIB::RpEvalTrunk::neId_ [mutable, private]

Id of network and element of the last Cdr.

Definition at line 153 of file rpevaltrkgrp.h.

const NetworkElement* OSB_LIB::RpEvalTrunk::pElement_ [mutable, private]

Pointer to the last used network element, it may be 0!

Definition at line 155 of file rpevaltrkgrp.h.

---

The documentation for this class was generated from the following file:

• rpevaltrkgrp.h

---
