OSB_LIB::ServiceElement Class Reference

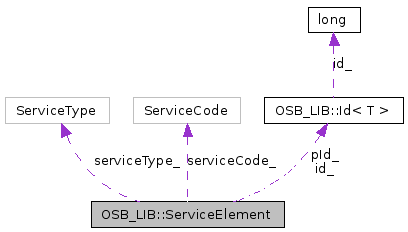

Collaboration diagram for OSB_LIB::ServiceElement:

[legend]List of all members.

Detailed Description

ServiceElement represents the "actual network service".

Every "actual network service" (e.g. T11, S21) is represented by an instance of class ServiceElement.

Definition at line 65 of file service.h.

Public Types

typedef Id< ServiceElement > Oid
Typesave object identification, database link.
typedef unsigned char ServiceCode
Declare char as ServiceCode.
stUnknown = '?'
gsmTelephony = 'T'
GSM telephony services.
gsmBearer = 'B'
GSM bearer services.
gsmSupplementary = 'S'
GSM supplementary services.
pstnTelephony = 'P'
PSTN telephony services.
isdnTelephony = 'I'
ISDN telephony services.
stMax = 0xff
enum ServiceType {
stUnknown = '?', gsmTelephony = 'T', gsmBearer = 'B', gsmSupplementary = 'S',
pstnTelephony = 'P', isdnTelephony = 'I', stMax = 0xff
}
Available service types. More...

Public Member Functions

ServiceElement ()
Default constructor.
ServiceElement (const Oid &oid, ServiceType type, ServiceCode code, const Oid pid)
Constructor of the service element class.
ServiceElement (ServiceType type, ServiceCode code)
Constructor with object id.
const std::string shortCode () const
3 letter service identifier.

Read access to the data member:

const Oid & oid () const
Retrieve the object's id_.
const ServiceType & serviceType () const
Retrieve the object's serviceType_.
const ServiceCode & serviceCode () const
Retrieve the object's serviceCode_.
const Oid & pId () const
Retrieve the object's parent's id_.

Database operations:

bool read (const OSB_DB::Session &session)
Read a service element from database.
bool insert (const OSB_DB::Session &session)
Insert a service element into database.
bool update (const OSB_DB::Session &session)
Update a service element in the database.
bool remove (const OSB_DB::Session &session)
Remove a service element from database.

Equality operator:

bool operator== (const ServiceElement &se) const
Compare two ServiceElement whether they have the same serviceType_ and serviceCode_.
bool operator< (const ServiceElement &rhs) const
Less than operator for service elements.

Static Public Member Functions

Utility functions:

static char toChar (const ServiceType st)
Convert service type to one character database code.
static ServiceType toServiceType (char c)
Convert one character database code to a ServiceType.
static std::string toHex (ServiceCode c)
Show service code as 2 Hex numbers.

Private Attributes

Oid id_
Database link of this object.
ServiceType serviceType_
Network service type.
ServiceCode serviceCode_
Numbering appended to the serviceType_ to show the actual network service.
Oid pId_
Database link of the parent object.

Friends

struct OSB_DB::ServiceElementGw
The database gateway needs to populate data members after construction.

Member Typedef Documentation

typedef Id<ServiceElement> OSB_LIB::ServiceElement::Oid

Typesave object identification, database link.

Definition at line 73 of file service.h.

typedef unsigned char OSB_LIB::ServiceElement::ServiceCode

Declare char as ServiceCode.

Definition at line 76 of file service.h.

Member Enumeration Documentation

enum OSB_LIB::ServiceElement::ServiceType

Available service types.

Remarks:: When adding a new service type, change the static member functions toChar and toServiceType accordingly.

Enumerator:

stUnknown
gsmTelephony	GSM telephony services.
gsmBearer	GSM bearer services.
gsmSupplementary	GSM supplementary services.
pstnTelephony	PSTN telephony services.
isdnTelephony	ISDN telephony services.
stMax

Definition at line 84 of file service.h.

Constructor & Destructor Documentation

OSB_LIB::ServiceElement::ServiceElement ( )

Default constructor.

It initializes:

serviceType_ with stUnknown
serviceCode_ with 0x00.

OSB_LIB::ServiceElement::ServiceElement	(	const Oid &	oid,
		ServiceType	type,
		ServiceCode	code,
		const Oid	pid
	)

Constructor of the service element class.

This constructor will create an instance of ServiceElement that represent an 'actual network service'.

Parameters:

	oid	Unique id and database links of this object.
	type	Type of the service.
	code	Numbering that shows the exact service.
	pid	Parent id of this object.

OSB_LIB::ServiceElement::ServiceElement	(	ServiceType	type,
		ServiceCode	code
	)

Constructor with object id.

Parameters:

	type	The service type.
	code	The service code.

Use this constructor when the object id and the id of the parent are not relevant.

Member Function Documentation

bool OSB_LIB::ServiceElement::insert ( const OSB_DB::Session & session )

Insert a service element into database.

A new object is inserted. All attribute of the object has been set except object id. The object id will only be set by the function if the insertion is successful.

Returns:: true if success else false.

const Oid& OSB_LIB::ServiceElement::oid ( ) const

Retrieve the object's id_.

bool OSB_LIB::ServiceElement::operator< ( const ServiceElement & rhs ) const

Less than operator for service elements.

Compares 1st by service type and 2nd by service code.

bool OSB_LIB::ServiceElement::operator== ( const ServiceElement & se ) const

Compare two ServiceElement whether they have the same serviceType_ and serviceCode_.

Parameters:

ServiceElement to compare to.

Returns:: true if serviceType_ and serviceCode_ are the same else false.

const Oid& OSB_LIB::ServiceElement::pId ( ) const

Retrieve the object's parent's id_.

bool OSB_LIB::ServiceElement::read ( const OSB_DB::Session & session )

Read a service element from database.

The object id is used to gather other info from database and then populate the object's attributes.

Returns:: true if success else false.

bool OSB_LIB::ServiceElement::remove ( const OSB_DB::Session & session )

Remove a service element from database.

After the function call, oid of this object will be unset to indicate that there is no such entry anymore in the database.

Returns:: true if success else false.

const ServiceCode& OSB_LIB::ServiceElement::serviceCode ( ) const

Retrieve the object's serviceCode_.

const ServiceType& OSB_LIB::ServiceElement::serviceType ( ) const

Retrieve the object's serviceType_.

const std::string OSB_LIB::ServiceElement::shortCode ( ) const

3 letter service identifier.

Returns:

A 3 letter code that (almost) uniquely identifies the service type and code:
The format is TXX with

T: service type ('?' if unknown)
XX: service code as 2 hex-digit string.

static char OSB_LIB::ServiceElement::toChar ( const ServiceType st ) [static]

Convert service type to one character database code.

Parameters:

The service type value to convert.

Exceptions:

Osb

exception if `st' is invalid.

Returns:: The database character code for `st'.

static std::string OSB_LIB::ServiceElement::toHex ( ServiceCode c ) [static]

Show service code as 2 Hex numbers.

Convert the service code, which store internally as type char to 2 HEX numbers represented in a string.

Parameters:

Service code to convert.

Returns:: A 2 hex-digit string representing the service code.

static ServiceType OSB_LIB::ServiceElement::toServiceType ( char c ) [static]

Convert one character database code to a ServiceType.

Remarks:: The caller of the function is responsible to verify the return value and to take appropriate actions should it be `stUnknown', which means the input service type is not recognized.

Parameters:

Character to convert.
