OSB_LIB::TariffSystemItem Class Reference

Inheritance diagram for OSB_LIB::TariffSystemItem:

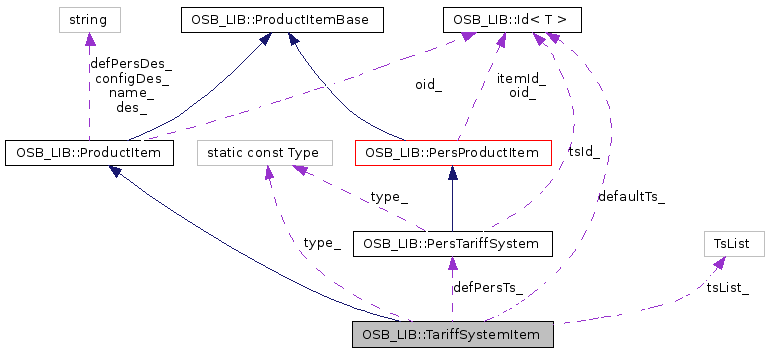

[legend]Collaboration diagram for OSB_LIB::TariffSystemItem:

[legend]List of all members.

---

Detailed Description

Product item to select a tariff system.

This product item stores a list of tariff systems available for a product, one of the tariff systems may be marked as the default for personalization.

Remarks:

Copy constructor and assignment by compiler.

Definition at line 229 of file tsitem.h.

Public Types

• typedef std::auto_ptr< TariffSystemItem > AutoPtr

  Short-cut for an auto pointer.


• typedef Id< TariffSystem > TsId

  Shorthand for a tariff system id.


• typedef std::set< TsId > TsList

  STL container used to store the tariff system ids.


Public Member Functions

• TariffSystemItem (const Oid &oid, const std::string &name="", const std::string &des="")

  Constructor with object id, name and description.


• Type type () const

  Get the product item type id.


• AutoPtr clone () const

  Virtual copy construction.


• std::auto_ptr< PersProductItem > crePersProductItem () const

  Create a personalized tariff system item.


• ProductItem::CfgType canConfigure () const

  The configuration type of tariff system item.


• ProductItem::DefPersType canDefPers () const

  The default personalization type of tariff system item.


• CfgPersType canPersonalize () const

  The personalization type of tariff system item.


• const PersProductItem * defPersItem () const

  Pointer to the default personalize product item.


• bool addTs (const TsId &ts)

  Add a tariff system.


• bool rmTs (const TsId &ts)

  Delete a tariff system.


• const TsList & tsList () const

  List of tariff systems added to the item.


• void clear ()

  Delete all added tariff systems and unset default.


• const TsId & defaultTs () const

  Get the default tariff system.


• void defaultTs (const TsId &ts)

  Set the default tariff system for personalization.


• void clearDefaultTs ()

  Clear the default tariff system.


Static Public Attributes

• static const Type type_

  The product item type id: PiType::piTariffSystem.


Private Member Functions

• ProductItem * clone_ () const

  Virtual copy construction.


Database operations

All the database operations on tariff system items do not commit or rollback the transactions. This is indicated by taking a const OSB_DB::Session as argument.

• bool readSpecific (const OSB_DB::Session &session)

  (Re)read a tariff system item from the database.


• bool insSpecific (const OSB_DB::Session &session)

  Insert a tariff system item to the database.


• bool updSpecific (const OSB_DB::Session &session)

  Update a tariff system item in the database.


• bool delSpecific (const OSB_DB::Session &session)

  Delete a tariff system item from the database.


Private Attributes

• TsList tsList_

  List of tariff systems available for the item.


• TsId defaultTs_

  Default tariff system for personalization.


• PersTariffSystem defPersTs_

  Default personalized tariff system item.


---

Member Typedef Documentation

typedef std::auto_ptr<TariffSystemItem> OSB_LIB::TariffSystemItem::AutoPtr

Short-cut for an auto pointer.

For details see quality manual, implementation patterns: Virtual copy construction.

Reimplemented from OSB_LIB::ProductItem.

Definition at line 235 of file tsitem.h.

typedef Id<TariffSystem> OSB_LIB::TariffSystemItem::TsId

Shorthand for a tariff system id.

Definition at line 361 of file tsitem.h.

typedef std::set<TsId> OSB_LIB::TariffSystemItem::TsList

STL container used to store the tariff system ids.

Definition at line 363 of file tsitem.h.

---

Constructor & Destructor Documentation

OSB_LIB::TariffSystemItem::TariffSystemItem	(	const Oid &	oid,
		const std::string &	name = "",
		const std::string &	des = ""
	)

Constructor with object id, name and description.

Parameters:

	oid	Product item object id.
	name	Name of the tariff system item.
	des	Description of the tariff system item.

---

Member Function Documentation

bool OSB_LIB::TariffSystemItem::addTs

(

const TsId &

ts

)

Add a tariff system.

Parameters:

ts

Id of the tariff system to add.

Returns:

True if ts was not already in tariff system list, else false.

Remarks:

The function does not verify, that the tariff system really exists.

ProductItem::CfgType OSB_LIB::TariffSystemItem::canConfigure

(

)

const [inline, virtual]

The configuration type of tariff system item.

Implements OSB_LIB::ProductItem.

Definition at line 269 of file tsitem.h.

References OSB_LIB::ProductItem::cfgMandatory.

ProductItem::DefPersType OSB_LIB::TariffSystemItem::canDefPers

(

)

const [inline, virtual]

The default personalization type of tariff system item.

Implements OSB_LIB::ProductItem.

Definition at line 274 of file tsitem.h.

References OSB_LIB::ProductItem::defPersOptional.

CfgPersType OSB_LIB::TariffSystemItem::canPersonalize

(

)

const [virtual]

The personalization type of tariff system item.

Implements OSB_LIB::ProductItem.

void OSB_LIB::TariffSystemItem::clear

(

)

Delete all added tariff systems and unset default.

void OSB_LIB::TariffSystemItem::clearDefaultTs

(

)

Clear the default tariff system.

AutoPtr OSB_LIB::TariffSystemItem::clone

(

)

const

Virtual copy construction.

For details see quality manual, implementation patterns.

Reimplemented from OSB_LIB::ProductItem.

ProductItem* OSB_LIB::TariffSystemItem::clone_

(

)

const [private, virtual]

Virtual copy construction.

For details see quality manual, implementation patterns.

Implements OSB_LIB::ProductItem.

std::auto_ptr<PersProductItem> OSB_LIB::TariffSystemItem::crePersProductItem

(

)

const [virtual]

Create a personalized tariff system item.

Returns:

A product item auto pointer. The real type of the item is a PersTariffSystem.
The id of the personalized item is not set, it's tariff system is set to the default TS.

Implements OSB_LIB::ProductItem.

void OSB_LIB::TariffSystemItem::defaultTs

(

const TsId &

ts

)

Set the default tariff system for personalization.

Remarks:

If ts is not yet in the tariff system list, it is automatically added.

Parameters:

ts

Id of the new default tariff system.

const TsId& OSB_LIB::TariffSystemItem::defaultTs

(

)

const

Get the default tariff system.

Returns:

The id of the current default tariff system, it is notSet() if none is defined.

const PersProductItem* OSB_LIB::TariffSystemItem::defPersItem

(

)

const [virtual]

Pointer to the default personalize product item.

Implements OSB_LIB::ProductItem.

bool OSB_LIB::TariffSystemItem::delSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Delete a tariff system item from the database.

The function uses a OSB_DB::TsItemGw to remove data.

Parameters:

session

Database session to use.

Exceptions:

OsbException

as specified by the gateway class

Returns:

True if the tariff system item was found and deleted from the database, else false.

Implements OSB_LIB::ProductItem.

bool OSB_LIB::TariffSystemItem::insSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Insert a tariff system item to the database.

The function uses a OSB_DB::TsItemGw to insert data member to the database.

Parameters:

session

Database session to use.

Exceptions:

OsbException

as specified by the gateway class

Returns:

True if the tariff system item was inserted into the database, else false.

Implements OSB_LIB::ProductItem.

bool OSB_LIB::TariffSystemItem::readSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

(Re)read a tariff system item from the database.

The function uses a OSB_DB::TsItemGw to read the data members.

Parameters:

session

Database session to use.

Exceptions:

OsbException

as specified by the gateway class

Returns:

Currently always true.

Implements OSB_LIB::ProductItem.

bool OSB_LIB::TariffSystemItem::rmTs

(

const TsId &

ts

)

Delete a tariff system.

Remarks:

If the default tariff system is ts it is cleared.

Parameters:

ts

Id of the tariff system to delete.

Returns:

True if ts was in the tariff system list, else false.

const TsList& OSB_LIB::TariffSystemItem::tsList

(

)

const

List of tariff systems added to the item.

Type OSB_LIB::TariffSystemItem::type

(

)

const [inline, virtual]

Get the product item type id.

Implements OSB_LIB::ProductItemBase.

Definition at line 252 of file tsitem.h.

References type_.

bool OSB_LIB::TariffSystemItem::updSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Update a tariff system item in the database.

The function uses a OSB_DB::TsItemGw to update data member in the database.

Parameters:

session

Database session to use.

Exceptions:

OsbException

as specified by the gateway class

Returns:

True if the tariff system item was updated in the database, else false.

Implements OSB_LIB::ProductItem.

---

Member Data Documentation

TsId OSB_LIB::TariffSystemItem::defaultTs_ [private]

Default tariff system for personalization.

Definition at line 417 of file tsitem.h.

PersTariffSystem OSB_LIB::TariffSystemItem::defPersTs_ [private]

Default personalized tariff system item.

Definition at line 419 of file tsitem.h.

TsList OSB_LIB::TariffSystemItem::tsList_ [private]

List of tariff systems available for the item.

Definition at line 415 of file tsitem.h.

const Type OSB_LIB::TariffSystemItem::type_ [static]

The product item type id: PiType::piTariffSystem.

Definition at line 232 of file tsitem.h.

Referenced by type().

---

The documentation for this class was generated from the following file:

• tsitem.h

---
