OSB_LIB::TrunkResource Class Reference

Inheritance diagram for OSB_LIB::TrunkResource:

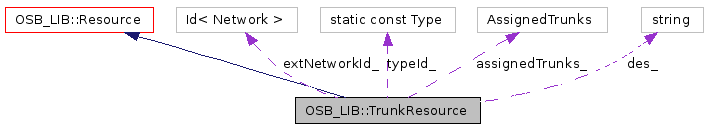

[legend]Collaboration diagram for OSB_LIB::TrunkResource:

[legend]List of all members.

---

Detailed Description

Group trunk groups.

This is user created, non-prepaid resource.

Definition at line 68 of file trunkresource.h.

Public Types

• typedef std::list< AssignedTrunk > AssignedTrunks

  STL-container used for assigned trunk groups.


Public Member Functions

• TrunkResource (const Oid &id=Oid())

  Constructor with optional object id.


• TrunkResource (const Number &rn, const Id< Network > &nw)

  Constructor with resource number and optional network id.


• const TrunkGroup & getTrkGroup (const Id< TrunkGroup > &tgId) const

  Get a trunk group by its id.


• bool isCurAssigned (const Id< TrunkGroup > &tgId) const

  Check whether the trunk group is currently assigned to this trunk resource.


Read access to data members:

• Type typeId () const

  Type of the trunk resource: rtTrunkItem.


• const std::string & des () const

  Description.


• const Id< Network > & extNetwork () const

  The id of the external network.


• const AssignedTrunks & assignedTrks () const

  List with all the assigned trunk groups.


• const AssignedTrunks curAssignedTrks () const

  List with current assigned trunk groups.


• bool canSetExtNw () const

  Check if the external network can be set or not.


Configuration:

• void setDes (const std::string &des)

  Set the description.


• void setExternalNetwork (const Id< Network > &ext)

  Set the partner network.


Database transactions:

• bool read (const OSB_DB::Session &session)

  Read the resource from the database.


• bool insert (const OSB_DB::Session &session)

  Insert the resource into the database.


• void updData (const OSB_DB::Session &session)

  Update the resource in the database.


• bool remove (const OSB_DB::Session &session)

  Delete the resource from the database.


• bool addTrkGroup (const OSB_DB::Session &session, const Date &start, const TrunkGroup &tg)
• bool delTrkGroup (const OSB_DB::Session &session, const Id< TrunkGroup > &tgId)

Static Public Member Functions

• static void sortTgsByPriority (AssignedTrunks &groups)

  Ascending Sort assigned trunk groups by from date.


• static void sortTgsByName (AssignedTrunks &groups)

  Sort assigned trunk groups by name.


Private Member Functions

• bool assign (const AssignedTrunk &assignedTg)

  Add a trunk group to the resource.


• bool deassign (const Id< TrunkGroup > &tgId)

  Remove a trunk group from the resource.


Private Attributes

• std::string des_

  Description of the trunk resource.


• Id< Network > extNetworkId_

  Id of the partner network.


• AssignedTrunks assignedTrunks_

  History of assigned trunk groups.


Static Private Attributes

• static const Type typeId_ = rtTrunkResource

  Identification of the resource type.


Friends

• class OSB_DB::TrunkResourceGw

  The gateway must be able to set the data members.


Classes

• struct AssignedTrunk

  Assignment of trunk group to this trunk resource. More...


• class SameNetwork
• class StatusIsAssigned
• class TrunksAssigned

---

Member Typedef Documentation

typedef std::list<AssignedTrunk> OSB_LIB::TrunkResource::AssignedTrunks

STL-container used for assigned trunk groups.

Definition at line 87 of file trunkresource.h.

---

Constructor & Destructor Documentation

OSB_LIB::TrunkResource::TrunkResource

(

const Oid &

id = Oid()

)

Constructor with optional object id.

OSB_LIB::TrunkResource::TrunkResource	(	const Number &	rn,
		const Id< Network > &	nw
	)

Constructor with resource number and optional network id.

Parameters:

	rn	The resource number.
	nw	The id of the network that owns the trunk resource.

---

Member Function Documentation

bool OSB_LIB::TrunkResource::addTrkGroup	(	const OSB_DB::Session &	session,
		const Date &	start,
		const TrunkGroup &	tg
	)

bool OSB_LIB::TrunkResource::assign

(

const AssignedTrunk &

assignedTg

)

[private]

Add a trunk group to the resource.

Parameters:

assignedTg

Trunk group assignment to add.

Returns:

false if the added trunk group was already assigned, else true. In either case assignedTg is in the list of assigned trunk groups after the function returns.

const AssignedTrunks& OSB_LIB::TrunkResource::assignedTrks

(

)

const

List with all the assigned trunk groups.

bool OSB_LIB::TrunkResource::canSetExtNw

(

)

const

Check if the external network can be set or not.

The external network can be set if the resource has no trunk group assigned and the status of the trunk resource is not rsAssigned.

Returns:

true if can, else false.

const AssignedTrunks OSB_LIB::TrunkResource::curAssignedTrks

(

)

const

List with current assigned trunk groups.

bool OSB_LIB::TrunkResource::deassign

(

const Id< TrunkGroup > &

tgId

)

[private]

Remove a trunk group from the resource.

Parameters:

tgId

Id of the removed trunk group.

Returns:

true if the removed trunk group was previously assigned, else false.

bool OSB_LIB::TrunkResource::delTrkGroup	(	const OSB_DB::Session &	session,
		const Id< TrunkGroup > &	tgId
	)

const std::string& OSB_LIB::TrunkResource::des

(

)

const

Description.

const Id<Network>& OSB_LIB::TrunkResource::extNetwork

(

)

const

The id of the external network.

const TrunkGroup& OSB_LIB::TrunkResource::getTrkGroup

(

const Id< TrunkGroup > &

tgId

)

const

Get a trunk group by its id.

Parameters:

tgId

Id of the trunk group to search.

Exceptions:

OsbException

if the trunk group can not be found or if the trunk group is not assigned to the resource.

Returns:

Reference to the matching trunk group.

This is a utility function for on-line clients, the implementation wraps to TheNetworkManager.

bool OSB_LIB::TrunkResource::insert

(

const OSB_DB::Session &

session

)

[virtual]

Insert the resource into the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

bool OSB_LIB::TrunkResource::isCurAssigned

(

const Id< TrunkGroup > &

tgId

)

const

Check whether the trunk group is currently assigned to this trunk resource.

Returns:

true if currently assigned, else false if currently not assigned.

bool OSB_LIB::TrunkResource::read

(

const OSB_DB::Session &

session

)

[virtual]

Read the resource from the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

bool OSB_LIB::TrunkResource::remove

(

const OSB_DB::Session &

session

)

[virtual]

Delete the resource from the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Implements OSB_LIB::Resource.

void OSB_LIB::TrunkResource::setDes

(

const std::string &

des

)

Set the description.

void OSB_LIB::TrunkResource::setExternalNetwork

(

const Id< Network > &

ext

)

Set the partner network.

Parameters:

ext

The id of the external network.

Exceptions:

OsbException

in case of an error: SameNetwork: ext is the network that owns the trunk resource. TrunksAssigned: the resource has trunk groups assigned. StatusIsAssigned: the status of the trunk resource is rsAssigned.

static void OSB_LIB::TrunkResource::sortTgsByName

(

AssignedTrunks &

groups

)

[static]

Sort assigned trunk groups by name.

Parameters:

groups

List of assigned trunk groups to sort.

static void OSB_LIB::TrunkResource::sortTgsByPriority

(

AssignedTrunks &

groups

)

[static]

Ascending Sort assigned trunk groups by from date.

Parameters:

groups

List of assigned trunk groups to sort.

Type OSB_LIB::TrunkResource::typeId

(

)

const [virtual]

Type of the trunk resource: rtTrunkItem.

Implements OSB_LIB::Resource.

void OSB_LIB::TrunkResource::updData

(

const OSB_DB::Session &

session

)

[virtual]

Update the resource in the database.

Parameters:

session

Database session to use.

Returns:

true in case of success, else false.

Exceptions:

	OsbException	from lock().
	OsbException	from incObjVs().

Implements OSB_LIB::Resource.

---

Friends And Related Function Documentation

friend class OSB_DB::TrunkResourceGw [friend]

The gateway must be able to set the data members.

Definition at line 70 of file trunkresource.h.

---

Member Data Documentation

AssignedTrunks OSB_LIB::TrunkResource::assignedTrunks_ [private]

History of assigned trunk groups.

Definition at line 251 of file trunkresource.h.

std::string OSB_LIB::TrunkResource::des_ [private]

Description of the trunk resource.

Definition at line 247 of file trunkresource.h.

Id<Network> OSB_LIB::TrunkResource::extNetworkId_ [private]

Id of the partner network.

Definition at line 249 of file trunkresource.h.

const Type OSB_LIB::TrunkResource::typeId_ = rtTrunkResource [static, private]

Identification of the resource type.

Definition at line 73 of file trunkresource.h.

---

The documentation for this class was generated from the following file:

• trunkresource.h

---
