OSB_LIB::UserGroup Class Reference

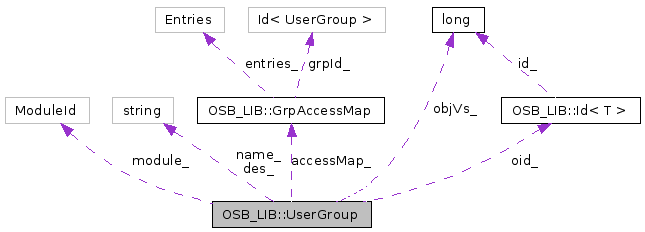

Collaboration diagram for OSB_LIB::UserGroup:

[legend]List of all members.

---

Detailed Description

OSB user group.

A user group defines access rights for one Module.

For an application several groups with different access rights may be defined.
A user can belong only to one group of a given application.

See also:

UserMgmtCfg Manager class to create, modify or delete user groups.

Todo:

For common resources (such as InventoryPool) is should be possible to create a user group for the virtual module All and to grant it to a user.

Definition at line 83 of file osbusrgrp.h.

Database operations:

• void save (const OSB_DB::Session &session)

  Save name and description to the database.


• void remove (const OSB_DB::Session &session)

  Remove the user group from the database.


• void lock (const OSB_DB::Session &session) const

  Lock a user group in the database.


• static void lock (const OSB_DB::Session &session, const Oid &id)

  Lock a user group in the database.


• static void handleObjectStatus (ObjectStatus os, const Oid &id)

  Evalute the object status of a user group.


Public Types

• typedef Id< UserGroup > Oid

  Object id.


Public Member Functions

• UserGroup (const Oid &oid=Oid())

  Constructor with optional object id.


• UserGroup (ModuleId module)

  Constructor with the module of the group.


• void read (const OSB_DB::Session &session)

  Read the user group from the database.


Read access:

• const Oid oid () const

  The object id of the group.


• const ModuleId module () const

  The OSB module of the group.


• const std::string & name () const

  Name of the group.


• const std::string & des () const

  Description for the group.


• const GrpAccessMap & accessMap () const

  Map of access rights.


Write access:

• void setName (const std::string &name)

  Set the name.


• void setDes (const std::string &des)

  Set the description.


Private Member Functions

• void incObjVs (const OSB_DB::Session &session)

  Increment the object version by 1.


Private Attributes

• Oid oid_

  The object id of the group.


• ModuleId module_

  The module of the group.


• std::string name_

  Name of user group.


• std::string des_

  Description of user group.


• long objVs_

  Object version: set by the gateway during database operations.


• GrpAccessMap accessMap_

  Map of access rights.


Friends

• class OSB_DB::UserGroupGw

  Allow the gateway to set data members.


• class UserMgmtCfg

  Allow to call database functions.


---

Member Typedef Documentation

typedef Id<UserGroup> OSB_LIB::UserGroup::Oid

Object id.

Definition at line 90 of file osbusrgrp.h.

---

Constructor & Destructor Documentation

OSB_LIB::UserGroup::UserGroup

(

const Oid &

oid = Oid()

)

[explicit]

Constructor with optional object id.

OSB_LIB::UserGroup::UserGroup

(

ModuleId

module

)

[explicit]

Constructor with the module of the group.

---

Member Function Documentation

const GrpAccessMap& OSB_LIB::UserGroup::accessMap

(

)

const

Map of access rights.

const std::string& OSB_LIB::UserGroup::des

(

)

const

Description for the group.

static void OSB_LIB::UserGroup::handleObjectStatus	(	ObjectStatus	os,
		const Oid &	id
	)			[static, private]

Evalute the object status of a user group.

Parameters:

	os	Object status to evaluate.
	id	The id of the user group for which os is valid.

Exceptions:

	ObjectDeleted
	ObjectModified

void OSB_LIB::UserGroup::incObjVs

(

const OSB_DB::Session &

session

)

[private]

Increment the object version by 1.

Parameters:

session

Database session to use.

Exceptions:

OsbException

(internal error) if the update of the object version in the database fails.

The function should be used only after a successful call of a lock() function.

void OSB_LIB::UserGroup::lock

(

const OSB_DB::Session &

session

)

const [private]

Lock a user group in the database.

Parameters:

session

Database session to use.

Exceptions:

OsbException

from handleObjectStatus().

static void OSB_LIB::UserGroup::lock	(	const OSB_DB::Session &	session,
		const Oid &	id
	)			[static, private]

Lock a user group in the database.

Parameters:

	session	Database session to use.
	id	The object id of the user group to lock.

Exceptions:

OsbException

from handleObjectStatus(), (ObjectModified is not applicable).

const ModuleId OSB_LIB::UserGroup::module

(

)

const

The OSB module of the group.

const std::string& OSB_LIB::UserGroup::name

(

)

const

Name of the group.

const Oid OSB_LIB::UserGroup::oid

(

)

const

The object id of the group.

void OSB_LIB::UserGroup::read

(

const OSB_DB::Session &

session

)

Read the user group from the database.

Parameters:

session

Database session to use.

Exceptions:

ObjectNotFound

if the user group does not exist in the database.

void OSB_LIB::UserGroup::remove

(

const OSB_DB::Session &

session

)

[private]

Remove the user group from the database.

Parameters:

session

Database session to use.

Exceptions:

	OsbException	from incObjVs().
	OsbException	if user belong to the group.

Remove the group and all its access rights from the database.

void OSB_LIB::UserGroup::save

(

const OSB_DB::Session &

session

)

[private]

Save name and description to the database.

Parameters:

session

Database session to use.

Exceptions:

	OsbException	if another group with name() exists.
	OsbException	from lock(const OSB_DB::Session&) const, see there.

void OSB_LIB::UserGroup::setDes

(

const std::string &

des

)

Set the description.

Parameters:

des

Description for the group.

Exceptions:

OsbException

if des is too long.

void OSB_LIB::UserGroup::setName

(

const std::string &

name

)

Set the name.

Parameters:

name

Name of the group.

Exceptions:

	OsbException	if name is empty.
	OsbException	if name is too long.

---

Friends And Related Function Documentation

friend class OSB_DB::UserGroupGw [friend]

Allow the gateway to set data members.

Definition at line 85 of file osbusrgrp.h.

friend class UserMgmtCfg [friend]

Allow to call database functions.

Definition at line 87 of file osbusrgrp.h.

---

Member Data Documentation

GrpAccessMap OSB_LIB::UserGroup::accessMap_ [private]

Map of access rights.

Definition at line 242 of file osbusrgrp.h.

std::string OSB_LIB::UserGroup::des_ [private]

Description of user group.

Definition at line 238 of file osbusrgrp.h.

ModuleId OSB_LIB::UserGroup::module_ [private]

The module of the group.

Definition at line 234 of file osbusrgrp.h.

std::string OSB_LIB::UserGroup::name_ [private]

Name of user group.

Definition at line 236 of file osbusrgrp.h.

long OSB_LIB::UserGroup::objVs_ [private]

Object version: set by the gateway during database operations.

Definition at line 240 of file osbusrgrp.h.

Oid OSB_LIB::UserGroup::oid_ [private]

The object id of the group.

Definition at line 232 of file osbusrgrp.h.

---

The documentation for this class was generated from the following file:

• osbusrgrp.h

---
