OSB_LIB::CdrIoImpl Class Reference

Inheritance diagram for OSB_LIB::CdrIoImpl:

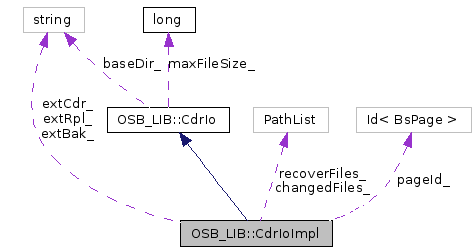

[legend]Collaboration diagram for OSB_LIB::CdrIoImpl:

[legend]List of all members.

---

Detailed Description

This object is responsible to store and retrieve call details records from file system.

This class is responsible to store the Cdr that belongs to a network partner balance sheet to file system (writing them to CDR file(s) in the corresponding balance page directory structure).

Definition at line 75 of file cdrioimpl.h.

Public Member Functions

• CdrIoImpl (const Id< BsPage > &pageId)

  Constructor with id of supported balance page.


• std::auto_ptr< CdrIo > clone () const

  Virtual copy constructor.


• const Id< BsPage > & pageId () const

  Id of the supported balance page.


• void read (CdrList &dest)

  Retrieve the call details records of a balance page.


• void prepareWrite ()

  Prepare the CDR files for writing.


• void write (const CdrList &cdrs, Asn1Writer &writer)

  Write CDRs to the file system.


• void replace (const CdrList &newCdrs, Asn1Writer &writer)

  Replace CDRs on the file system.


• bool commitChanges ()

  Remove backup CDR files.


• bool undoChanges ()

  Undo a previous call to write() or replace().


• bool remove ()

  Remove related CDR files and directories from file system.


Private Types

• typedef std::map< Date, CdrList > CdrGroups

  Container to hold cdrs by date.


• typedef std::set< std::string > PathList

  STL container to store changed CDR files.


Private Member Functions

• size_t getCdrFiles (const std::string &dirName, PathList &dest)

  Get all CDR files.


• size_t getSubDirs (const std::string &dirName, PathList &dest)

  Get all subdirectories.


• void read (CdrList &dest, const std::string &path)

  Read all CDRs from a file.


• void write (const CdrList &cdrs, Asn1Writer &writer, bool mkBackup)

  Write the CDRs to the file system.


• std::string pageDir () const

  Base directroy of the balance page.


• std::string mkFilename (long n) const

  Create filename (without extension) from a number.


• void moveFileAway (const std::string &path)

  Rename an obsolete backup file.


• void groupCdrsByDate (CdrGroups &dest, const CdrList &src)

  Group cdrs by date.


• FILE * openOutputFile (std::string &path, bool mkBackup)

  Open the last regular CDR file, creating a backup.


• std::string newCdrFile (const std::string &dirName, size_t numFiles) const

  Create a new CDR file.


• std::string renameCdrFile (const std::string &filePath, const std::string &extTo)

  Rename a CDR file to its backup.


• void copyFile (const std::string &from, const std::string &to)

  Make a copy of a file.


• bool removeChangedFiles ()

  Remove all changed CDR files.


• bool removeChangedFile (const std::string &path)

  Remove a changed CDR file.


• bool restoreCdrFiles ()

  Restore all changed CDR files.


• bool restoreCdrFile (const std::string &path)

  Recover a CDR file.


Private Attributes

• Id< BsPage > pageId_

  Id of supported balance page.


• PathList changedFiles_

  List of changed CDR files, with extension.


• PathList recoverFiles_

  List of backup CDR files, with extension.


Static Private Attributes

• static const std::string extBak_

  Extension for the backup CDR files.


• static const std::string extCdr_

  Extension for the original CDR files.


• static const std::string extRpl_

  Extension for replaced CDR files.


---

Member Typedef Documentation

typedef std::map<Date, CdrList> OSB_LIB::CdrIoImpl::CdrGroups [private]

Container to hold cdrs by date.

Definition at line 116 of file cdrioimpl.h.

typedef std::set<std::string> OSB_LIB::CdrIoImpl::PathList [private]

STL container to store changed CDR files.

Definition at line 118 of file cdrioimpl.h.

---

Constructor & Destructor Documentation

OSB_LIB::CdrIoImpl::CdrIoImpl

(

const Id< BsPage > &

pageId

)

Constructor with id of supported balance page.

---

Member Function Documentation

std::auto_ptr<CdrIo> OSB_LIB::CdrIoImpl::clone

(

)

const [virtual]

Virtual copy constructor.

Implements OSB_LIB::CdrIo.

bool OSB_LIB::CdrIoImpl::commitChanges

(

)

[virtual]

Remove backup CDR files.

Returns:

true in case of success, else false.

Note:

This member function should not throw if an error occurs. The changes in the database have been commited and the operation should proceed as much as possible.
Instead any errors are written to log.

Implements OSB_LIB::CdrIo.

void OSB_LIB::CdrIoImpl::copyFile	(	const std::string &	from,
		const std::string &	to
	)			[private]

Make a copy of a file.

Parameters:

	from	Path name of source file.
	to	Path name of target file.

Exceptions:

OsbException

for any error: target file exists error opening source file error opening target file error reading from source file error writing to source file

size_t OSB_LIB::CdrIoImpl::getCdrFiles	(	const std::string &	dirName,
		PathList &	dest
	)			[private]

Get all CDR files.

Parameters:

	dirName	Name of directory to search (recursivly).
	dest	Gets the list of CDR files.

Exceptions:

OsbException

if the page directory exists but can not accessed.

Returns:

The number of CDR files or -1 in case of an error (as from ScanDir::scan()).

size_t OSB_LIB::CdrIoImpl::getSubDirs	(	const std::string &	dirName,
		PathList &	dest
	)			[private]

Get all subdirectories.

Parameters:

	dirName	Name of directory to search (recursivly).
	dest	Gets the list of subdirectories.

Exceptions:

OsbException

if the page directory exists but can not accessed.

Returns:

The number of CDR files or -1 in case of an error (as from ScanDir::scan()).

void OSB_LIB::CdrIoImpl::groupCdrsByDate	(	CdrGroups &	dest,
		const CdrList &	src
	)			[private]

Group cdrs by date.

The function groups the list of cdrs by date so that inserting these cdrs into the file system would be faster since the directory structure of these cdrs are stored by date.

Parameters:

	dest	Gets the list of CDRs grouped by date.
	src	The list of CDRs to be grouped.

std::string OSB_LIB::CdrIoImpl::mkFilename

(

long

n

)

const [private]

Create filename (without extension) from a number.

Parameters:

n

Number to use.

Returns:

A character string with minimum 4 characters, left padded with '0'. It does not end with an extension.

void OSB_LIB::CdrIoImpl::moveFileAway

(

const std::string &

path

)

[private]

Rename an obsolete backup file.

Parameters:

path

Path of backup file.

Exceptions:

OsbException

if rename() fails.

The function renames the file path by appending an integer counter.

Note:

If the backup file path does not exist, the function returns immediately without error.

std::string OSB_LIB::CdrIoImpl::newCdrFile	(	const std::string &	dirName,
		size_t	numFiles
	)			const [private]

Create a new CDR file.

Parameters:

	dirName	Directory in which to create the CDR file, it must exist.
	numFiles	Number of CDR files in dirName.

Exceptions:

OsbException

if the creation of the CDR file fails.

Returns:

The path of the new CDR file.

The function increments numFiles until no CDR file with the corresponding name exists.
Then it creates the file in binary write mode and returns its path.

FILE* OSB_LIB::CdrIoImpl::openOutputFile	(	std::string &	path,
		bool	mkBackup
	)			[private]

Open the last regular CDR file, creating a backup.

Parameters:

	path	On input: Directory to use. The function appends a trailing / if needed. On output: Path to the opened CDR file (if the function returns successful).
	mkBackup	Flag if backup copies of modified files must be created.

Exceptions:

OsbException

in case of any error: CDR directory of page does not exist or can not be created. CDR directory of page can not be opened. Error while creating a new CDR file. Error during creation of backup file.

Returns:

Pointer to the regular CDR file, opened in binary append mode.

The function determines the last regular CDR file in the directory dirName, creates a backup copy of this file and opens it in append mode. If no regular CDR file exists in dirName, an empty backup file is created.

std::string OSB_LIB::CdrIoImpl::pageDir

(

)

const [private]

Base directroy of the balance page.

Returns:

baseDir_ + '/' + pageId() + '/'.

const Id<BsPage>& OSB_LIB::CdrIoImpl::pageId

(

)

const [virtual]

Id of the supported balance page.

Implements OSB_LIB::CdrIo.

void OSB_LIB::CdrIoImpl::prepareWrite

(

)

[virtual]

Prepare the CDR files for writing.

Exceptions:

OsbException

for any error encountered.

Implements OSB_LIB::CdrIo.

void OSB_LIB::CdrIoImpl::read	(	CdrList &	dest,
		const std::string &	path
	)			[private]

Read all CDRs from a file.

Parameters:

	dest	STL-container to store the CDR records.
	path	Path of input file.

Exceptions:

OsbException

if path can not be opened in case of an ASN.1 decoding error.

void OSB_LIB::CdrIoImpl::read

(

CdrList &

dest

)

[virtual]

Retrieve the call details records of a balance page.

Parameters:

dest

STL-container to store the CDR records.

Exceptions:

OsbException

for any error encountered.

Implements OSB_LIB::CdrIo.

bool OSB_LIB::CdrIoImpl::remove

(

)

[virtual]

Remove related CDR files and directories from file system.

This function deletes all regular CDR files and, if empty, the directories below and including baseDir_.

Remarks:

The function does not stop if removal of CDR file fails, but continue to remove as many CDR files as possible.

Returns:

False if a regular CDR file cannnot be removed else true.

Implements OSB_LIB::CdrIo.

bool OSB_LIB::CdrIoImpl::removeChangedFile

(

const std::string &

path

)

[private]

Remove a changed CDR file.

Parameters:

path

Path of file to remove.

Returns:

true if successful, false if an error occurred:

• path does not exist,
• path can not be removed.

bool OSB_LIB::CdrIoImpl::removeChangedFiles

(

)

[private]

Remove all changed CDR files.

Returns:

true in case of success, false if one or more errors occurred.

Calls removeChangedFile() for every entry in changedFiles_.

Note:

The function is called from undoChanges() and therefore must not throw.

std::string OSB_LIB::CdrIoImpl::renameCdrFile	(	const std::string &	filePath,
		const std::string &	extTo
	)			[private]

Rename a CDR file to its backup.

Parameters:

	filePath	Path of CDR file.
	extTo	Extension of backup file.

Exceptions:

OsbException

if the backup file exists. if std::rename fails.

Returns:

The path of the backup file.

void OSB_LIB::CdrIoImpl::replace	(	const CdrList &	newCdrs,
		Asn1Writer &	writer
	)			[virtual]

Replace CDRs on the file system.

Parameters:

	newCdrs	STL container with new CDRs.
	writer	ASN.1 writer to use.

Exceptions:

OsbException

for any error encountered.

Implements OSB_LIB::CdrIo.

bool OSB_LIB::CdrIoImpl::restoreCdrFile

(

const std::string &

path

)

[private]

Recover a CDR file.

Parameters:

path

Name of the file to recover, it must end with extBak_ or extRpl_.

Returns:

true in case of success, else false.

The recovery logic is as follows:

• If the file to recover does not exist:
  warning, return false.
• If the file's extension is not extBak_ or extRpl_: warning, return false.
• If the CDR file to restore exists:
  warning, return false.
• Rename the backup to the CDR file.
  If this fails: warning, return false.

bool OSB_LIB::CdrIoImpl::restoreCdrFiles

(

)

[private]

Restore all changed CDR files.

Returns:

true in case of success, false if one or more errors occurred.

Attention:

This function must be called after removeChangedFiles(). Restoring a file will fail if the (changed) CDR file still exists.

Calls removeChangedFile() for every entry in changedFiles_.

Note:

The function is called from undoChanges() and therefore must not throw.

bool OSB_LIB::CdrIoImpl::undoChanges

(

)

[virtual]

Undo a previous call to write() or replace().

Returns:

true in case of success, else false.

Note:

This member function should not throw if an error occurs, because the recovery operation should proceed as much as possible. Instead any errors are written to log.

Implements OSB_LIB::CdrIo.

void OSB_LIB::CdrIoImpl::write	(	const CdrList &	cdrs,
		Asn1Writer &	writer,
		bool	mkBackup
	)			[private]

Write the CDRs to the file system.

Parameters:

	cdrs	List of CDRs to write.
	writer	ASN.1 writer to use.
	mkBackup	Flag if backup copies of modified files must be created.

Exceptions:

OsbException

in case of any error.

void OSB_LIB::CdrIoImpl::write	(	const CdrList &	cdrs,
		Asn1Writer &	writer
	)			[virtual]

Write CDRs to the file system.

Parameters:

	cdrs	List of call details records to write.
	writer	ASN.1 writer to use.

Exceptions:

OsbException

for any error encountered.

Note:

Missing directories are created as needed.

Implements OSB_LIB::CdrIo.

---

Member Data Documentation

PathList OSB_LIB::CdrIoImpl::changedFiles_ [private]

List of changed CDR files, with extension.

Definition at line 378 of file cdrioimpl.h.

const std::string OSB_LIB::CdrIoImpl::extBak_ [static, private]

Extension for the backup CDR files.

Definition at line 368 of file cdrioimpl.h.

const std::string OSB_LIB::CdrIoImpl::extCdr_ [static, private]

Extension for the original CDR files.

Definition at line 370 of file cdrioimpl.h.

const std::string OSB_LIB::CdrIoImpl::extRpl_ [static, private]

Extension for replaced CDR files.

Definition at line 372 of file cdrioimpl.h.

Id<BsPage> OSB_LIB::CdrIoImpl::pageId_ [private]

Id of supported balance page.

Definition at line 376 of file cdrioimpl.h.

PathList OSB_LIB::CdrIoImpl::recoverFiles_ [private]

List of backup CDR files, with extension.

Definition at line 380 of file cdrioimpl.h.

---

The documentation for this class was generated from the following file:

• cdrioimpl.h

---
