OSB_LIB::Ip4Address Class Reference

Inheritance diagram for OSB_LIB::Ip4Address:

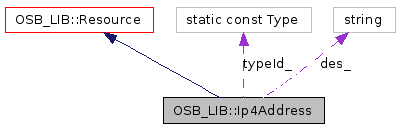

[legend]Collaboration diagram for OSB_LIB::Ip4Address:

[legend]List of all members.

---

Detailed Description

IP address resource with four parts format(x.x.x.x).

This is user created, non-prepaid, network specific, re-usable resource.

Definition at line 73 of file ipaddress.h.

Public Member Functions

• Ip4Address (const Oid &id=Oid())

  Constructor with optional object id.


• Ip4Address (const Number &rn, const Id< Network > &nw)

  Constructor with resource number and network id.


• void setDes (const std::string &des)

  Set the description.


• bool isAvailable () const

  Check if an IP4 address can be assigned to an IP group.


Read access to data members:

• Type typeId () const

  Type of the IP address resource: rtIp4Address.


• const std::string & des () const

  Description.


• bool canUpd () const

  This IP4 address can be update?


• bool canSetGroup () const

  Can set or unset IP group? (Always true here).


Database transactions:

• bool read (const OSB_DB::Session &session)

  Read an IP address resource by its id.


• bool insert (const OSB_DB::Session &session)

  Insert an IP address resource into the database.


• void updData (const OSB_DB::Session &session)

  Update an IP address resource in the database.


• bool remove (const OSB_DB::Session &session)

  Delete an IP address resource from the database.


Private Member Functions

• void verify () const

  To verify whether the resource number(IP address string) is valid.


Private Attributes

• std::string des_

  Description of the IP4 address resource.


Static Private Attributes

• static const Type typeId_ = rtIp4Address

  Identification of the resource type.


Friends

• class OSB_DB::Ip4AddressGw

  The gateway must be able to set the data members.


• class IpGroup

  Allow to change the status.


---

Constructor & Destructor Documentation

OSB_LIB::Ip4Address::Ip4Address

(

const Oid &

id = Oid()

)

Constructor with optional object id.

OSB_LIB::Ip4Address::Ip4Address	(	const Number &	rn,
		const Id< Network > &	nw
	)

Constructor with resource number and network id.

Parameters:

	rn	The resource number(IP address string).
	nw	The id of the network that owns the IP address resource.

---

Member Function Documentation

bool OSB_LIB::Ip4Address::canSetGroup

(

)

const

Can set or unset IP group? (Always true here).

bool OSB_LIB::Ip4Address::canUpd

(

)

const [virtual]

This IP4 address can be update?

Returns:

True if the IP4 address can be update,
else false.

IP4 address is an exception which can be update if it is assigned. The method always returns true.

Reimplemented from OSB_LIB::Resource.

const std::string& OSB_LIB::Ip4Address::des

(

)

const

Description.

bool OSB_LIB::Ip4Address::insert

(

const OSB_DB::Session &

session

)

[virtual]

Insert an IP address resource into the database.

Implements OSB_LIB::Resource.

bool OSB_LIB::Ip4Address::isAvailable

(

)

const [virtual]

Check if an IP4 address can be assigned to an IP group.

Returns:

true if the IP4 address can be assigned to a group else false.

Reimplemented from OSB_LIB::Resource.

bool OSB_LIB::Ip4Address::read

(

const OSB_DB::Session &

session

)

[virtual]

Read an IP address resource by its id.

Implements OSB_LIB::Resource.

bool OSB_LIB::Ip4Address::remove

(

const OSB_DB::Session &

session

)

[virtual]

Delete an IP address resource from the database.

Implements OSB_LIB::Resource.

void OSB_LIB::Ip4Address::setDes

(

const std::string &

des

)

Set the description.

Type OSB_LIB::Ip4Address::typeId

(

)

const [virtual]

Type of the IP address resource: rtIp4Address.

Implements OSB_LIB::Resource.

void OSB_LIB::Ip4Address::updData

(

const OSB_DB::Session &

session

)

[virtual]

Update an IP address resource in the database.

Implements OSB_LIB::Resource.

void OSB_LIB::Ip4Address::verify

(

)

const [private]

To verify whether the resource number(IP address string) is valid.

The IP address will be composed of 4 parts (part1.part2.part3.part4) separated by dots. Each part is a number with range from 0 to 255 except part1 from 1 to 255.

Returns:

true if valid, else false.

---

Friends And Related Function Documentation

friend class IpGroup [friend]

Allow to change the status.

Definition at line 77 of file ipaddress.h.

friend class OSB_DB::Ip4AddressGw [friend]

The gateway must be able to set the data members.

Definition at line 75 of file ipaddress.h.

---

Member Data Documentation

std::string OSB_LIB::Ip4Address::des_ [private]

Description of the IP4 address resource.

Definition at line 159 of file ipaddress.h.

const Type OSB_LIB::Ip4Address::typeId_ = rtIp4Address [static, private]

Identification of the resource type.

Definition at line 80 of file ipaddress.h.

---

The documentation for this class was generated from the following file:

• ipaddress.h

---
