OSB_LIB::IpGroup Class Reference

Inheritance diagram for OSB_LIB::IpGroup:

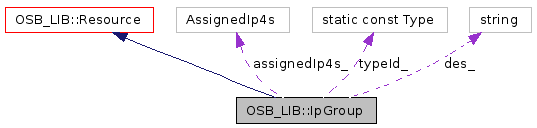

[legend]Collaboration diagram for OSB_LIB::IpGroup:

[legend]List of all members.

Detailed Description

Group IP4 address resources.

This is user created, non-prepaid, network specific, re-usable resource.

Definition at line 201 of file ipaddress.h.

Direction.

enum Direction { dirUnknown = '?', dirIn = 'i', dirOut = 'o' }
The direction of the assignment of an IP address. More...
static char toChar (Direction dir)
Convert a direction into a char.
static Direction direction (char c)
Convert a char to direction.

Configuration:

void setDes (const std::string &des)
Set the description.
bool assign (const AssignedIp4 &assignedIp4)
Add an IP4 address to the group.
bool deassign (const Ip4Address &ip4, Direction dir)
Deassign an IP4 address from the group.

Public Types

typedef std::list< AssignedIp4 > AssignedIp4s
STL-container for assigned IP4 addresses.
dirUnknown = '?'
Unknown direction of IP assignment.
dirIn = 'i'
Incoming IP assignment.
dirOut = 'o'
Outgoing IP assignment.

Public Member Functions

IpGroup (const Oid &id=Oid())
Constructor with optional object id.
IpGroup (const Number &rn, const Id< Network > &nw)
Constructor with resource number and optional network id.
bool addIp4 (const OSB_DB::Session &session, const Date &start, Ip4Address &ip4, Direction dir)
Assign an IP4 to an IP group.
bool delIp4 (const OSB_DB::Session &session, Ip4Address &ip4, Direction dir)
Deassign an IP4 from an IP group.
void sortIp4sByPriority ()
Ascending sort of assigned IP4 addresses by priority:
- 1) resource number
- 2) from date.
void sortIp4sByResNum (bool desc=false)
Sort assigned IP4 addresses by resource number.

Read access to data members:

Type typeId () const
Type of the IP group resource: rtIpGroup.
const std::string & des () const
Description.
const AssignedIp4s & assignedIp4s () const
List with the id's of the assigned IP4 addresses.
const AssignedIp4s curAssignedIp4s () const
List with current assigned IP4 addresses.

Database transactions:

bool read (const OSB_DB::Session &session)
Read the resource from the database.
bool insert (const OSB_DB::Session &session)
Insert the resource into the database.
void updData (const OSB_DB::Session &session)
Update the resource in the database.
bool remove (const OSB_DB::Session &session)
Delete the resource from the database.

Private Member Functions

bool changeIp4Status (const OSB_DB::Session &session, Ip4Address &ip4) const
Change the status of an IP4 address.

Private Attributes

std::string des_
Description of the IP group resource.
AssignedIp4s assignedIp4s_
List of assigned IP4 addresses.

Static Private Attributes

static const Type typeId_ = rtIpGroup
Identification of the resource type.

Friends

class OSB_DB::IpGroupGw
The gateway must be able to set the data members.

Classes

struct AssignedIp4
Assignment of IP4 address to this IP group. More...

Member Typedef Documentation

typedef std::list<AssignedIp4> OSB_LIB::IpGroup::AssignedIp4s

STL-container for assigned IP4 addresses.

Definition at line 250 of file ipaddress.h.

Member Enumeration Documentation

enum OSB_LIB::IpGroup::Direction

The direction of the assignment of an IP address.

Enumerator:

dirUnknown	Unknown direction of IP assignment.
dirIn	Incoming IP assignment.
dirOut	Outgoing IP assignment.

Definition at line 214 of file ipaddress.h.

Constructor & Destructor Documentation

OSB_LIB::IpGroup::IpGroup ( const Oid & id = Oid() )

Constructor with optional object id.

OSB_LIB::IpGroup::IpGroup	(	const Number &	rn,
		const Id< Network > &	nw
	)

Constructor with resource number and optional network id.

Parameters:

	rn	The resource number.
	nw	The id of the network that owns the IP group.

Member Function Documentation

bool OSB_LIB::IpGroup::addIp4	(	const OSB_DB::Session &	session,
		const Date &	start,
		Ip4Address &	ip4,
		Direction	dir
	)

Assign an IP4 to an IP group.

Parameters:

	session	Database session to use.
	start	Start date of assignment period.
	ip4	IP4 to assign.
	dir	Direction to assign.

Returns:: true if the IP4 address was assigned, else false.

Exceptions:

OsbException

different network that the IP4 address and the IP group belong to

The function calls IpGroup::assign to add to list. It also updates the status of IP4 address to rsAssigned and store to database.

bool OSB_LIB::IpGroup::assign ( const AssignedIp4 & assignedIp4 ) [private]

Add an IP4 address to the group.

Parameters:

assignedIp4

Assigned ip4Address object to added.

Returns:: false if the added IP4 address was already assigned, else true. In either case ip4 is in the list of assigned IP4 addresses after the function returns.

const AssignedIp4s& OSB_LIB::IpGroup::assignedIp4s ( ) const

List with the id's of the assigned IP4 addresses.

bool OSB_LIB::IpGroup::changeIp4Status	(	const OSB_DB::Session &	session,
		Ip4Address &	ip4
	)			const `[private]`

Change the status of an IP4 address.

Parameters:

	session	Database session to use.
	ip4	IP4 address for which to change the status.

Returns:: true if the status of the IP address was changed, else false (if the group's status is undefined).

This function is called if the only current assigment of an IP4 address is terminated.

const AssignedIp4s OSB_LIB::IpGroup::curAssignedIp4s ( ) const

List with current assigned IP4 addresses.

bool OSB_LIB::IpGroup::deassign	(	const Ip4Address &	ip4,
		Direction	dir
	)			`[private]`

Deassign an IP4 address from the group.

Set the end date of the assignment to the current date, also update the IP4 object in list.

Parameters:

	ip4	IP4 address to be deassigned.
	dir	Deassigned direction.

Returns:: true if the removed IP4 address was previously assigned, else false.

bool OSB_LIB::IpGroup::delIp4	(	const OSB_DB::Session &	session,
		Ip4Address &	ip4,
		Direction	dir
	)

Deassign an IP4 from an IP group.

Parameters:

	session	Database session to use.
	ip4	IP4 to deassign.
	dir	Direction to deassign.

Returns:: true if the IP4 address was deassigned, else false.

Exceptions:

OsbException

if the id of previously assigned IP group does not match the current IP group.

The function calls IpGroup::deassign to remove IP4 from list. It also updates the status of IP4 address according to the status of the IP group and the status of the pers. IP group if the IP group is rsAssigned. All these changes will be stored to database.

const std::string& OSB_LIB::IpGroup::des ( ) const

Description.

static Direction OSB_LIB::IpGroup::direction ( char c ) [static]

Convert a char to direction.

Parameters:

Value to convert.

Returns:: The corresponding direction. Its value is dirUnknown if `c' is not supported.

bool OSB_LIB::IpGroup::insert ( const OSB_DB::Session & session ) [virtual]

Insert the resource into the database.

Parameters:

session

Database session to use.

Returns:: true in case of success, else false.

Implements OSB_LIB::Resource.

bool OSB_LIB::IpGroup::read ( const OSB_DB::Session & session ) [virtual]

Read the resource from the database.

Parameters:

session

Database session to use.

Returns:: true in case of success, else false.

Implements OSB_LIB::Resource.

bool OSB_LIB::IpGroup::remove ( const OSB_DB::Session & session ) [virtual]

Delete the resource from the database.

Parameters:

session

Database session to use.

Returns:: true in case of success, else false.

Implements OSB_LIB::Resource.

void OSB_LIB::IpGroup::setDes ( const std::string & des )

Set the description.

void OSB_LIB::IpGroup::sortIp4sByPriority ( )

Ascending sort of assigned IP4 addresses by priority:

1) resource number
2) from date.

void OSB_LIB::IpGroup::sortIp4sByResNum ( bool desc = false )

Sort assigned IP4 addresses by resource number.

Parameters:

desc

Flag to sort in descending (true) or ascending (false) order.

static char OSB_LIB::IpGroup::toChar ( Direction dir ) [static]

Convert a direction into a char.

Parameters:

dir

Direction to convert.

Returns:: The corresponsing char value. Its value is (char)dirUnknown if `dir' is not supported.

Type OSB_LIB::IpGroup::typeId ( ) const [virtual]

Type of the IP group resource: rtIpGroup.

Implements OSB_LIB::Resource.

void OSB_LIB::IpGroup::updData ( const OSB_DB::Session & session ) [virtual]

Update the resource in the database.

Parameters:

session

Database session to use.

Returns:: true in case of success, else false.

Exceptions:

	OsbException	from lock().
	OsbException	from incObjVs().

Implements OSB_LIB::Resource.

Friends And Related Function Documentation

friend class OSB_DB::IpGroupGw [friend]

The gateway must be able to set the data members.

Definition at line 203 of file ipaddress.h.

Member Data Documentation

AssignedIp4s OSB_LIB::IpGroup::assignedIp4s_ [private]

List of assigned IP4 addresses.

Definition at line 387 of file ipaddress.h.

std::string OSB_LIB::IpGroup::des_ [private]

Description of the IP group resource.

Definition at line 385 of file ipaddress.h.

const Type OSB_LIB::IpGroup::typeId_ = rtIpGroup [static, private]

Identification of the resource type.

Definition at line 206 of file ipaddress.h.

The documentation for this class was generated from the following file:

ipaddress.h
