OSB_LIB::NumberAnalyzer01 Class Reference

Inheritance diagram for OSB_LIB::NumberAnalyzer01:

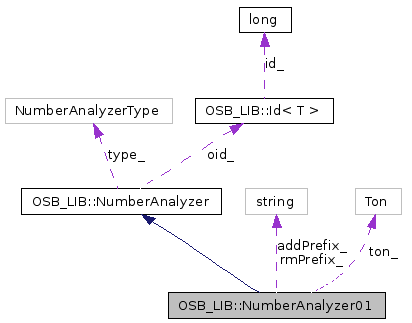

[legend]Collaboration diagram for OSB_LIB::NumberAnalyzer01:

[legend]List of all members.

---

Detailed Description

NumberAnalyzer01 is a concreate class that defines the functionalities needed to analyze and modify the phone numbers in Cdr (called and calling numbers).

Definition at line 61 of file numberanalyzer01.h.

Public Types

• typedef OSB_LIB::NwAddress::Ton Ton

  Declare Ton as a short name for OSB_LIB::NwAddress::Ton.


Public Member Functions

• NumberAnalyzer01 (const Oid &oid=Oid())

  Constructor for creating a new number analyzer 01 or an existing number analyzer.


Member functions to analyze a number:

• virtual bool analyzeCalling (NwAddress &nwAddress) const

  Analyze the calling number.


• virtual bool analyzeCalled (NwAddress &nwAddress) const

  Analyze the called number.


Read access to data members:

• const std::string & rmPrefix () const

  Prefix to be removed.


• const std::string & addPrefix () const

  Prefix to be added.


• const NwAddress::Ton & ton () const

  Type of number after the number analysis.


Set the data members:

• void setRmPrefix (const std::string &rmPrefix)

  Set the prefix to be removed.


• void setAddPrefix (const std::string &addPrefix)

  Set the prefix to be added.


• void setTon (const NwAddress::Ton &ton)

  Set the TON after the number analysis.


Private Member Functions

• virtual NumberAnalyzer * clone_ () const

  Documentation from base class.


Internal functions for manipulating numbers:

• void rmPrefix (NwAddress &nwAddress) const

  Remove prefix from the original number.


• void addPrefix (NwAddress &nwAddress) const

  Add prefix from the original number.


Derieved class specific database operations:

• virtual bool readSpecific (const OSB_DB::Session &session)

  Populate the derieved class data members.


• virtual void insSpecific (const OSB_DB::Session &session)

  Insert derieve class specific data into database.


• virtual void removeSpecific (const OSB_DB::Session &session)

  Delete derieve class specific data from database.


• virtual void updSpecific (const OSB_DB::Session &session)

  Update derieved class specific data in database.


Private Attributes

• std::string rmPrefix_

  Prefix to be removed.


• std::string addPrefix_

  Prefix to be added.


• NwAddress::Ton ton_

  Resulting TON after analyzing.


Friends

• class OSB_DB::NumberAnalyzer01Gw

  Allow gateway to access private members.


---

Member Typedef Documentation

typedef OSB_LIB::NwAddress::Ton OSB_LIB::NumberAnalyzer01::Ton

Declare Ton as a short name for OSB_LIB::NwAddress::Ton.

Definition at line 66 of file numberanalyzer01.h.

---

Constructor & Destructor Documentation

OSB_LIB::NumberAnalyzer01::NumberAnalyzer01

(

const Oid &

oid = Oid()

)

Constructor for creating a new number analyzer 01 or an existing number analyzer.

---

Member Function Documentation

void OSB_LIB::NumberAnalyzer01::addPrefix

(

NwAddress &

nwAddress

)

const [private]

Add prefix from the original number.

This function will add the prefix to NwAddress::original_. It will write the processed number in NwAddress::analyzed_ and set the NwAddress::analyzedTon_ accordingly.

const std::string& OSB_LIB::NumberAnalyzer01::addPrefix

(

)

const

Prefix to be added.

All numbers passed into this number analyzer will be added with the specified prefix.

Returns:

The prefix that will be added. Empty string will be returned if no prefixes need to be added.

virtual bool OSB_LIB::NumberAnalyzer01::analyzeCalled

(

NwAddress &

nwAddress

)

const [virtual]

Analyze the called number.

The analysis will be carried out on the NwAddress::original_. Result of the analysis will be written to NwAddress::analyzed_. The TON of the resulting analyzed number will be written to NwAddress::analyzedTon_.

Returns:

true if further analysis on the called number is needed.

Implements OSB_LIB::NumberAnalyzer.

virtual bool OSB_LIB::NumberAnalyzer01::analyzeCalling

(

NwAddress &

nwAddress

)

const [virtual]

Analyze the calling number.

The analysis will be carried out on the NwAddress::original_. Result of the analysis will be written to NwAddress::analyzed_. The TON of the resulting analyzed number will be written to NwAddress::analyzedTon_.

Returns:

true if further analysis on the calling number is needed.

Implements OSB_LIB::NumberAnalyzer.

virtual NumberAnalyzer* OSB_LIB::NumberAnalyzer01::clone_

(

)

const [private, virtual]

Documentation from base class.

Implements OSB_LIB::NumberAnalyzer.

virtual void OSB_LIB::NumberAnalyzer01::insSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Insert derieve class specific data into database.

Parameters:

session

Database session used.

Implements OSB_LIB::NumberAnalyzer.

virtual bool OSB_LIB::NumberAnalyzer01::readSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Populate the derieved class data members.

Parameters:

session

Database session used.

Returns:

true if operation completed successfully. It return false if the object id is not found in database.

Implements OSB_LIB::NumberAnalyzer.

virtual void OSB_LIB::NumberAnalyzer01::removeSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Delete derieve class specific data from database.

Parameters:

session

Database session used.

Implements OSB_LIB::NumberAnalyzer.

void OSB_LIB::NumberAnalyzer01::rmPrefix

(

NwAddress &

nwAddress

)

const [private]

Remove prefix from the original number.

This function will remove the prefix from NwAddress::original_. It will write the processed number in NwAddress::analyzed_ and set the NwAddress::analyzedTon_ accordingly.

const std::string& OSB_LIB::NumberAnalyzer01::rmPrefix

(

)

const

Prefix to be removed.

If the number passed in starts with the prefix specified, the prefix will be removed.

Returns:

The prefix that will be removed. Empty string will be returned if no prefixes need to be removed.

void OSB_LIB::NumberAnalyzer01::setAddPrefix

(

const std::string &

addPrefix

)

Set the prefix to be added.

Parameters:

addPrefix

Prefix to be added.

void OSB_LIB::NumberAnalyzer01::setRmPrefix

(

const std::string &

rmPrefix

)

Set the prefix to be removed.

Parameters:

rmPrefix

Prefix to be removed.

void OSB_LIB::NumberAnalyzer01::setTon

(

const NwAddress::Ton &

ton

)

Set the TON after the number analysis.

Parameters:

ton

TON after the number analysis.

const NwAddress::Ton& OSB_LIB::NumberAnalyzer01::ton

(

)

const

Type of number after the number analysis.

Returns:

The type of number after the adding or removing of the prefixes.

virtual void OSB_LIB::NumberAnalyzer01::updSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Update derieved class specific data in database.

Parameters:

session

Database session used.

Implements OSB_LIB::NumberAnalyzer.

---

Friends And Related Function Documentation

friend class OSB_DB::NumberAnalyzer01Gw [friend]

Allow gateway to access private members.

Definition at line 63 of file numberanalyzer01.h.

---

Member Data Documentation

std::string OSB_LIB::NumberAnalyzer01::addPrefix_ [private]

Prefix to be added.

Definition at line 215 of file numberanalyzer01.h.

std::string OSB_LIB::NumberAnalyzer01::rmPrefix_ [private]

Prefix to be removed.

Definition at line 212 of file numberanalyzer01.h.

NwAddress::Ton OSB_LIB::NumberAnalyzer01::ton_ [private]

Resulting TON after analyzing.

Definition at line 218 of file numberanalyzer01.h.

---

The documentation for this class was generated from the following file:

• numberanalyzer01.h

---
