OSB_LIB::OsbUser Class Reference

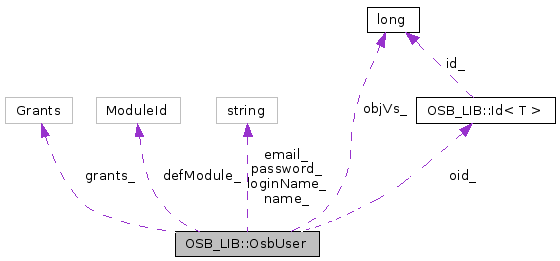

Collaboration diagram for OSB_LIB::OsbUser:

[legend]List of all members.

---

Detailed Description

User of the OSB system.

It represents the users of the OSB system. It also performs user management functions like user creation, user deletion, and user modification.

Todo:

Once we support customer self-care the functionality of the class must be merged into Associate.

Definition at line 79 of file osbuser.h.

Public Types

• typedef Id< OsbUser > Oid

  Unique identifier for the OSB users.


• typedef std::map< ModuleId,
  Id< UserGroup > > Grants

  List of modules and related user group.


Public Member Functions

• OsbUser (const Oid &oid=Oid())

  Default constructor with optional object id.


• OsbUser (const std::string &login, const std::string &password="")

  Constructor with login name and optional password.


Read access to the members.

• const Oid & oid () const
• const long objVs () const
• const std::string & loginName () const
• const std::string & password () const
• const std::string & name () const
• const std::string & email () const
• ModuleId defModule () const

  The default module of the user.


• const Grants & grants () const

  List of modules and related user group available for the user.


• Id< UserGroup > userGroup (ModuleId module) const

  Check if a OSB module is available and get user group.


Modify data members.

• void setLoginName (const std::string &loginName)

  Set the login name.


• void setName (const std::string &name)

  Set the user name.


• void setEmail (const std::string &email)

  Set the user name.


• void setPassword (const std::string &newPw, const std::string &oldPw)

  Set the password.


Maintain available modules and access rights.

• void grant (const UserGroup &grp)

  Grant the module and access rights of user group.


• bool setDefModule (const ModuleId module)

  Set the default module for the user.


• void revoke (const ModuleId module)

  Revoke the access rights for a module.


• void revokeAll ()

  Revoke all access rights.


Private Member Functions

• void setPw (const std::string &pw)

  Set the user's password.


• bool checkPw (const std::string &password)

  Validate the password.


Database operations.

• void read (const OSB_DB::Session &session)

  Read OSB user from the database.


• bool login (const OSB_DB::Session &session)

  Validate the user's credentials.


• void insert (const OSB_DB::Session &session)

  Insert the OSB user object into the database.


• void update (const OSB_DB::Session &session)

  Update the OSB user object in the database.


• void remove (const OSB_DB::Session &session)

  Remove the OSB user object from the database.


Private Attributes

• Oid oid_

  Unique object identifier for the OSB users.


• long objVs_

  Object version.


• std::string loginName_

  Login name of OSB user.


• std::string password_

  Password of OSB user: it is always encrypted.


• std::string name_

  Full name of OSB user.


• std::string email_

  Email address of OSB user.


• Grants grants_

  List of modules and related user groups for the user.


• ModuleId defModule_

  Default module of the user.


Friends

• class OSB_DB::OsbUserGw

  This will access all the private members.


• class UserMgmtCfg

  Allow to call database functions.


---

Member Typedef Documentation

typedef std::map< ModuleId, Id<UserGroup> > OSB_LIB::OsbUser::Grants

List of modules and related user group.

Definition at line 89 of file osbuser.h.

typedef Id<OsbUser> OSB_LIB::OsbUser::Oid

Unique identifier for the OSB users.

Definition at line 87 of file osbuser.h.

---

Constructor & Destructor Documentation

OSB_LIB::OsbUser::OsbUser

(

const Oid &

oid = Oid()

)

Default constructor with optional object id.

OSB_LIB::OsbUser::OsbUser	(	const std::string &	login,
		const std::string &	password = ""
	)			[explicit]

Constructor with login name and optional password.

Parameters:

	login	OSB user login name.
	password	OSB user password.

Exceptions:

	OsbException	if login is empty.
	OsbException	if login or password is too long.

---

Member Function Documentation

bool OSB_LIB::OsbUser::checkPw

(

const std::string &

password

)

[private]

Validate the password.

Parameters:

password

Current password of the user.

Returns:

true if the password is correct, else false.

ModuleId OSB_LIB::OsbUser::defModule

(

)

const [inline]

The default module of the user.

Note:

It may not be set.

Definition at line 121 of file osbuser.h.

References defModule_.

const std::string& OSB_LIB::OsbUser::email

(

)

const [inline]

Definition at line 115 of file osbuser.h.

References email_.

void OSB_LIB::OsbUser::grant

(

const UserGroup &

grp

)

Grant the module and access rights of user group.

Parameters:

grp

The user group to add. It replaces an existing group for the same module.

See also:

setDefModule().

const Grants& OSB_LIB::OsbUser::grants

(

)

const

List of modules and related user group available for the user.

void OSB_LIB::OsbUser::insert

(

const OSB_DB::Session &

session

)

[private]

Insert the OSB user object into the database.

Insert the OSB user into the database. On success, the function sets oid_.

Parameters:

session

Database session to use.

Exceptions:

OsbException

in case of OSB user data validation rules fail. object version conflict. if insert fails for any other (unknown) reason.

bool OSB_LIB::OsbUser::login

(

const OSB_DB::Session &

session

)

[private]

Validate the user's credentials.

Parameters:

session

Database session to use.

Returns:

true if valid.

Reads the user from the database and checks the password.

const std::string& OSB_LIB::OsbUser::loginName

(

)

const [inline]

Definition at line 112 of file osbuser.h.

References loginName_.

const std::string& OSB_LIB::OsbUser::name

(

)

const [inline]

Definition at line 114 of file osbuser.h.

References name_.

const long OSB_LIB::OsbUser::objVs

(

)

const [inline]

Definition at line 111 of file osbuser.h.

References objVs_.

const Oid& OSB_LIB::OsbUser::oid

(

)

const [inline]

Definition at line 110 of file osbuser.h.

References oid_.

const std::string& OSB_LIB::OsbUser::password

(

)

const [inline]

Definition at line 113 of file osbuser.h.

References password_.

void OSB_LIB::OsbUser::read

(

const OSB_DB::Session &

session

)

[private]

Read OSB user from the database.

Parameters:

session

Database session to use.

Exceptions:

ObjectNotFound

if the user does not exist in the database.

Uses oid() or, if not set, the loginName() to read the user from the database.

void OSB_LIB::OsbUser::remove

(

const OSB_DB::Session &

session

)

[private]

Remove the OSB user object from the database.

Parameters:

session

Database session to use.

Exceptions:

OsbException

object version conflict. if deletion fails for any other (unknown) reason.

void OSB_LIB::OsbUser::revoke

(

const ModuleId

module

)

Revoke the access rights for a module.

Parameters:

module

OSB module to remove from the user.

Removes module from grants() and clears defModule() if it is the default module of the user.

void OSB_LIB::OsbUser::revokeAll

(

)

Revoke all access rights.

Removes all grants and clears defModule().

bool OSB_LIB::OsbUser::setDefModule

(

const ModuleId

module

)

Set the default module for the user.

Parameters:

module

New default OSB module.

Returns:

true if the default module was set,
false if the user has not granted a group for module.

See also:

grant().

void OSB_LIB::OsbUser::setEmail

(

const std::string &

email

)

Set the user name.

Parameters:

email

The new e-mail address for the user.

Exceptions:

OsbException

if email is too long.

void OSB_LIB::OsbUser::setLoginName

(

const std::string &

loginName

)

Set the login name.

Parameters:

loginName

The new login name for the user, it must be unique (checked during insert() or update()).

Exceptions:

OsbException

if loginName is empty or too long.

void OSB_LIB::OsbUser::setName

(

const std::string &

name

)

Set the user name.

Parameters:

name

The new name for the user.

Exceptions:

OsbException

if name is too long.

void OSB_LIB::OsbUser::setPassword	(	const std::string &	newPw,
		const std::string &	oldPw
	)

Set the password.

Parameters:

	newPw	The new password of the user.
	oldPw	The old password of the user, if empty it is not validated.

Exceptions:

OsbException

if the old password is not correct.

void OSB_LIB::OsbUser::setPw

(

const std::string &

pw

)

[private]

Set the user's password.

void OSB_LIB::OsbUser::update

(

const OSB_DB::Session &

session

)

[private]

Update the OSB user object in the database.

Parameters:

session

Database session to use.

Exceptions:

OsbException

in case of OSB user data validation rules fail. object version conflict. if the update fails for any other (unknown) reason.

Id<UserGroup> OSB_LIB::OsbUser::userGroup

(

ModuleId

module

)

const

Check if a OSB module is available and get user group.

Parameters:

module

The module to query.

Returns:

The object id of the group that defines the user's access rights for module.
It is not set if the user is not allowed the use the module.

---

Friends And Related Function Documentation

friend class OSB_DB::OsbUserGw [friend]

This will access all the private members.

Definition at line 81 of file osbuser.h.

friend class UserMgmtCfg [friend]

Allow to call database functions.

Definition at line 83 of file osbuser.h.

---

Member Data Documentation

ModuleId OSB_LIB::OsbUser::defModule_ [private]

Default module of the user.

Definition at line 311 of file osbuser.h.

Referenced by defModule().

std::string OSB_LIB::OsbUser::email_ [private]

Email address of OSB user.

Definition at line 307 of file osbuser.h.

Referenced by email().

Grants OSB_LIB::OsbUser::grants_ [private]

List of modules and related user groups for the user.

Definition at line 309 of file osbuser.h.

std::string OSB_LIB::OsbUser::loginName_ [private]

Login name of OSB user.

Definition at line 301 of file osbuser.h.

Referenced by loginName().

std::string OSB_LIB::OsbUser::name_ [private]

Full name of OSB user.

Definition at line 305 of file osbuser.h.

Referenced by name().

long OSB_LIB::OsbUser::objVs_ [private]

Object version.

Definition at line 299 of file osbuser.h.

Referenced by objVs().

Oid OSB_LIB::OsbUser::oid_ [private]

Unique object identifier for the OSB users.

Definition at line 297 of file osbuser.h.

Referenced by oid().

std::string OSB_LIB::OsbUser::password_ [private]

Password of OSB user: it is always encrypted.

Definition at line 303 of file osbuser.h.

Referenced by password().

---

The documentation for this class was generated from the following file:

• osbuser.h

---
