OSB_LIB::PersCallingCard Class Reference

Inheritance diagram for OSB_LIB::PersCallingCard:

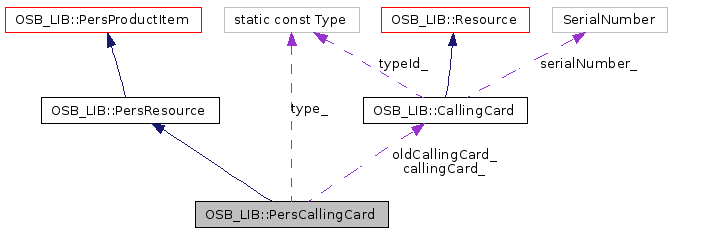

[legend]Collaboration diagram for OSB_LIB::PersCallingCard:

[legend]List of all members.

Detailed Description

Calling card as personalized item.

Definition at line 143 of file callingcard.h.

Public Types

typedef std::auto_ptr< PersCallingCard > AutoPtr
Short-cut for an auto pointer.

Public Member Functions

PersCallingCard (const Oid &oid=Oid())
Constructor with optional object id.
PersCallingCard (const PersCallingCard &rhs)
Copy constructor: copy create the assigned calling card.
PersCallingCard & operator= (const PersCallingCard &rhs)
Assignment operator: copy create the assigned calling card.
~PersCallingCard ()
Destructor: delete the assigned calling card.
AutoPtr clone () const
Virtual copy construction.
Type type () const
The type of the product item.
bool canConfig () const
The configuration type of calling card item.
const Resource * resource () const
Access to the assigned resource.
const Resource * oldResource () const
Documentation from base class.

Static Public Attributes

static const Type type_
The product item type id: PiType::piCallingCard.

Private Member Functions

Resource * resource ()
Non-const access to the assigned resource.
Resource * oldResource ()
Non-const access to the previous assigned resource.
Resource * createResource (const Resource::Oid &resourceId)
void assign (const CallingCard &rhs)
Assign a calling card.
PersProductItem * clone_ () const
Internal virtual copy constructor.

Database operations

All the database operations on personalized calling card do not commit or rollback the transactions. This is indicated by taking a const OSB_DB::Session as argument.

bool readSpecific (const OSB_DB::Session &session)
Read pers calling card data from the database.
bool insSpecific (const OSB_DB::Session &session)
Insert type specific members to the database.
bool updSpecific (const OSB_DB::Session &session)
Update type specific members in the database.
bool delSpecific (const OSB_DB::Session &session)
Delete type specific entries from the database.

Private Attributes

CallingCard * callingCard_
CallingCard * oldCallingCard_
Pointer to the previous assigned calling card.

Friends

class OSB_DB::CallingCardGw

Member Typedef Documentation

typedef std::auto_ptr<PersCallingCard> OSB_LIB::PersCallingCard::AutoPtr

Short-cut for an auto pointer.

For details see quality manual, implementation patterns: Virtual copy construction.

Reimplemented from OSB_LIB::PersResource.

Definition at line 149 of file callingcard.h.

Constructor & Destructor Documentation

OSB_LIB::PersCallingCard::PersCallingCard ( const Oid & oid = Oid() )

Constructor with optional object id.

OSB_LIB::PersCallingCard::PersCallingCard ( const PersCallingCard & rhs )

Copy constructor: copy create the assigned calling card.

OSB_LIB::PersCallingCard::~PersCallingCard ( )

Destructor: delete the assigned calling card.

Member Function Documentation

void OSB_LIB::PersCallingCard::assign ( const CallingCard & rhs ) [private]

Assign a calling card.

bool OSB_LIB::PersCallingCard::canConfig ( ) const [virtual]

The configuration type of calling card item.

Implements OSB_LIB::PersProductItem.

AutoPtr OSB_LIB::PersCallingCard::clone ( ) const

Virtual copy construction.

For details see quality manual, implementation patterns.

Reimplemented from OSB_LIB::PersResource.

PersProductItem* OSB_LIB::PersCallingCard::clone_ ( ) const [private, virtual]

Internal virtual copy constructor.

For details see quality manual, implementation patterns.

Implements OSB_LIB::PersProductItem.

Resource* OSB_LIB::PersCallingCard::createResource ( const Resource::Oid & resourceId ) [private]

bool OSB_LIB::PersCallingCard::delSpecific ( const OSB_DB::Session & session ) [private, virtual]

Delete type specific entries from the database.

Parameters:

session

Database session to use.

Returns:: True if the item was found and deleted from the database, else false.

Implements OSB_LIB::PersProductItem.

bool OSB_LIB::PersCallingCard::insSpecific ( const OSB_DB::Session & session ) [private, virtual]

Insert type specific members to the database.

Parameters:

session

Database session to use.

Returns:: True if the item was inserted into the database.

Implements OSB_LIB::PersProductItem.

Resource* OSB_LIB::PersCallingCard::oldResource ( ) [private, virtual]

Non-const access to the previous assigned resource.

Returns:: A pointer to the previous assigned resource. It is 0 if no old resource is assigned.

Implements OSB_LIB::PersResource.

const Resource* OSB_LIB::PersCallingCard::oldResource ( ) const [virtual]

Documentation from base class.

Implements OSB_LIB::PersResource.

PersCallingCard& OSB_LIB::PersCallingCard::operator= ( const PersCallingCard & rhs )

Assignment operator: copy create the assigned calling card.

bool OSB_LIB::PersCallingCard::readSpecific ( const OSB_DB::Session & session ) [private, virtual]

Read pers calling card data from the database.

For calling cards no personalization specific data exists. The function just wraps to readPersResource().

Parameters:

session

Database session to use.

Returns:: True if the pers calling card was found and read from the database, else false.

Implements OSB_LIB::PersProductItem.

Resource* OSB_LIB::PersCallingCard::resource ( ) [private, virtual]

Non-const access to the assigned resource.

Returns:: A pointer to the assigned resource. It is 0 if no resource is assigned.

Implements OSB_LIB::PersResource.

const Resource* OSB_LIB::PersCallingCard::resource ( ) const [virtual]

Access to the assigned resource.

Returns:: A pointer to the assigned resource, it is 0 if no resource is assigned.

Implements OSB_LIB::PersResource.

Type OSB_LIB::PersCallingCard::type ( ) const [inline, virtual]

The type of the product item.

The function returns the type of the product item. It is needed for only one reason: Corba clients must provide a configuration window that depends on the actual type.

No appropriate design can be provided: Unless on-line clients use the real product item type through-out the whole live cycle of an object, there must be a way to determine the actual type of a product item. No matter how clever we make our design, for on-line clients there will always be one step where they need to determine a product item's type in a switch-like statement. For this step I personally perfer to work with an enumeration type (and compiler warnings) rather than relying on dynamic casts (where errors can be detected only during run-time).
