OSB_LIB::PersE164Item Class Reference

Inheritance diagram for OSB_LIB::PersE164Item:

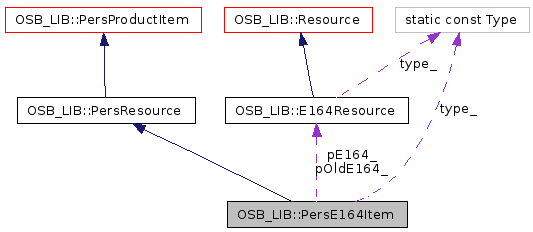

[legend]Collaboration diagram for OSB_LIB::PersE164Item:

[legend]List of all members.

---

Detailed Description

E.164 resource as personalized item.

Definition at line 66 of file e164item.h.

Public Types

• typedef std::auto_ptr< PersE164Item > AutoPtr

  Short-cut for an auto pointer.


Public Member Functions

• PersE164Item (const Oid &oid=Oid())

  Constructor with optional object id.


• PersE164Item (const PersE164Item &rhs)

  Copy constructor: copy create the assigned E.164 resources.


• PersE164Item & operator= (const PersE164Item &rhs)

  Assignment operator: copy create the assigned E.164 resources.


• ~PersE164Item ()

  Destructor: delete the assigned E.164 resources.


• Type type () const

  The type of the product item.


• AutoPtr clone () const

  Virtual copy construction.


• std::string personalization () const

  Get the personalized resource number.


• bool canConfig () const

  The configuration type of personalized E.164 item.


• void assign (const E164Resource &e164)

  Assign an E.164 resource.


• const Resource * resource () const

  Access to the assigned resource.


• const Resource * oldResource () const

  Access to the old assigned resource.


• const E164Resource * e164Resource () const

  Get assigned E.164 resource.


Static Public Attributes

• static const Type type_

  The product item type: PiType::piE164Item.


Private Member Functions

• PersProductItem * clone_ () const

  Internal virtual copy constructor.


• Resource * resource ()

  Non-const access to the assigned resource.


• Resource * oldResource ()

  Non-const access to the previous assigned resource.


• Resource * createResource (const Resource::Oid &resourceId)

Database operations:

For E.164 items, there are no personalization specific data to read:
all functions just wrap to the respective members of PersResource.

• bool readSpecific (const OSB_DB::Session &session)

  Read a E.164 item from the database.


• bool insSpecific (const OSB_DB::Session &session)

  Insert a E.164 item from the database.


• bool updSpecific (const OSB_DB::Session &session)

  Update a E.164 item from the database.


• bool delSpecific (const OSB_DB::Session &session)

  Delete a E.164 item from the database.


Private Attributes

• E164Resource * pE164_

  Pointer to the assigned E.164 resource.


• E164Resource * pOldE164_

  Pointer to the previously assigned E.164 resource.


---

Member Typedef Documentation

typedef std::auto_ptr<PersE164Item> OSB_LIB::PersE164Item::AutoPtr

Short-cut for an auto pointer.

For details see quality manual, implementation patterns: Virtual copy construction.

Reimplemented from OSB_LIB::PersResource.

Definition at line 72 of file e164item.h.

---

Constructor & Destructor Documentation

OSB_LIB::PersE164Item::PersE164Item

(

const Oid &

oid = Oid()

)

Constructor with optional object id.

OSB_LIB::PersE164Item::PersE164Item

(

const PersE164Item &

rhs

)

Copy constructor: copy create the assigned E.164 resources.

OSB_LIB::PersE164Item::~PersE164Item

(

)

Destructor: delete the assigned E.164 resources.

---

Member Function Documentation

void OSB_LIB::PersE164Item::assign

(

const E164Resource &

e164

)

Assign an E.164 resource.

bool OSB_LIB::PersE164Item::canConfig

(

)

const [virtual]

The configuration type of personalized E.164 item.

Returns:

true: Personalized E.164 items allow to assign a E.164 resource.

Implements OSB_LIB::PersProductItem.

AutoPtr OSB_LIB::PersE164Item::clone

(

)

const

Virtual copy construction.

For details see quality manual, implementation patterns.

Reimplemented from OSB_LIB::PersResource.

PersProductItem* OSB_LIB::PersE164Item::clone_

(

)

const [private, virtual]

Internal virtual copy constructor.

For details see quality manual, implementation patterns.

Implements OSB_LIB::PersProductItem.

Resource* OSB_LIB::PersE164Item::createResource

(

const Resource::Oid &

resourceId

)

[private]

bool OSB_LIB::PersE164Item::delSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Delete a E.164 item from the database.

Implements OSB_LIB::PersProductItem.

const E164Resource* OSB_LIB::PersE164Item::e164Resource

(

)

const

Get assigned E.164 resource.

Returns:

The assigned E.164 resource, it may be 0.

bool OSB_LIB::PersE164Item::insSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Insert a E.164 item from the database.

Implements OSB_LIB::PersProductItem.

Resource* OSB_LIB::PersE164Item::oldResource

(

)

[private, virtual]

Non-const access to the previous assigned resource.

Returns:

A pointer to the previous assigned resource. It is 0 if no old resource is assigned.

Implements OSB_LIB::PersResource.

const Resource* OSB_LIB::PersE164Item::oldResource

(

)

const [virtual]

Access to the old assigned resource.

Returns:

A pointer to the old assigned resource, it is 0 if no old resource is assigned.

Implements OSB_LIB::PersResource.

PersE164Item& OSB_LIB::PersE164Item::operator=

(

const PersE164Item &

rhs

)

Assignment operator: copy create the assigned E.164 resources.

std::string OSB_LIB::PersE164Item::personalization

(

)

const [virtual]

Get the personalized resource number.

Returns:

E164Resource::phoneNumber() if a E.164 resource is assigned, else an empty string.

Reimplemented from OSB_LIB::PersResource.

bool OSB_LIB::PersE164Item::readSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Read a E.164 item from the database.

Implements OSB_LIB::PersProductItem.

Resource* OSB_LIB::PersE164Item::resource

(

)

[private, virtual]

Non-const access to the assigned resource.

Returns:

A pointer to the assigned resource. It is 0 if no resource is assigned.

Implements OSB_LIB::PersResource.

const Resource* OSB_LIB::PersE164Item::resource

(

)

const [virtual]

Access to the assigned resource.

Returns:

A pointer to the assigned resource, it is 0 if no resource is assigned.

Implements OSB_LIB::PersResource.

Type OSB_LIB::PersE164Item::type

(

)

const [virtual]

The type of the product item.

The function returns the type of the product item. It is needed for only one reason: Corba clients must provide a configuration window that depends on the actual type.

No appropriate design can be provided: Unless on-line clients use the real product item type through-out the whole live cycle of an object, there must be a way to determine the actual type of a product item. No matter how clever we make our design, for on-line clients there will always be one step where they need to determine a product item's type in a switch-like statement. For this step I personally perfer to work with an enumeration type (and compiler warnings) rather than relying on dynamic casts (where errors can be detected only during run-time).

Remarks:

Derived classes declare the function private.

Implements OSB_LIB::ProductItemBase.

bool OSB_LIB::PersE164Item::updSpecific

(

const OSB_DB::Session &

session

)

[private, virtual]

Update a E.164 item from the database.

Implements OSB_LIB::PersProductItem.

---

Member Data Documentation

E164Resource* OSB_LIB::PersE164Item::pE164_ [private]

Pointer to the assigned E.164 resource.

Definition at line 172 of file e164item.h.

E164Resource* OSB_LIB::PersE164Item::pOldE164_ [private]

Pointer to the previously assigned E.164 resource.

Definition at line 174 of file e164item.h.

const Type OSB_LIB::PersE164Item::type_ [static]

The product item type: PiType::piE164Item.

Definition at line 69 of file e164item.h.

---

The documentation for this class was generated from the following file:

• e164item.h

---
