OSB_LIB::StatusRequest Class Reference

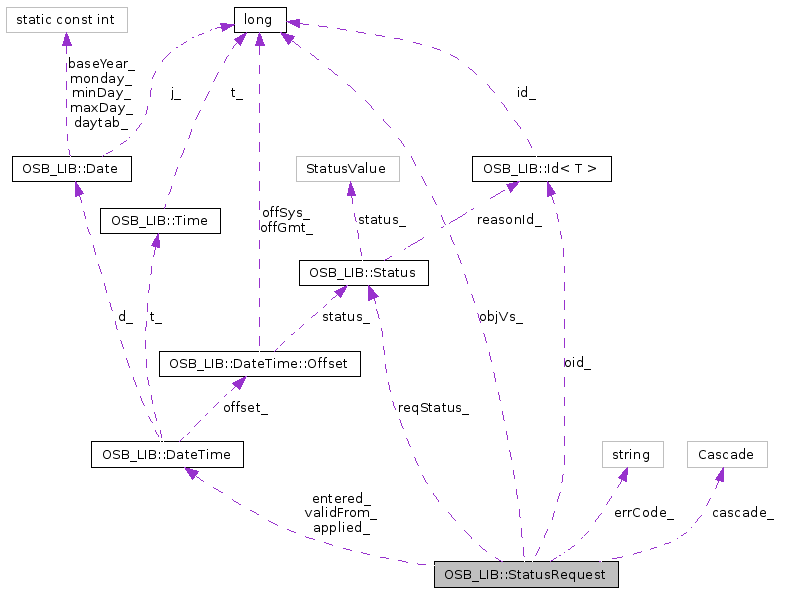

Collaboration diagram for OSB_LIB::StatusRequest:

[legend]List of all members.

Detailed Description

Preferred activation status.

The class describes the request to change the perferred activation status of a contract related classes.

Definition at line 78 of file statusrequest.h.

Public Types

typedef Id< StatusRequest > Oid
Typesave unique identifier, link to database table.
cscdNone = 0
No cascading of status request.
cscdOwner = 1
Owner of cascading status request.
cscdByParent = 2
Status request cascaded by parent.
enum Cascade { cscdNone = 0, cscdOwner = 1, cscdByParent = 2 }
Type of cascade flag. More...

Public Member Functions

StatusRequest (const Oid &oid=Oid())
Constructor with optional object id.
StatusRequest (const StatusValue s, const StatusReason::Oid &r)
Construct with requested status and reason.
GeValidFrom geValidFrom () const
Get predicate for greater-equal comparision of validFrom().
void read (const OSB_DB::Session &session)
Read the status request from the database.
void updApplied (const OSB_DB::Session &session, bool noWait)
Mark the request as applied.

Get data members:

const Oid oid () const
Get the id of the status request.
const Status & status () const
Requested status and reason of entity.
const StatusValue reqStatus () const
Requested status of entity.
const StatusReason::Oid reason () const
Reason for the requested status.
Cascade cascade () const
Flag if the request is cascaded.
const DateTime & validFrom () const
Date and time when the requested status becomes valid.
const DateTime & applied () const
Date and time when the requested status was applied.
const DateTime & entered () const
Date and time when the status request was entered.
const std::string & errCode () const
The code of the first encountered error during processing.

Set data members:

void setReqStatus (const Status &status)
Set the requested status and reason.
void setCascade (Cascade cascade)
Set the cascading flag, see cascade() for details.
void setValidFrom (const DateTime &validFrom)
Set date and time for the requested status.

Private Member Functions

void read (const OSB_DB::Session &session, bool lockFirst)
Read the status request from the database.
bool remove (const OSB_DB::Session &session)
Remove the status request from the database.
void lock (const OSB_DB::Session &session, bool noWait) const
Lock a request in the database.
void incObjVs (const OSB_DB::Session &session)
Increment the object version by 1.

Static Private Member Functions

static void lock (const OSB_DB::Session &session, const Oid &id, bool noWait)
Lock a request in the database.
static void handleObjectStatus (ObjectStatus os, const Oid &id)
Evalute the object status of a request.

Private Attributes

Oid oid_
Unique identification: database link.
long objVs_
The object version of the status request.
Status reqStatus_
Requested status of entity.
Cascade cascade_
Cascade flag, see cascade for details.
DateTime validFrom_
Date and time when the requested status becomes valid.
DateTime applied_
Date and time when the requested status was applied.
DateTime entered_
Date and time when the status request was entered.
std::string errCode_
The code of the first encountered error during processing.

Friends

class OSB_DB::StatusRequestGw
Allow to set the object id.
class RequestHandler
Allow locking, removal and to set applied, error code.
struct ::StatusRequestRow
Allow to set all data members.

Classes

class GeValidFrom
Predicate: compare status requests by >= validFrom(). More...

Member Typedef Documentation

typedef Id<StatusRequest> OSB_LIB::StatusRequest::Oid

Typesave unique identifier, link to database table.

Definition at line 88 of file statusrequest.h.

Member Enumeration Documentation

enum OSB_LIB::StatusRequest::Cascade

Type of cascade flag.

See cascade() for details.

Enumerator:

cscdNone	No cascading of status request.
cscdOwner	Owner of cascading status request.
cscdByParent	Status request cascaded by parent.

Definition at line 98 of file statusrequest.h.

Constructor & Destructor Documentation

OSB_LIB::StatusRequest::StatusRequest ( const Oid & oid = Oid() ) [explicit]

Constructor with optional object id.

OSB_LIB::StatusRequest::StatusRequest	(	const StatusValue	s,
		const StatusReason::Oid &	r
	)

Construct with requested status and reason.

Member Function Documentation

const DateTime& OSB_LIB::StatusRequest::applied ( ) const

Date and time when the requested status was applied.

StatusRequest::Cascade OSB_LIB::StatusRequest::cascade ( ) const [inline]

Flag if the request is cascaded.

The flag is used only for the initial activation, i.e., created to activated; else it is silently ignored.

Definition at line 478 of file statusrequest.h.

References cascade_.

const DateTime& OSB_LIB::StatusRequest::entered ( ) const

Date and time when the status request was entered.

const std::string& OSB_LIB::StatusRequest::errCode ( ) const

The code of the first encountered error during processing.

It is empty if the request was processed without errors.

GeValidFrom OSB_LIB::StatusRequest::geValidFrom ( ) const

Get predicate for greater-equal comparision of validFrom().

static void OSB_LIB::StatusRequest::handleObjectStatus	(	ObjectStatus	os,
		const Oid &	id
	)			`[static, private]`

Evalute the object status of a request.

Parameters:

	os	Object status to evaluate.
	id	The id of the request for which os is valid.

Exceptions:

	ObjectDeleted
	ObjectModified
	ObjectBusy	if noWait is true and the request is locked by another database session.

void OSB_LIB::StatusRequest::incObjVs ( const OSB_DB::Session & session ) [private]

Increment the object version by 1.

Parameters:

session

Database session to use.

Exceptions:

OsbException

(internal error) if the update of the object version in the database fails.

The function should be used only after a successful call of a lock() function.

void OSB_LIB::StatusRequest::lock	(	const OSB_DB::Session &	session,
		bool	noWait
	)			const `[private]`

Lock a request in the database.

Parameters:

	session	Database session to use.
	noWait	Don't wait for database locks?

Exceptions:

OsbException

from handleObjectStatus().

static void OSB_LIB::StatusRequest::lock	(	const OSB_DB::Session &	session,
		const Oid &	id,
		bool	noWait
	)			`[static, private]`

Lock a request in the database.

Parameters:

	session	Database session to use.
	id	The object id of the request to lock.
	noWait	Don't wait for database locks?

Exceptions:

OsbException

from handleObjectStatus(), (ObjectModified is not applicable).

const StatusRequest::Oid OSB_LIB::StatusRequest::oid ( ) const [inline]

Get the id of the status request.

Definition at line 468 of file statusrequest.h.

References oid_.

Referenced by OSB_LIB::StatusRequests::Cmp::operator()().

void OSB_LIB::StatusRequest::read	(	const OSB_DB::Session &	session,
		bool	lockFirst
	)			`[private]`

Read the status request from the database.

Parameters:

	session	Database session to use.
	lockFirst	Flag to lock the request before reading.

Exceptions:

	OsbException	if the request does not exist in the database.
	OsbException	from handleObjectStatus() if lockFirst is true.

void OSB_LIB::StatusRequest::read ( const OSB_DB::Session & session )

Read the status request from the database.

Parameters:

session

Database session to use.

Exceptions:

OsbException

if the request does not exist in the database.

const StatusReason::Oid OSB_LIB::StatusRequest::reason ( ) const

Reason for the requested status.

bool OSB_LIB::StatusRequest::remove ( const OSB_DB::Session & session ) [private]

Remove the status request from the database.

Parameters:

session

Database session to use.

Returns:: true if was removed from the database by the call to this function, else false.

Exceptions:

OsbException

from incObjVs().

const StatusValue OSB_LIB::StatusRequest::reqStatus ( ) const

Requested status of entity.

void OSB_LIB::StatusRequest::setCascade ( Cascade cascade )

Set the cascading flag, see cascade() for details.

Use cscdOwner to request a cascading initial activation, cscdByParent is used internally by the contractual entities.

void OSB_LIB::StatusRequest::setReqStatus ( const Status & status )

Set the requested status and reason.

void OSB_LIB::StatusRequest::setValidFrom ( const DateTime & validFrom )

Set date and time for the requested status.

const Status & OSB_LIB::StatusRequest::status ( ) const [inline]

Requested status and reason of entity.

Definition at line 473 of file statusrequest.h.

References reqStatus_.

void OSB_LIB::StatusRequest::updApplied	(	const OSB_DB::Session &	session,
		bool	noWait
	)

Mark the request as applied.

Parameters:

	session	Database session to use.
	noWait	Don't wait for database locks?

Exceptions:

OsbException

from lock(const OSB_DB::Session&, bool) const, see there.

When calling the function, applied_ and errCode_ must be set to appropriate values.

const DateTime & OSB_LIB::StatusRequest::validFrom ( ) const [inline]

Date and time when the requested status becomes valid.

Definition at line 483 of file statusrequest.h.

References validFrom_.

Referenced by OSB_LIB::StatusRequests::Cmp::operator()(), and OSB_LIB::StatusRequest::GeValidFrom::operator()().

Friends And Related Function Documentation

friend struct ::StatusRequestRow [friend]

Allow to set all data members.

Definition at line 84 of file statusrequest.h.

friend class OSB_DB::StatusRequestGw [friend]

Allow to set the object id.

Definition at line 80 of file statusrequest.h.

friend class RequestHandler [friend]

Allow locking, removal and to set applied, error code.

Definition at line 82 of file statusrequest.h.

Member Data Documentation

DateTime OSB_LIB::StatusRequest::applied_ [private]

Date and time when the requested status was applied.

Definition at line 299 of file statusrequest.h.

Cascade OSB_LIB::StatusRequest::cascade_ [private]

Cascade flag, see cascade for details.

Definition at line 295 of file statusrequest.h.

Referenced by cascade().

DateTime OSB_LIB::StatusRequest::entered_ [private]

Date and time when the status request was entered.

Definition at line 301 of file statusrequest.h.

std::string OSB_LIB::StatusRequest::errCode_ [private]

The code of the first encountered error during processing.

Definition at line 303 of file statusrequest.h.

long OSB_LIB::StatusRequest::objVs_ [private]

The object version of the status request.

Definition at line 291 of file statusrequest.h.

Oid OSB_LIB::StatusRequest::oid_ [private]

Unique identification: database link.

Definition at line 289 of file statusrequest.h.

Referenced by oid().

Status OSB_LIB::StatusRequest::reqStatus_ [private]

Requested status of entity.

Definition at line 293 of file statusrequest.h.

Referenced by status().

DateTime OSB_LIB::StatusRequest::validFrom_ [private]

Date and time when the requested status becomes valid.

Definition at line 297 of file statusrequest.h.

Referenced by validFrom().

The documentation for this class was generated from the following file:

statusrequest.h
