OSB_LIB::SumCdr Class Reference

Inheritance diagram for OSB_LIB::SumCdr:

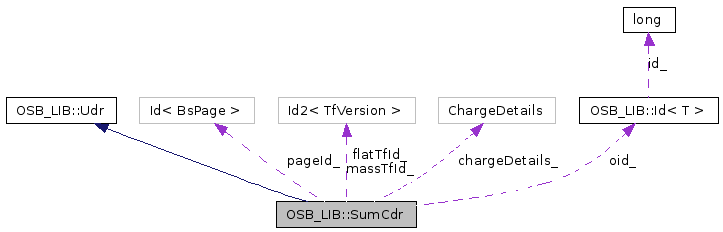

[legend]Collaboration diagram for OSB_LIB::SumCdr:

Detailed Description

Summary call details record keeps a summary of call details records that is applicable to the same tariff version in mass rating. This is the abstract base class. All concreate summary call details records will be project specific and be implemented in derived classes.

Definition at line 71 of file sumcdr.h.

Public Types

typedef Id< SumCdr > Oid
Typesave object identification and database link.

Public Member Functions

SumCdr ()
Empty default constructor.
SumCdr (const Id< BsPage > &page, const Cdr &cdr, const UsedService &us)
Set balance page and grouping criteria for a Cdr and UsedService.
virtual void add (Cdr &cdr)=0
Add a Cdr.
virtual bool match (const Cdr &cdr, const UsedService &us) const
Check if a used service matches the grouping criteria.

Database operations

There exists no member function for the summary call detail record to read itself. A fetch function to read all summary call detail records belonging to a balance sheet page is provided by class SumCdrList.

virtual void insert (const OSB_DB::Session &session)=0
Insert a summary call details record into database.
virtual bool update (const OSB_DB::Session &session)=0
Update a summary call details record in the database.

Public Attributes

Oid oid_
Database link and unique id of a SumCdr.
Id< BsPage > pageId_
Object id of the balance page that owns the SumCdr.
Id2< TfVersion > flatTfId_
Flat tariff that has been applied to Cdrs in this SumCdr.
Id2< TfVersion > massTfId_
Mass tariff applicable to this SumCdr.
ChargeDetails chargeDetails_
The new charges information of this SumCdr.

Protected Member Functions

void addMoneyInfoList (const MoneyInfoList &usMoney, MoneyInfoList &sumMoney)
Combine two MoneyInfoList.
void addUsedServiceToSumCdr (const UsedService &us)
Add a used service to a sum cdr.

Member Typedef Documentation

typedef Id<SumCdr> OSB_LIB::SumCdr::Oid

Typesave object identification and database link.

Definition at line 74 of file sumcdr.h.

Constructor & Destructor Documentation

OSB_LIB::SumCdr::SumCdr ( ) [inline]

Empty default constructor.

Definition at line 77 of file sumcdr.h.

OSB_LIB::SumCdr::SumCdr	(	const Id< BsPage > &	page,
		const Cdr &	cdr,
		const UsedService &	us
	)

Set balance page and grouping criteria for a Cdr and UsedService.

Note:: The argument cdr is currently not used.

The CDR and used service are not added to the list of CDRs.

Member Function Documentation

virtual void OSB_LIB::SumCdr::add ( Cdr & cdr ) [pure virtual]

Add a Cdr.

Parameters:

cdr

CDR to add. The summary CDR removes all used services from cdr it accounts for, i.e., match its grouping criteria.

Implemented in OSB_LIB::SumCdr01.

void OSB_LIB::SumCdr::addMoneyInfoList	(	const MoneyInfoList &	usMoney,
		MoneyInfoList &	sumMoney
	)			`[protected]`

Combine two MoneyInfoList.

Parameters:

	usMoney	The new MoneyInfoList to be added.
	sumMoney	The target MoneyInfoList to be added to.

void OSB_LIB::SumCdr::addUsedServiceToSumCdr ( const UsedService & us ) [protected]

Add a used service to a sum cdr.

Parameters:

Used service to be added.

virtual void OSB_LIB::SumCdr::insert ( const OSB_DB::Session & session ) [pure virtual]

Insert a summary call details record into database.

This function should be implemented by all concrete derived classes to insert all relevant data members into their corresponding database tables.

This function should not write the CDRs to the filesystem. See class CdrIo for this.

Make use of helper functions provided by class OSB_DB::SumCdrGw to store base class data.

Parameters:

session

Database session.

Implemented in OSB_LIB::SumCdr01.

virtual bool OSB_LIB::SumCdr::match	(	const Cdr &	cdr,
		const UsedService &	us
	)			const `[virtual]`

Check if a used service matches the grouping criteria.

Parameters:

	cdr	CDR to match (currently not used).
	us	Used service to match.

Returns:: True if the used service belongs to the summary CDR, else false.

Reimplemented in OSB_LIB::SumCdr01.

virtual bool OSB_LIB::SumCdr::update ( const OSB_DB::Session & session ) [pure virtual]

Update a summary call details record in the database.

This function should be implemented by all concrete derived classes to update a summary call details record based on the grouping criteria. In addition, it has to determine and set the object id (required by the base class update functions).

This function should not update the filesystem. See class CdrIo for this.

Make use of helper functions provided by class OSB_DB::SumCdrGw to update base class data.

Parameters:

session

Database session.
