OSB_LIB::SumCdr01 Class Reference

Inheritance diagram for OSB_LIB::SumCdr01:

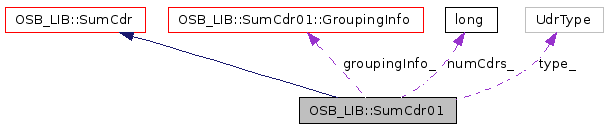

[legend]Collaboration diagram for OSB_LIB::SumCdr01:

[legend]List of all members.

Detailed Description

Summary call details record for SumCdr type 1.

Definition at line 208 of file sumcdr.h.

Public Member Functions

SumCdr01 ()
Default constructor to initalize POD members.
SumCdr01 (const Id< BsPage > &page, const Cdr &cdr, const UsedService &us)
Set balance page and grouping criteria for a Cdr and UsedService.
UdrType udrType () const
Telling what type of Udr it is.
void add (Cdr &cdr)
Add a Cdr.
bool match (const Cdr &cdr, const UsedService &us) const
Check if a used service matches the grouping criteria.

Public Attributes

long numCdrs_
Total number of calls.
GroupingInfo groupingInfo_
Grouping criteria for the PNG specification.

Private Member Functions

Database operations

virtual void insert (const OSB_DB::Session &session)
Insert a summary call details record into database.
virtual bool update (const OSB_DB::Session &session)
Update a summary call details record in the database.

Static Private Attributes

static const Udr::UdrType type_ = Udr::sumcdr01
SumCdr01 has the type of sumcdr01.

Friends

class SumCdr01Gw
Gateway need to populate SumCdr01's private members.

Classes

struct GroupingInfo
Structure for grouping info. More...

Constructor & Destructor Documentation

OSB_LIB::SumCdr01::SumCdr01 ( ) [inline]

Default constructor to initalize POD members.

Definition at line 218 of file sumcdr.h.

OSB_LIB::SumCdr01::SumCdr01	(	const Id< BsPage > &	page,
		const Cdr &	cdr,
		const UsedService &	us
	)

Set balance page and grouping criteria for a Cdr and UsedService.

The CDR and used service are not added to the list of CDRs.

Member Function Documentation

void OSB_LIB::SumCdr01::add ( Cdr & cdr ) [virtual]

Add a Cdr.

Parameters:

cdr

CDR to add. The summary CDR removes all used services from cdr it accounts for, i.e., match its grouping criteria.

Implements OSB_LIB::SumCdr.

virtual void OSB_LIB::SumCdr01::insert ( const OSB_DB::Session & session ) [private, virtual]

Insert a summary call details record into database.

This function should be implemented by all concrete derived classes to insert all relevant data members into their corresponding database tables.

This function should not write the CDRs to the filesystem. See class CdrIo for this.

Make use of helper functions provided by class OSB_DB::SumCdrGw to store base class data.

Parameters:

session

Database session.

Implements OSB_LIB::SumCdr.

bool OSB_LIB::SumCdr01::match	(	const Cdr &	cdr,
		const UsedService &	us
	)			const `[virtual]`

Check if a used service matches the grouping criteria.

Parameters:

	cdr	CDR to match (currently not used).
	us	Used service to match.

Returns:: True if the used service belongs to the summary CDR, else false.

Reimplemented from OSB_LIB::SumCdr.

UdrType OSB_LIB::SumCdr01::udrType ( ) const [virtual]

Telling what type of Udr it is.

Implements OSB_LIB::Udr.

virtual bool OSB_LIB::SumCdr01::update ( const OSB_DB::Session & session ) [private, virtual]

Update a summary call details record in the database.

This function should be implemented by all concrete derived classes to update a summary call details record based on the grouping criteria. In addition, it has to determine and set the object id (required by the base class update functions).

This function should not update the filesystem. See class CdrIo for this.

Make use of helper functions provided by class OSB_DB::SumCdrGw to update base class data.

Parameters:

session

Database session.
