OSB_LIB::TpsVersion Class Reference

Inheritance diagram for OSB_LIB::TpsVersion:

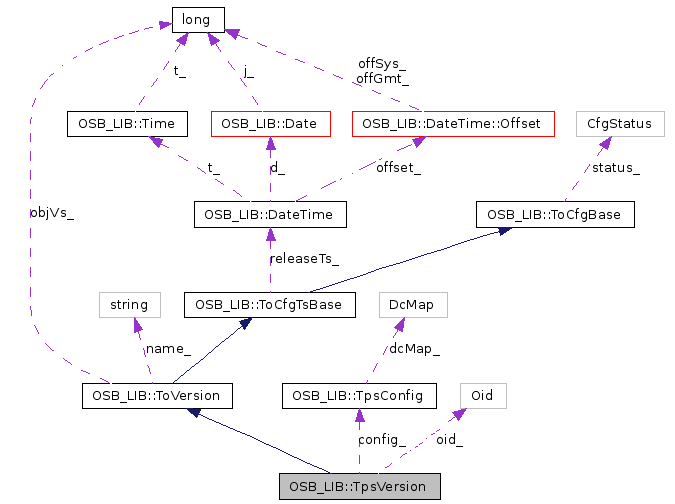

[legend]Collaboration diagram for OSB_LIB::TpsVersion:

[legend]List of all members.

---

Detailed Description

Class TpsVersion.

In this class, it store all of information about tariff period system version attributes and configuration. It also provide fucntions to access and change those attributes and configuration.

Definition at line 760 of file tariffperiod.h.

Public Types

• typedef Id2< TpsVersion > Oid

  Type of object id of tariff period system version.


Public Member Functions

• TpsVersion (const Oid &oid=Oid())

  Default constructor with optional object id.


• TpsVersion (const TpSystem::Oid &tpsId)

  Constructor for a new TPS version.


• const Oid & oid () const

  Get object id.


• TpSystem::Oid tpsId () const

  Get the tariff period system id.


• const TpsConfig & config () const

  Read access to the switch times.


• TariffPeriod::Oid getTp (const DateTime &ts) const

  Determine the tariff period for a time-stamp.


• void supportedTp (std::set< TariffPeriod::Oid > &tpOids) const

  Retrieve all tariff periods supported.


• void setConfig (const TpsConfig &cfg)

  Set the configuration.


• bool read (const OSB_DB::Session &session)

  Read a tariff period system version from database.


Private Member Functions

Modifying database operations:

• bool insert (const OSB_DB::Session &session)

  Insert a tariff period system version into database.


• bool remove (const OSB_DB::Session &session)

  Remove a tariff period system version from database.


• bool update (const OSB_DB::Session &session)

  Update a tariff period system version in the database.


Status changes:

• bool freeze (const OSB_DB::Session &session, OsbErrors &errors)

  Set the status from editable to standby.


• bool release (const OSB_DB::Session &session, OsbErrors &errors)

  Set the status from standby to release.


• bool revoke (const OSB_DB::Session &session, OsbErrors &errors)

  Set the status from release to standby.


• bool unfreeze (const OSB_DB::Session &session, OsbErrors &errors)

  Set the status from standby to editable.


Private Attributes

• Oid oid_

  Unique object id and database link.


• TpsConfig config_

  Configuration: list of switch-over times.


Friends

• struct OSB_DB::TpsVersionGw

  Gateway need to populate data members.


• class TariffCatalogue

  Tariff Catalogue is the only object that is allow to invoke the private functions of this class.


---

Member Typedef Documentation

typedef Id2<TpsVersion> OSB_LIB::TpsVersion::Oid

Type of object id of tariff period system version.

Definition at line 771 of file tariffperiod.h.

---

Constructor & Destructor Documentation

OSB_LIB::TpsVersion::TpsVersion

(

const Oid &

oid = Oid()

)

[explicit]

Default constructor with optional object id.

OSB_LIB::TpsVersion::TpsVersion

(

const TpSystem::Oid &

tpsId

)

[explicit]

Constructor for a new TPS version.

---

Member Function Documentation

const TpsConfig& OSB_LIB::TpsVersion::config

(

)

const

Read access to the switch times.

bool OSB_LIB::TpsVersion::freeze	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[private, virtual]

Set the status from editable to standby.

In order to set the status from editable to standby, the following criteria must be fulfilled:

• Object must be in status editable.
• All tariff period version must be freezed.
• The pair of "day class/switch time" must be unique.
• Switch time 00:00:00 for each day class must be defined.
• Everyday of the week is covered.
• Each day is covered only once.

Parameters:

	session	Database session to use.
	errors	Container for errors and warnings.

Returns:

true if success else false.

Implements OSB_LIB::ToCfgBase.

TariffPeriod::Oid OSB_LIB::TpsVersion::getTp

(

const DateTime &

ts

)

const

Determine the tariff period for a time-stamp.

Parameters:

ts

Time-stamp for which to determine the tariff period.

Returns:

The id of the tariff period for ts. It is not set if the tariff period can not be determined.

bool OSB_LIB::TpsVersion::insert

(

const OSB_DB::Session &

session

)

[private]

Insert a tariff period system version into database.

A new object is inserted. All attributes of the object has been set except object id. The object id will only be set by the function if the insertion is successful.

Parameters:

session

Database session.

Returns:

true if success else false.

Exceptions:

OsbException

for the following errors: Duplicate name.

const Oid& OSB_LIB::TpsVersion::oid

(

)

const

Get object id.

bool OSB_LIB::TpsVersion::read

(

const OSB_DB::Session &

session

)

Read a tariff period system version from database.

The object id is used to gather other info from database and then populate all the object's data members.

Parameters:

session

Database session.

Returns:

true if success else false.

bool OSB_LIB::TpsVersion::release	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[private, virtual]

Set the status from standby to release.

In order to set the status from standby to release, the following criteria must be fulfilled:

• Object must be in status standby.
• Release date must be in the future.
• All tariff period version configured must be released.
• Release date of tariff period version must be earlier than the release date of tariff period system version.

Parameters:

	session	Database session to use.
	errors	Container for errors and warnings.

Returns:

true if success else false.

Implements OSB_LIB::ToCfgBase.

bool OSB_LIB::TpsVersion::remove

(

const OSB_DB::Session &

session

)

[private]

Remove a tariff period system version from database.

After the function call, oid of this object will be unset to indicate that there is no such entry anymore in the database.

Parameters:

session

Database session.

Returns:

true if success else false.

Exceptions:

OsbException

for the following errors: Object not found. Object has been modified. Version object exists.

bool OSB_LIB::TpsVersion::revoke	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[private, virtual]

Set the status from release to standby.

In order to set the status from release to standby, the following criteria must be fulfilled:

• Object must be in status released.
• If refer by a released tariff system version, must have a replacement and the grace period has expired.

Parameters:

	session	Database session to use.
	errors	Container for errors and warnings.

Returns:

true if success else false.

Implements OSB_LIB::ToCfgBase.

void OSB_LIB::TpsVersion::setConfig

(

const TpsConfig &

cfg

)

Set the configuration.

Parameters:

cfg

New configuration to use.

Exceptions:

OsbException

if status is not editable.

void OSB_LIB::TpsVersion::supportedTp

(

std::set< TariffPeriod::Oid > &

tpOids

)

const

Retrieve all tariff periods supported.

Parameters:

tpOids

Container for the object id of the tariff periods supported.

TpSystem::Oid OSB_LIB::TpsVersion::tpsId

(

)

const

Get the tariff period system id.

bool OSB_LIB::TpsVersion::unfreeze	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			[private, virtual]

Set the status from standby to editable.

In order to set the status from standby to editable, the following criteria must be fulfilled:

• Object must be in status standby.
• If refer by a freezed tariff system version, must have a replacement.

Parameters:

	session	Database session to use.
	errors	Container for errors and warnings.

Returns:

true if success else false.

Implements OSB_LIB::ToCfgBase.

bool OSB_LIB::TpsVersion::update

(

const OSB_DB::Session &

session

)

[private]

Update a tariff period system version in the database.

Old entry in the database indentify by the object id will be replaced with the new data from the passed in, upated object.

Parameters:

session

Database session used.

Returns:

true if success else false.

Exceptions:

OsbException

for the following erros: Name too long. Object not found. Object has been modified.

---

Friends And Related Function Documentation

friend struct OSB_DB::TpsVersionGw [friend]

Gateway need to populate data members.

Definition at line 762 of file tariffperiod.h.

friend class TariffCatalogue [friend]

Tariff Catalogue is the only object that is allow to invoke the private functions of this class.

Definition at line 768 of file tariffperiod.h.

---

Member Data Documentation

TpsConfig OSB_LIB::TpsVersion::config_ [private]

Configuration: list of switch-over times.

Definition at line 956 of file tariffperiod.h.

Oid OSB_LIB::TpsVersion::oid_ [private]

Unique object id and database link.

Definition at line 954 of file tariffperiod.h.

---

The documentation for this class was generated from the following file:

• tariffperiod.h

---
