OSB_LIB::TsVersion Class Reference

Inheritance diagram for OSB_LIB::TsVersion:

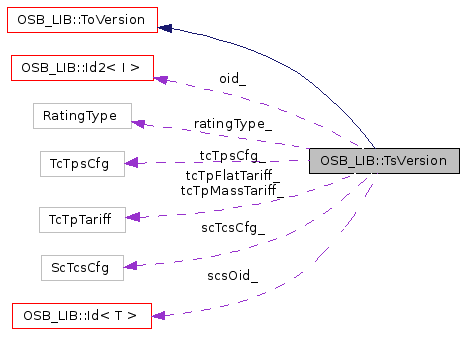

[legend]Collaboration diagram for OSB_LIB::TsVersion:

Detailed Description

Tariff system versions.

This class has information about the configuration of each version of the tariff system. The configuration includes the service class system that it can support, the tariff classification system of each service class, tariff period system of each tariff class and the tariff of each tariff class, tariff period tuple.

Definition at line 272 of file tariffsystem.h.

Database operations

bool read (const OSB_DB::Session &session)
Read a tariff system version from database.
bool insert (const OSB_DB::Session &session)
Insert a tariff system version into database.
bool update (const OSB_DB::Session &session)
Update a tariff system version in the database.
bool remove (const OSB_DB::Session &session)
Remove a tariff system version from database.

Public Types

typedef Id2< TsVersion > Oid
typedef Id< ScSystem > ScsOid
flatRating = 1
sumRating = 2
unknownRating = -1
Unknown rating type.
enum RatingType { flatRating = 1, sumRating = 2, unknownRating = -1 }
Type of rating this tariff system supports. More...

Public Member Functions

TsVersion (const Oid &oid=Oid(), RatingType type=flatRating)
Default constructor with optional object id and rating type.
TsVersion (const TariffSystem::Oid &tsId, RatingType type=flatRating)
Construct from TS object id and optional rating type.
const Oid & oid () const
Get object id of TsVersion.
TariffSystem::Oid tsId () const
Get id of tariff system.
RatingType ratingType () const
Get the type of rating supported.

Get configuration

const ScsOid & scsId () const
Get version id of service class system.
const ScTcsCfg & scTcsCfg () const
Get serivce class, tariff classification system configuration.
const TcTpsCfg & tcTpsCfg () const
Get tariff class, tariff period system configuration.
const TcTpTariff & tcTpFlatTariff () const
Get flat tariff of tariff class, tariff period tuple.
const TcTpTariff & tcTpMassTariff () const
Get mass tariff of tariff class, tariff period tuple.

Get configuration details

const TcSystem::Oid & getTcSystem (const ServiceClass::Oid &scId) const
Get the tariff classification based on service class.
const TpSystem::Oid & getTpSystem (const TariffClass::Oid &tcId) const
Get the tariff period system based on tariff class.
const Tariff::Oid & getFlatTariff (const TariffClass::Oid &tcId, const TariffPeriod::Oid &tpId) const
Get the flat rating tariff based on tariff period and tariff class.
const Tariff::Oid & getMassTariff (const TariffClass::Oid &tcId, const TariffPeriod::Oid &tpId) const
Get the mass rating tariff based on tariff period and tariff class.

Get supported tariff objects

void getSupportedScOid (std::set< ServiceClass::Oid > &scOids) const
Get all service classes supported by the tariff system.
void getSupportedTcOid (std::set< TariffClass::Oid > &tcOids) const
Get all tariff classes supported by the tariff system.
void getSupportedTpOid (std::set< TariffPeriod::Oid > &tpOids) const
Get all tariff period supported by the tariff system.
void getSupportedTcTpOid (std::set< TcTp > &tcTpOids) const
Get all tariff class, tariff period pairs supported by the tariff system.

Set configuration

void copyCfg (const TsVersion &src)
Get configuration from another TS version.
void setRatingType (const RatingType rt)
Set the rating type.
void setScsId (const ScsOid &scsId)
Set service class system.
void setScTcsCfg (const ScTcsCfg &scTcsCfg)
Set the TC system for service classes.
void setScTcsCfg (const ServiceClass::Oid &scId, const TcSystem::Oid &tcsId)
Set a service class, tariff classification system configuration to map.
void setTcTpsCfg (const TcTpsCfg &tcTpsCfg)
Set the TP system for tariff classes.
void setTcTpsCfg (const TariffClass::Oid &tcOid, const TpSystem::Oid &tpsOid)
Set tariff class, tariff period system configuration to map.
void setFlatTariff (const TcTpTariff &flatTf)
Set the flat tariff for tariff classes and periods.
void setTcTpFlatTariff (const TcTp &tcTp, const Tariff::Oid &tariffOid)
Set a flat tariff of a tariff class, tariff period tuple to map.
void setMassTariff (const TcTpTariff &massTf)
Set the mass tariff for tariff classes and periods.
void setTcTpMassTariff (const TcTp &tcTp, const Tariff::Oid &tariffOid)
Set a mass tariff of a tariff class, tariff period tuple to map.

Static Public Member Functions

static long rtToLong (const RatingType type)
static RatingType longToRt (const long type)

Private Member Functions

void repopulateScTcsConfig ()
Repopulate the SC-TCS configuration.
void repopulateTcTpsConfig ()
Repopulate the TC-TPS configuration.
void repopulateTcTpFlatTariff ()
Repopulate the TC-TP-simTF configuration.
void repopulateTcTpMassTariff ()
Repopulate the TC-TP-massTF configuration.

Status changes

bool freeze (const OSB_DB::Session &session, OsbErrors &errors)
Set status of the version to standby mode.
bool release (const OSB_DB::Session &session, OsbErrors &errors)
Set status of configuration to released mode.
bool revoke (const OSB_DB::Session &session, OsbErrors &errors)
Set status from released to standby mode.
bool unfreeze (const OSB_DB::Session &session, OsbErrors &errors)
Set status to from standby to editable.

Private Attributes

Oid oid_
Unique id and version of tariff system.
ScsOid scsOid_
Unique id and version of service class system.
RatingType ratingType_
Type of rating supported.
ScTcsCfg scTcsCfg_
Service class, tariff classification system configuration.
TcTpsCfg tcTpsCfg_
Tariff class, tariff period system configuration.
TcTpTariff tcTpFlatTariff_
Flat Tariff of tariff class, tariff period tuple.
TcTpTariff tcTpMassTariff_
Mass Tariff of tariff class, tariff period tuple.

Friends

struct OSB_DB::TsVersionGw
Gateway need to populate private data memebers.
class TariffCatalogue
Allow tariff catalogue to call private member functions.

Member Typedef Documentation

typedef Id2<TsVersion> OSB_LIB::TsVersion::Oid

Type-safe object id. Consist of unique id and version of tariff system.

Definition at line 301 of file tariffsystem.h.

typedef Id<ScSystem> OSB_LIB::TsVersion::ScsOid

Type-safe id of service class system. Consist of unique id and version number of service class system.

Definition at line 306 of file tariffsystem.h.

Member Enumeration Documentation

enum OSB_LIB::TsVersion::RatingType

Type of rating this tariff system supports.

Enumerator:

flatRating	Flat Rating: Support rating performed on one Cdr at a time.
sumRating	Summary Rating: Support rating performed on one Cdr at a time and rating performed on one SumCdr at a time.
unknownRating	Unknown rating type.

Definition at line 281 of file tariffsystem.h.

Constructor & Destructor Documentation

OSB_LIB::TsVersion::TsVersion	(	const Oid &	oid = `Oid()`,
		RatingType	type = `flatRating`
	)			`[explicit]`

Default constructor with optional object id and rating type.

OSB_LIB::TsVersion::TsVersion	(	const TariffSystem::Oid &	tsId,
		RatingType	type = `flatRating`
	)			`[explicit]`

Construct from TS object id and optional rating type.

Member Function Documentation

void OSB_LIB::TsVersion::copyCfg ( const TsVersion & src )

Get configuration from another TS version.

The class can determine which of the data members can be copied. Other than the name, status and released date, the rest of the data members will be the same as the source version.

Parameters:

src

Tariff system version to copy from.

bool OSB_LIB::TsVersion::freeze	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			`[private, virtual]`

Set status of the version to standby mode.

To set the status to standby mode, the following rules must be satisfied:

Tariff system must have exactly one service class system defined.
All service class system version must be freezed.
All tariff classification system version must be freezed.
All tariff period system version must be freezed.
The service class in the tariff system configuration must exist in the service class system version.
The tariff class in the tariff system configuration must exist in the tariff classification system version.
The tariff period in the tariff system configuration must exist in the tariff period system version.
All service classes must have a tariff classification system version defined.
All tariff classes must have a tariff period system version defined.
Each tariff class and tariff period tuple must have a tariff assigned. The above checking are done at the gateway.

Parameters:

	session	Database session.
	errors	List of errors that occur during checks.

Exceptions:

OsbException

if encountered problems in database.

Returns:: True if check is successful.

Implements OSB_LIB::ToCfgBase.

const Tariff::Oid& OSB_LIB::TsVersion::getFlatTariff	(	const TariffClass::Oid &	tcId,
		const TariffPeriod::Oid &	tpId
	)			const

Get the flat rating tariff based on tariff period and tariff class.

Parameters:

	tcId	Tariff class id.
	tpId	Tariff period id.

Returns:: The flat tariff valid for tcId and tpId.

const Tariff::Oid& OSB_LIB::TsVersion::getMassTariff	(	const TariffClass::Oid &	tcId,
		const TariffPeriod::Oid &	tpId
	)			const

Get the mass rating tariff based on tariff period and tariff class.

Parameters:

	tcId	Tariff class id.
	tpId	Tariff period id.

Returns:: The mass tariff valid for tcId and tpId.

void OSB_LIB::TsVersion::getSupportedScOid ( std::set< ServiceClass::Oid > & scOids ) const

Get all service classes supported by the tariff system.

Each tariff system supports one service class system. All service classes supported are the one included in the service class system configured.

Parameters:

scOids

Container for the service classes supported.

void OSB_LIB::TsVersion::getSupportedTcOid ( std::set< TariffClass::Oid > & tcOids ) const

Get all tariff classes supported by the tariff system.

All tariff classes supported are the ones supported by the tariff classification system configured.

Parameters:

tcOids

Container for the tariff classes supported.

void OSB_LIB::TsVersion::getSupportedTcTpOid ( std::set< TcTp > & tcTpOids ) const

Get all tariff class, tariff period pairs supported by the tariff system.

Parameters:

tcTpOids

Container for the tariff classes supported.

void OSB_LIB::TsVersion::getSupportedTpOid ( std::set< TariffPeriod::Oid > & tpOids ) const

Get all tariff period supported by the tariff system.

All tariff period supported are the ones supported by the tariff period systems configured.

Parameters:

tpOids

Container for the tariff period supported.

const TcSystem::Oid& OSB_LIB::TsVersion::getTcSystem ( const ServiceClass::Oid & scId ) const

Get the tariff classification based on service class.

Parameters:

scId

Service class id.

Returns:: The tariff classification system for scId.

const TpSystem::Oid& OSB_LIB::TsVersion::getTpSystem ( const TariffClass::Oid & tcId ) const

Get the tariff period system based on tariff class.

Parameters:

tcId

Tariff class id.

Returns:: The tariff period system for tcId.

bool OSB_LIB::TsVersion::insert ( const OSB_DB::Session & session ) [private]

Insert a tariff system version into database.

A new object is inserted. All attribute of the object has been set except object id. The object id will only be set by the function if the insertion is successful.

Parameters:

session

Database session.

Returns:: true if success else false.

Exceptions:

OsbException

for the following errors:

Duplicate name.
Name too long.

static RatingType OSB_LIB::TsVersion::longToRt ( const long type ) [static]

Change the long integer into tariff system rating type representation.

const Oid& OSB_LIB::TsVersion::oid ( ) const

Get object id of TsVersion.

RatingType OSB_LIB::TsVersion::ratingType ( ) const

Get the type of rating supported.

bool OSB_LIB::TsVersion::read ( const OSB_DB::Session & session )

Read a tariff system version from database.

The object id is used to gather other info from database and then populate the object's data members.

Parameters:

session

Database session.

Returns:: true if success else false.

bool OSB_LIB::TsVersion::release	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			`[private, virtual]`

Set status of configuration to released mode.

To change status to released mode, the following must be fulfilled:

A released version of the service class system must exist.
For all tariff classification system a version must be released.
For all tariff period system a version must be released.
The release date must be later than current date, i.e., earliest tomorrow.
Status of tariff system must be standby. The above checking are done at the gateway.

Parameters:

	session	Database session.
	errors	List of errors that occur during checks.

Exceptions:

OsbException

if encountered problems in database.

Returns:: true if rules are satisfied.

Implements OSB_LIB::ToCfgBase.

bool OSB_LIB::TsVersion::remove ( const OSB_DB::Session & session ) [private]

Remove a tariff system version from database.

After the function call, oid of this object will be unset to indicate that there is no such entry anymore in the database.

Parameters:

session

Database session.

Returns:: true if success else false.

Exceptions:

OsbException

for the following errors:

Object does not exist.
Object outdated. Object version differs.
Object not in status editable.

void OSB_LIB::TsVersion::repopulateScTcsConfig ( ) [private]

Repopulate the SC-TCS configuration.

void OSB_LIB::TsVersion::repopulateTcTpFlatTariff ( ) [private]

Repopulate the TC-TP-simTF configuration.

void OSB_LIB::TsVersion::repopulateTcTpMassTariff ( ) [private]

Repopulate the TC-TP-massTF configuration.

void OSB_LIB::TsVersion::repopulateTcTpsConfig ( ) [private]

Repopulate the TC-TPS configuration.

bool OSB_LIB::TsVersion::revoke	(	const OSB_DB::Session &	session,
		OsbErrors &	errors
	)			`[private, virtual]`

Set status from released to standby mode.

To change status from released to standby mode, the following must be satisifed:

The status must be released.
There must exist another released version of the tariff system.
Current date at which the version of the tariff system is revoked, must be more than grace period + released date of the latest released version. The above checking are done at the gateway.

Parameters:

	session	Database session.
	errors	List of errors that occur during checks.

Exceptions:

OsbException

if encountered problems in database.

Returns:: true if rules are satisfied.

Implements OSB_LIB::ToCfgBase.

static long OSB_LIB::TsVersion::rtToLong ( const RatingType type ) [static]

Change the tariff system rating type into long integer representation.

const ScsOid& OSB_LIB::TsVersion::scsId ( ) const

Get version id of service class system.

const ScTcsCfg& OSB_LIB::TsVersion::scTcsCfg ( ) const

Get serivce class, tariff classification system configuration.

void OSB_LIB::TsVersion::setFlatTariff ( const TcTpTariff & flatTf )

Set the flat tariff for tariff classes and periods.

Parameters:

flatTf

Container with tariff classes, tariff periods to change
(it needn't contain all pairs <tariff class, tariff period>).

Exceptions:

OsbException

if the status is not editable.

Sets the flat tariff for each entry in flatTf, the configuration of other pairs <tariff class, tariff period> is left unchanged.
If a pair <tariff class, tariff period> in flatTf does not exist in the configuration, the entry is silently discarded.

void OSB_LIB::TsVersion::setMassTariff ( const TcTpTariff & massTf )

Set the mass tariff for tariff classes and periods.

Parameters:

massTf

Container with tariff classes, tariff periods to change
(it needn't contain all pairs <tariff class, tariff period>).

Exceptions:

OsbException

if the status is not editable.

Sets the mass tariff for each entry in flatTf, the configuration of other pairs <tariff class, tariff period> is left unchanged.
If a pair <tariff class, tariff period> in massTf does not exist in the configuration, the entry is silently discarded.

void OSB_LIB::TsVersion::setRatingType ( const RatingType rt )

Set the rating type.

Parameters:

The rating type of the TS version.

Exceptions:

OsbException

if status is not editable

Note:: tcTpMassTariff_ is not cleared if the type changes from bundled to flat rating, the clean-up is done just before inserting or updating in the database.
This specification allows changing the rating type back and forth without the need to read the mass tariffs from the database when changing to bundled rating.

void OSB_LIB::TsVersion::setScsId ( const ScsOid & scsId )

Set service class system.

Does not update in the database. Call TariffCatalogue::updTsVersion() to save the newly assigned service class system.

Parameters:

scsId

New service class system version.

Exceptions:

OsbException

if status is not editable.

void OSB_LIB::TsVersion::setScTcsCfg	(	const ServiceClass::Oid &	scId,
		const TcSystem::Oid &	tcsId
	)

Set a service class, tariff classification system configuration to map.

Deprecated:: Use setScTcsCfg(const ScTcsCfg&) instead.

This function will either insert a new entry into the configuration or replace the old configuration with the new one. The replacement is based on the service class id of the configuration.

Parameters:

	scId	Object id of service class.
	tcsId	Object id of TC system for scId.

void OSB_LIB::TsVersion::setScTcsCfg ( const ScTcsCfg & scTcsCfg )

Set the TC system for service classes.

Parameters:

scTcsCfg

Container with service classes to change
(it needn't contain all service classes).

Exceptions:

OsbException

if the status is not editable.

Sets the TC system for each entry in scTcsCfg, the configuration of other services classes is left unchanged.
If a service class in scTcsCfg does not exist in the configuration, the entry is silently discarded.

void OSB_LIB::TsVersion::setTcTpFlatTariff	(	const TcTp &	tcTp,
		const Tariff::Oid &	tariffOid
	)

Set a flat tariff of a tariff class, tariff period tuple to map.

Deprecated:: Use setFlatTariff(const TcTpTariff&) instead.

This function will either insert a new entry into the configuration or replace the old configuration with the new one. The replacement is based on the tariff class, tariff period pair of the configuration.

Parameters:

	tcTp	Tariff class, tariff period pair.
	tariffOid	Unique id of tariff.

void OSB_LIB::TsVersion::setTcTpMassTariff	(	const TcTp &	tcTp,
		const Tariff::Oid &	tariffOid
	)

Set a mass tariff of a tariff class, tariff period tuple to map.

Deprecated:: Use setMassTariff(const TcTpTariff&) instead.

Parameters:

	tcTp	Tariff class, tariff period pair.
	tariffOid	Unique id of tariff.

void OSB_LIB::TsVersion::setTcTpsCfg	(	const TariffClass::Oid &	tcOid,
		const TpSystem::Oid &	tpsOid
	)

Set tariff class, tariff period system configuration to map.

Deprecated:: Use setTcTpsCfg(const TcTpsCfg&) instead.

This function will either insert a new entry into the configuration or replace the old configuration with the new one. The replacement is based on the tariff class id of the configuration.

Parameters:

	tcOid	Id of tariff class.
	tpsOid	Id and version of tariff period system.

void OSB_LIB::TsVersion::setTcTpsCfg ( const TcTpsCfg & tcTpsCfg )

Set the TP system for tariff classes.

Parameters:

tcTpsCfg

Container with tariff classes to change
(it needn't contain all tariff classes).

Exceptions:

OsbException

if the status is not editable.

Sets the TP system for each entry in tcTpsCfg, the configuration of other tariff classes is left unchanged.
If a tariff class in tcTpsCfg does not exist in the configuration, the entry is silently discarded.

const TcTpTariff& OSB_LIB::TsVersion::tcTpFlatTariff ( ) const

Get flat tariff of tariff class, tariff period tuple.

const TcTpTariff& OSB_LIB::TsVersion::tcTpMassTariff ( ) const

Get mass tariff of tariff class, tariff period tuple.

const TcTpsCfg& OSB_LIB::TsVersion::tcTpsCfg ( ) const

Get tariff class, tariff period system configuration.

TariffSystem::Oid OSB_LIB::TsVersion::tsId ( ) const

Get id of tariff system.
